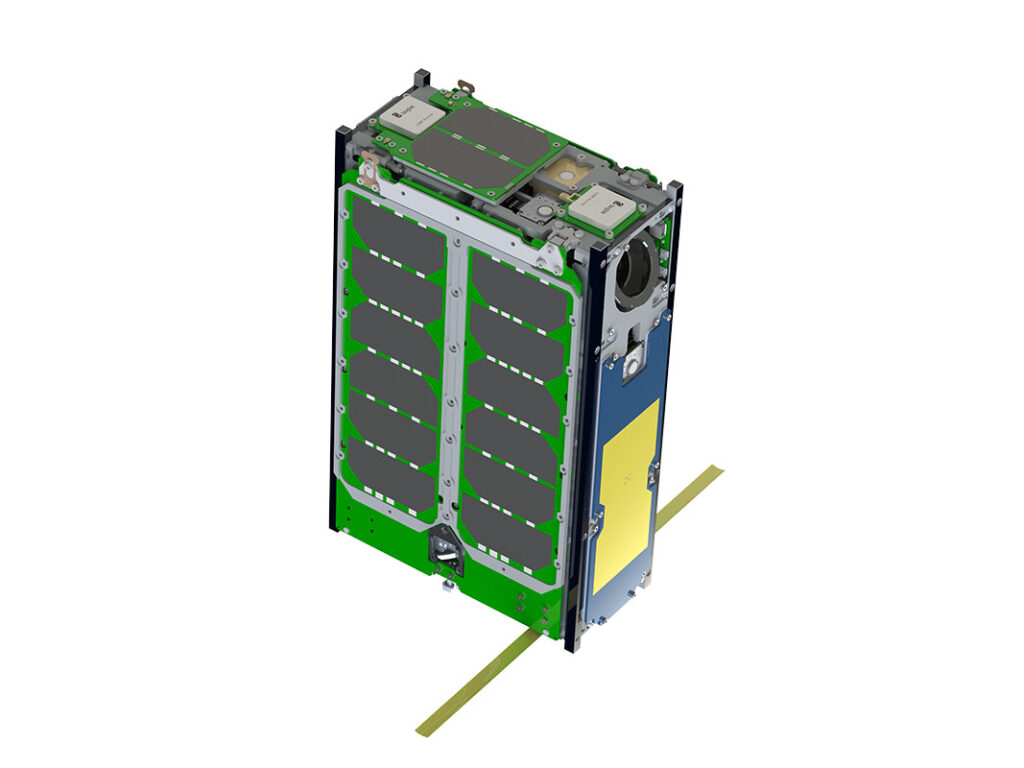

Satellite Platform SXC6 Basic (SXC6-VOL)
SPUTNIX
Spacecraft up to 12 kg · Micro class (FAA) what this means
Minimal-configuration 6U CubeSat bus maximizing payload volume up to 5U.
Typed specifications34 values
Discloses 5 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 6 kg max · mass assembled, w/o payload, not more than · datasheet p.6
- Envelope (L×W×H)
- 100 x 226.3 x 366 dimensions at rails, deployment system pressed · datasheet p.6
- Supply voltage
- 7.4 V product page
- Power consumption
- 8 W product page
- Data interface
- CAN on-board interface CAN2.0 B · datasheet p.6
- Operating temperature
- -30–60 °C datasheet p.6
- Form factor
- 6U CubeSat 6U · datasheet p.2
- Orbit
- LEO payload power and solar panel figures are specified on LEO · datasheet p.6
- Max payload mass
- 6 kg max · max mass of payload, up to (Table 1 platform comparison) · datasheet p.2
- Payload volume, U
- 3 U min · 3U+, available volume for payload not less than · datasheet p.6
- Payload envelope (L × W × H)
- 85 x 85 x 300 3U+ available volume for payload (Table 1) · datasheet p.2
- Power available to payload
- 8 W max · average power available to payload on LEO, Sun orientation us… · datasheet p.6 25 W max · peak (max available capacity of payload, up to; Table 1)
- Regulated voltages for the payload
- 5 V output voltage 5 V ±0.5 V, output current not more than 3 A · datasheet p.6
- Power generation (orbit average)
- 35 W min · peak on LEO, not less than; row is printed as 'Peak capacity … · datasheet p.6
- Battery capacity
- 79 Wh min · not less than; battery type Li-Ion 2S 5000 mAh, rated voltage… · datasheet p.6
- Attitude control
- 3-axis stabilised three-axis w/ reaction wheels, star tracker, magnetometer, an… · datasheet p.2
- Pointing accuracy
- 0.1 ° orientation control accuracy on sunny and shadow side, up to … · datasheet p.6
- Payload data downlink rate
- 57.6 kbps max · UHF command/telemetry link, AX.25 FEC; 9600 bit/s default · datasheet p.6 10 000 kbps max · X-band downlink, DVB-S2, up to
- Radio band
- UHF command radio link 435-437 MHz (amateur) or 400-401 MHz (comm… · datasheet p.6 X X-band 10.3-10.55 GHz (amateur) or 8.0-8.4 GHz (commercial), …
- Subsystems included
- solar arrays deployable solar panels, included · datasheet p.2 GNSS receiver GPS-receiver, included | X-band downlink high-speed X-band radio link, included | battery Li-Ion 2S 5000 mAh, not less than 79 Wh | EPS regulated output voltage 5 V ±0.5 V / 3 A for payload +2
- Max satellite wet mass
- 12 kg max · max mass allowed w/ payload, not more than (Table 4); Table 1… · datasheet p.6
- Deployables
- hinges for solar wings deployable solar panels included · datasheet p.2
- Deployables (as printed)
- Deployable solar panels (included) datasheet p.2
- Satellite class
- CubeSat CubeSat nanosatellite platform line · datasheet p.2
- Form factor, U (number)
- 6 U CubeSat 6U · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Form factor
- 6U
- Max payload volume
- 5U
- Mass
- 6 kg
- Dimensions
- 100х226,3x366 mm
- Available volume for payload
- 3U+
- Max mass of payload
- Up to 6,0 kg
- Power
- 8000 mW
- Supply voltage
- 5 В ±0.5 V
- Operating temperature
- -30...+60 °С
- Accuracy
- Up to 0.1°
- Battery capacity
- 79 Wh
- Battery rated voltage
- 7.4 V
- Interface
- CAN2.0 B
- Number of solar panels
- 28 pcs.
- Max. Battery Charging Current
- 5 A
- X-band frequency
- 10.3-10.55 GHz
About
The SXC6 Basic (SXC6-VOL) is a minimal-configuration version of SPUTNIX’s 6U platform, optimized to maximize available payload volume (up to 5U) for missions where bus complexity can be traded for payload capacity.
