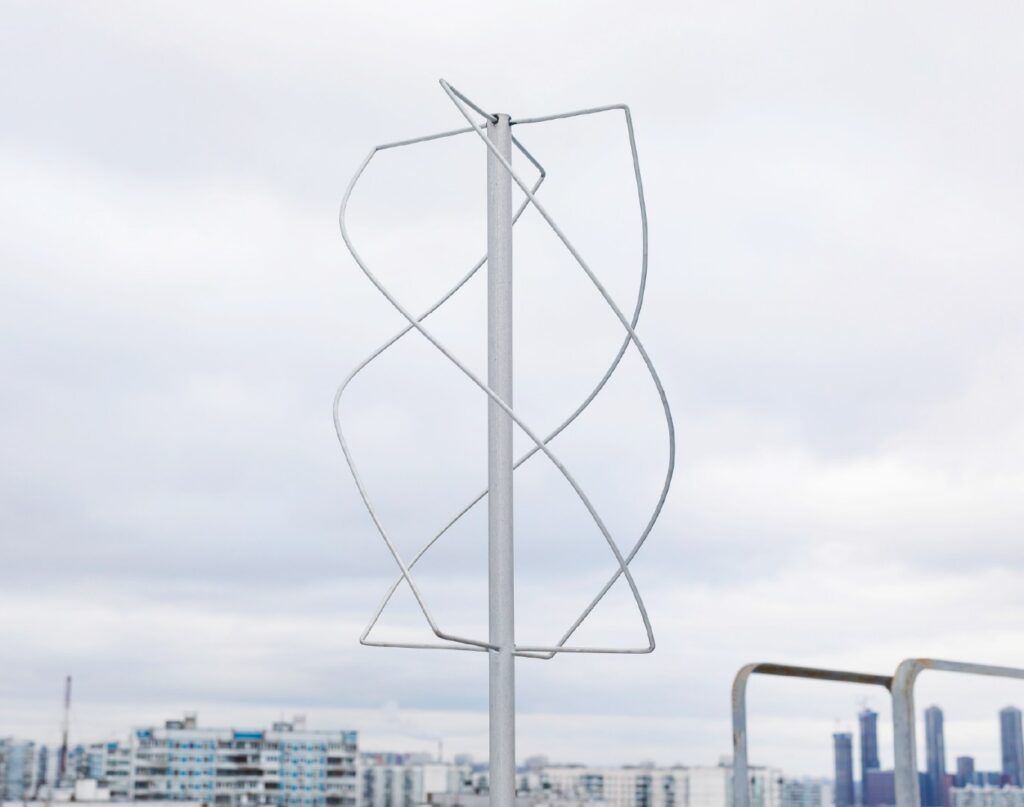

Vyunok Educational Satellite Data Reception Station
SPUTNIX
"Vyunok" is an educational ground complex for receiving spacecraft radio signals, designed for experiments by schoolchildren and students. It operates within amateur-radio VHF/UHF regulations and suits contests and educational programs.
Typed specifications3 values
Discloses 2 of 13 fields engineers filter by in this category (category median 2).
- Frequency range
- 136–146 MHz description 435–438 MHz
- Data rate
- 9 600 kbps max · description
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Type
- Educational SDR receiving station
- Frequency range
- 136–146 MHz, 435–438 MHz
- Max data rate
- ≥ 9600 bit/s
- Polarization
- RHCP (right-hand circular)
- Antenna gain at zenith
- 3–4 dBi
- Lna noise figure
- ≤ 1.6 dB (435–438 MHz)
- Protocols
- APT, LRPT, AX.25, USP (GMSK), SSTV
- Modulations
- FSK/GFSK/GMSK, BPSK, QPSK, FM, AM, SSB
- Receive chain
- SDR
About
“Vyunok” is an educational ground complex for receiving spacecraft radio signals, designed for experiments by schoolchildren and students. It operates within amateur-radio VHF/UHF regulations and suits contests and educational programs.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
