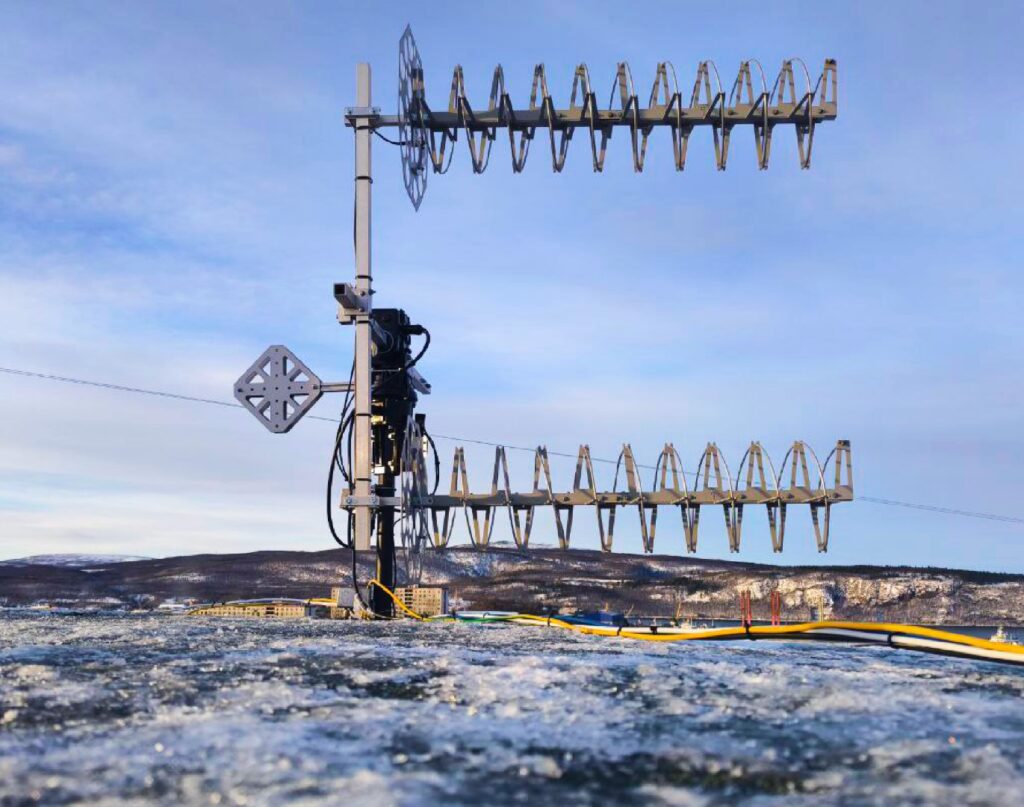

Zavitok Satellite Ground Station (M / S-L)
SPUTNIX
Satellite reception and control ground station for mission control centers and education. Receives telemetry from small spacecraft in LEO and uplinks commands. The "Zavitok-M" (SXL-GND-02-M) works in VHF/UHF; the "Zavitok-S/L" (SXL-GND-02-SL) adds an S- and L-band parabolic antenna for payload-data reception.
Typed specifications1 values
Discloses 0 of 13 fields engineers filter by in this category (category median 2).
- Power consumption
- 10 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Type
- SDR satellite ground station
- Survey antennas
- 2 × quadrifilar (VHF/UHF receive)
- Directional antennas
- 2 × helical stack (UHF RX/TX)
- Rx frequencies
- 136–146 MHz, 430–440 MHz
- Tx frequencies
- 430–440 MHz (400–402 MHz)
- Tx output power
- 10 W (40 dBm)
- Polarization
- Circular RHCP
- Lna noise figure
- ≤ 1.6 dB (435–438 MHz)
- Protocols
- APT, LRPT, AX.25, USP (GMSK), SSTV
- Modulations
- FSK/GFSK/GMSK, BPSK, QPSK, FM, AM, SSB
- S/l variant adds
- 1.6 m parabolic, S 2230–2290 / L 1690–1710 MHz, up to 4 Mbit/s
- Variants
- SXL-GND-02-M (VHF/UHF), SXL-GND-02-SL (+S/L band)
About
Satellite reception and control ground station for mission control centers and education. Receives telemetry from small spacecraft in LEO and uplinks commands. The “Zavitok-M” (SXL-GND-02-M) works in VHF/UHF; the “Zavitok-S/L” (SXL-GND-02-SL) adds an S- and L-band parabolic antenna for payload-data reception.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
