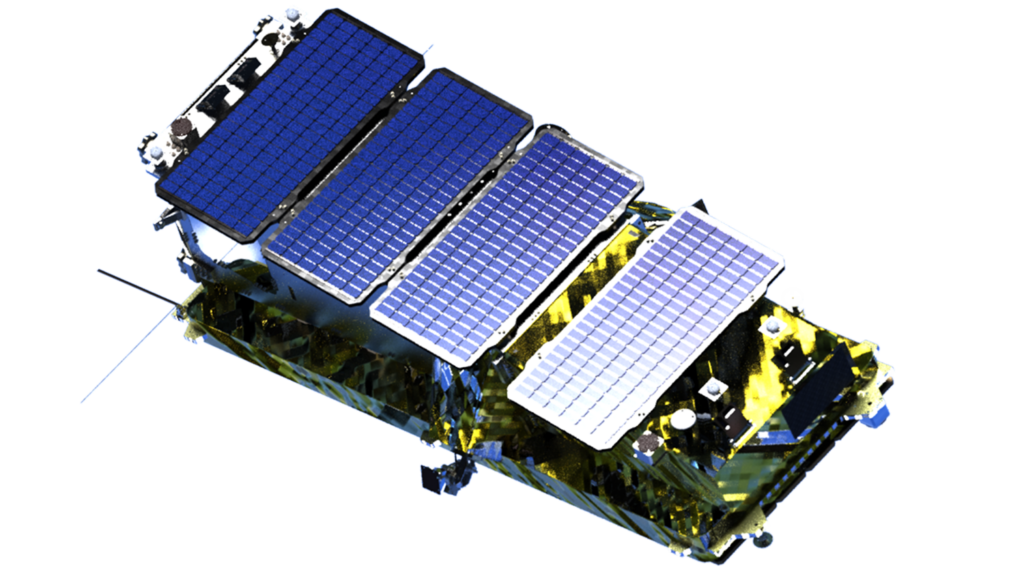

SSTL-MINI
SSTL (Surrey Satellite Technology)
Customisable minisatellite platform built on strong flight heritage, supporting very high resolution imagers and SAR payloads.
Typed specifications10 values
Discloses 4 of 7 fields engineers filter by in this category (category median 3).
- Design lifetime
- 7 years platform design life · datasheet p.1
- Form factor
- custom structure is bespoke depending on the mission and payload req… · datasheet p.1
- Orbit
- LEO Low earth orbit · datasheet p.1
- Max payload mass
- 200 kg max · payload mass up to 200kg · datasheet p.1
- Power available to payload
- 2 000 W max · peak · datasheet p.1
- Onboard storage for payload data
- 3 072 GB max · data storage, up to · datasheet p.2
- Propulsion
- optional capable propulsion system options: cold gas (Xenon, Butane), … · datasheet p.1
- Payload data downlink rate
- 1 000 000 kbps max · X-band downlink, up to · datasheet p.2
- Radio band
- X X-band downlink · datasheet p.2
- Flight heritage
- Example configurations: DMC3 / TripleSat (Launched July 2015); NovaSAR (Launched September 2018); S1-4 High Resolution Optical (Launched September 2018); FORMOSAT-7 (Launched June 2019) datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Payload mass
- Up to 200 kg
- Payload peak power
- Up to 2000 W
- Design life
- 7 years
- Orbit
- Low Earth Orbit
- Payload data input rate
- >20 Gbps
- X-band downlink
- Up to 1 Gbps
- Data storage
- Up to 3 TByte
- Example missions
- DMC3/TripleSat (2015), NovaSAR (2018), S1-4 High Resolution Optical (2018), FORMOSAT-7 (2019)
About
SSTL-MINI is a highly capable and flexible minisatellite platform based on SSTL’s Core Avionics suite, with a bespoke structure customised to mission and payload requirements drawing on flight-proven options. It supports SSTL’s range of high-performance payloads, including very high resolution optical imagers and Synthetic Aperture Radar (SAR) payloads, plus secondary payloads for technology demonstration, radiation monitoring and AIS. The platform offers a fully redundant avionics suite, validated system FDIR, a wide range of propulsion options (cold gas xenon/butane, hydrazine, electric systems), and star tracker-based high stability AOCS. Example missions flown on the SSTL-MINI platform include DMC3/TripleSat, NovaSAR, S1-4 High Resolution Optical, and FORMOSAT-7.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
