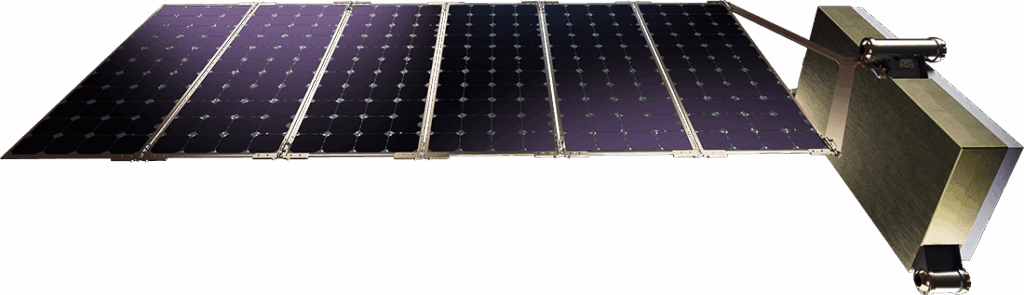

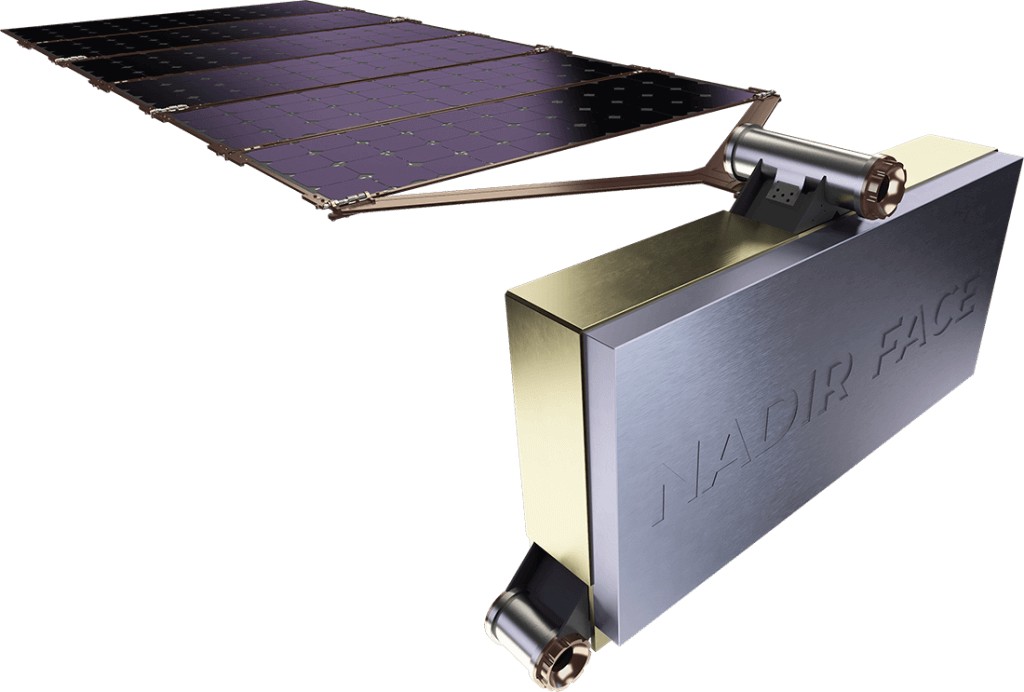

Enterprise
Terran Orbital
Largest platform in the Terran Orbital line, a flat-packing bus with Optical Inter-Satellite Link support for up to 24 satellites per launch.
Typed specifications47 values
Discloses 5 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 500 kg product page 1 000 kg | 1 250 kg
- Envelope (L×W×H)
- 100 x 200 cm Payload Deck Area, Configuration A · datasheet p.2
- Form factor
- custom Configuration: Flat packing (up to 24 satellites per launch) · datasheet p.2
- Orbit
- MEO Configuration C (MEO/GEO); native orbits 1200-35,000km · datasheet p.2 LEO Configurations A and B; native orbits 400km-1200km | GEO Configuration C (MEO/GEO); native orbits 1200-35,000km
- Max payload mass
- 200 kg max · Configuration A, Available Payload Mass · datasheet p.2 200 kg max · Configuration A, up to | 650 kg max · Configuration B, Available Payload Mass | 650 kg max · Configuration B, up to | 750 kg max · Configuration C, Available Payload Mass +1
- Payload envelope (L × W × H)
- 100cm x 200cm Configuration A, Payload Deck Area (height not given) · datasheet p.2 40cm x 20cm x 20cm Configuration A, Payload Electronics Volume | 76.2 x 30.5 x 30.5 Configuration B, Payload Electronics Volume | 76.2 x 30.5 x 30.5 Configuration C, Payload Electronics Volume | 114.3cm x 254cm Configurations B and C, Payload Deck Area (height not given) +1
- Power available to payload
- 2 000 W max · Configuration A, Available Payload Power, up to · datasheet p.2 3 000 W max · Configurations B and C, Available Payload Power, up to
- Regulated voltages for the payload
- 12 V 12V rail available · datasheet p.2 28 V 28V rail available | 9 V 9V rail available | 66 V printed as '66, 28, 12, 9V Rails available' | 28 V 66, 28, 12, 9V Rails available +2
- Pointing accuracy
- 0.003–0.014 ° 10 to 50 arcseconds standard; higher accuracy available · datasheet p.2 0.003–0.014 ° standard, higher accuracy available
- Payload data downlink rate
- 2 000 kbps S-band downlink (uplink 125 Kbps), Configurations A and B · datasheet p.2 650 000 kbps X-Band downlink, Configurations A and B
- Radio band
- S datasheet p.2 Ka Configuration C: S, X, and Ka TT&C options, high and low data… | optical Optical Inter-Satellite Link (OISL) functionality included | X
- Subsystems included
- other Optical Inter-Satellite Link (OISL) functionality · datasheet p.1
- Max satellite wet mass
- 500 kg Configuration A, Launch Mass (Wet) · datasheet p.2 1 kg Configuration B, Launch Mass (Wet) | 1.25 kg Configuration C, Launch Mass (Wet) | 500 kg max · Configuration A, Launch Mass (Wet); maximum mass may not be s… | 1 000 kg max · Configuration B, Launch Mass (Wet) +1
- Flight heritage
- Builds on Terran Orbital's long line of SmallSat heritage, with the same avionics and GNC algorithms as the smaller spacecraft platform classes datasheet p.1
- Satellite class
- smallsat 100-500 kg datasheet p.0 large >500 kg
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier23 lines, in the manufacturer's own wording
- Configuration a - applications
- LEO
- Configuration a - native orbits
- 400-1200 km
- Configuration a - launch mass (Wet)
- 500 kg
- Configuration a - available payload mass
- Up to 200 kg
- Configuration a - available payload power
- Up to 2 kW
- Configuration a - payload deck area
- 100 cm x 200 cm
- Configuration b - applications
- LEO
- Configuration b - native orbits
- 400-1200 km
- Configuration b - launch mass (Wet)
- 1000 kg
- Configuration b - available payload mass
- Up to 650 kg
- Configuration b - available payload power
- Up to 3 kW
- Configuration b - payload deck area
- 114.3 cm x 254 cm
- Configuration c - applications
- MEO/GEO
- Configuration c - native orbits
- 1200-35,000 km
- Configuration c - launch mass (Wet)
- 1250 kg
- Configuration c - available payload mass
- Up to 750 kg
- Configuration c - available payload power
- Up to 3 kW
- Configuration c - payload deck area
- 114.3 cm x 254 cm
- Redundancy
- Dual-string (all configurations)
- Power system
- 66, 28, 12, 9 V rails available
- Communication data rate (A/B)
- S-band: 125 Kbps uplink, 2 Mbps downlink; X-band: 650 Mbps downlink
- Communication data rate
- S, X, and Ka TT&C options, high and low data rates available
- Pointing accuracy
- 10 to 50 arcseconds standard, higher accuracy available
About

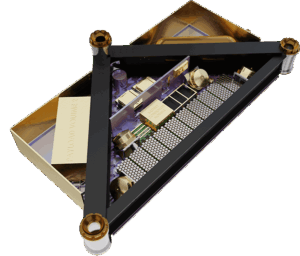

The Enterprise builds on Terran Orbital’s long line of SmallSat bus heritage, with the same avionics and GNC algorithms as the smaller bus classes. Significant enhancements to the structure support the largest payloads, and it includes Optical Inter-Satellite Link (OISL) functionality for communications. A new power storage system has been designed to reduce weight and increase the power available to the payload. Enterprise is scalable in thickness and weight based on customer payload requirements without changing the bus architecture, and is offered in three configurations (A, B, C) spanning LEO to MEO/GEO applications.
Key benefits: flat-packing design allows delivery of up to 24 satellites per launch (depending on the launch vehicle); includes Optical Inter-Satellite Link (OISL) functionality; large, flat deck optimized for communications and RF payloads.
Baseline modules included: Flight Computers (2), Watchdog Backplane, 66V Battery Modules (varies), 66V MPPT (10), 66V Load Controller, 28V Low/High-power Point-of-Loads (varies), Gyro Assembly, Coarse Sensors (4), Star Trackers (3), GPS (2), Magnetorquers (3), Reaction Wheels (4), LDRR (2), MDR (2), HDR.
