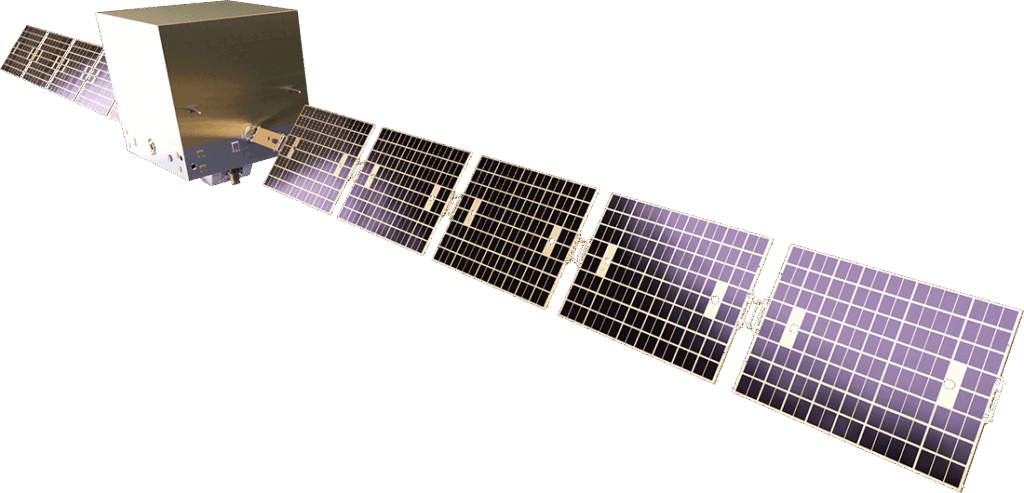

Ambassador
Terran Orbital
Premier ESPA-Grande rideshare microsatellite platform with up to 200kg payload and optional Type 1 encryption for DoD/Intel missions.
Typed specifications25 values
Discloses 4 of 7 fields engineers filter by in this category (category median 3).
- Form factor
- ESPA Configuration ESPA-Grande · datasheet p.2
- Orbit
- LEO Applications LEO; native orbits 400km-1200km · datasheet p.2
- Max payload mass
- 200 kg max · Available Payload Mass, up to · datasheet p.2
- Payload envelope (L × W × H)
- 104 cm x 112 cm Payload Deck Area (height not given) · datasheet p.2
- Regulated voltages for the payload
- 12 V 12V rail available · datasheet p.2 9 V 9V rail available
- Unregulated bus for the payload
- 66 V nom. · 66V System Power · datasheet p.2
- Power generation (orbit average)
- 1 500 W max · peak (Max Solar Array Power) · datasheet p.2
- Pointing accuracy
- 0.003–0.014 ° 10 to 50 arcseconds; higher accuracy available · datasheet p.2
- Propulsion
- optional product page included 1150s hall effect standard, options available; thrust 17mN
- Payload data downlink rate
- 2 000 kbps S-band downlink (uplink 125 Kbps) · datasheet p.2 650 000 kbps X-Band downlink
- Radio band
- S datasheet p.2 X
- Subsystems included
- battery 66V Battery Modules (8-12) · datasheet p.2 EPS 66V MPPT (2-3), 66V Load Controller, 28V Low-power and High-p… | other Backplane; LDRR (2); MDR (2) | ADCS Coarse Sensors (4), Gyro Assembly, Star Trackers (3), Magneto… | OBC Flight Computers (2), Watchdog +2
- Max satellite wet mass
- 500 kg max · Launch Mass (Wet), up to; maximum mass may not be supported o… · datasheet p.2
- Rail standard
- ESPA ESPA-Grande or similar interface · datasheet p.2
- Satellite class
- ESPA-class ESPA-Grande · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Configuration
- ESPA Grande
- Applications
- LEO
- Native orbits
- 400 km - 1200 km
- Launch mass (Wet, max)
- Up to 500 kg
- Available payload mass
- Up to 200 kg
- Max solar array power
- 1.5 kW (3rd-party solar array included)
- Redundancy
- Dual-string
- Power system
- 66 V system power; 12 V, 9 V rails available
- Communication data rate
- S-band: 125 Kbps uplink, 2 Mbps downlink; X-band: 650 Mbps downlink
- Propulsion
- 1150s Hall-effect standard, options available
- Thrust
- 17 mN
- Payload deck area
- 104 cm x 112 cm
- Pointing accuracy
- 10 to 50 arcseconds, higher accuracy available
About
Ambassador comes with Terran Orbital’s standard mini-satellite EPS architecture and builds off the entire product line of spacecraft platforms with the same avionics and GNC algorithms. The reaction wheels on the Ambassador are sized to allow the spacecraft to maintain agility, and the platform is designed from the ground up to be compatible with rideshare requirements. Ambassador supports commercially available or custom payloads and offers optional Type 1 encryption for military-grade security. It includes a propulsion system ideal for phasing a constellation into its mission orbit, station keeping, and disposal. The precursor to the Ambassador (Zuma+) was designed for the Space Development Agency’s Tranche 1 Transport Layer.
Key benefits: the largest deck area allowed by an ESPA-Grande interface for rideshare missions; top offering for the DoD/Intel community with the largest available payload and optional Type 1 encryption.
Baseline modules included: Flight Computers (2), Watchdog Backplane, 66V Battery Modules (8-12), 66V MPPT (2-3), 66V Load Controller, 28V Low/High-power Point-of-Load (varies), Coarse Sensors (4), Gyro Assembly, Star Trackers (3), GPS (2), Magnetorquers (3), Reaction Wheels (4), LDRR (2), MDR (2).
