Sun sensor
SPUTNIX
A compact, ultra-low-power two-axis digital CubeSat sun sensor (SXC-SD-01-3U) with factory calibration and CAN interface.
Typed specifications2 values
Discloses 0 of 8 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 31.3 x 27.5 x 10.3 mm (±0.2 mm, with 66100411722 connector) product page 31.3 x 27.5 x 8.6 mm (±0.2 mm, with 653104131822 connector)
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier23 lines, in the manufacturer's own wording
- Model
- SPUTNIX SXC-SD-01-3U
- Feature
- Mid-size satellites design in light and small package
- Feature (2)
- Ultra-low power CAN device
- Feature (3)
- Built-in DC converter for constant consumption
- Configuration
- Back cover option available
- Configuration (2)
- Bus-like (66100411722) and point-to-point (653104131822) connector options
- Configuration (3)
- CAN bus data rate
- Configuration (4)
- Telemetry frequency
- Dimensions
- 31.3 x 27.5 x 10.3 mm (±0.2 mm, with 66100411722 connector)
- Dimensions (2)
- 31.3 x 27.5 x 8.6 mm (±0.2 mm, with 653104131822 connector)
- Mass
- 7 ± 1 g
- Supply voltage
- 5..12 V (up to 15 V on demand)
- Power consumption
- 30-50 mW (active with CAN output)
- Data interface
- CAN2.0B 1Mbit/s
- Data protocol
- UniCAN (Sputnix)
- Field of view (FOV)
- ±60° (cone)
- Accuracy
- <0.3° (1σ, any angle within FOV)
- Noise
- <0.01°
- Telemetry frequency
- up to 20 Hz
- Operating temperature range
- -30...+50°C
- Storage temperature
- -40..+60°C
- Mechanical vibration
- 10 g (request full test report)
- Mechanical shock
- 50 g (request full test report)
About

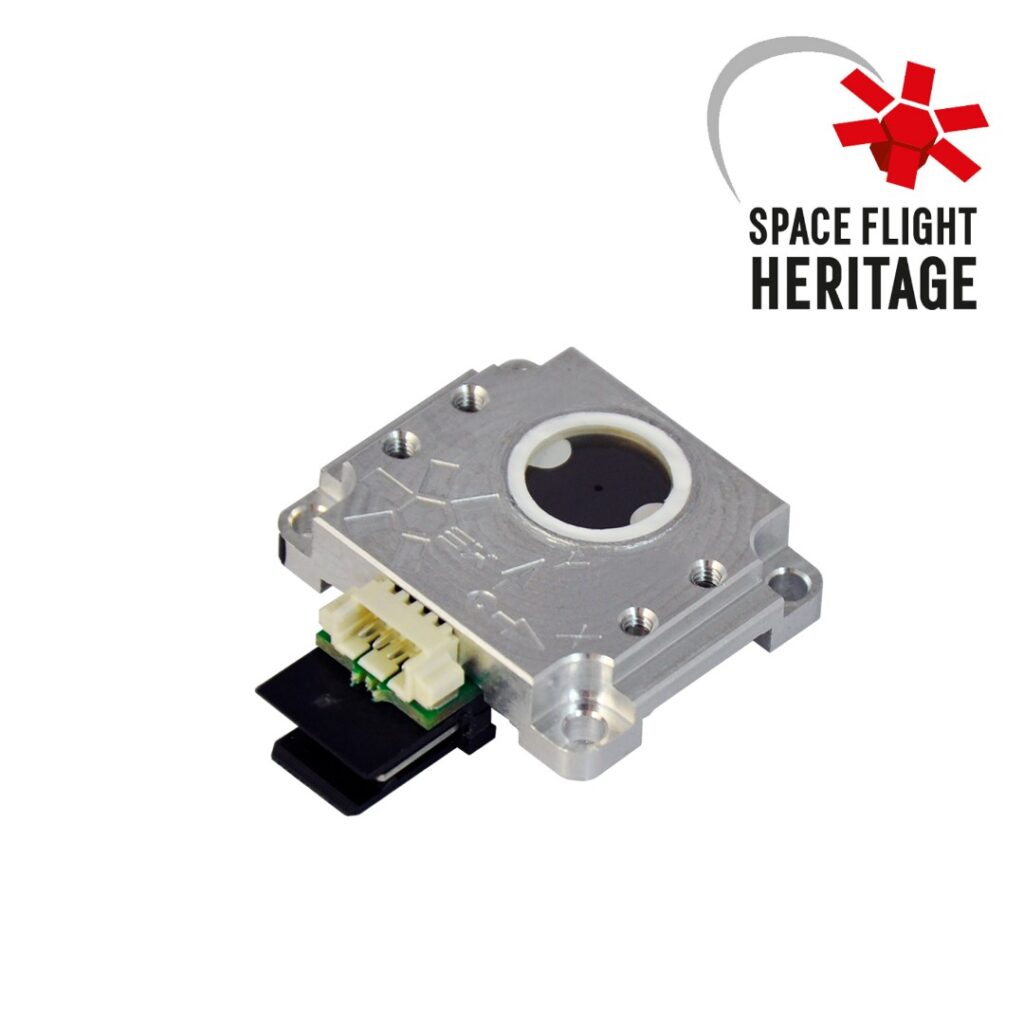

The SPUTNIX Sun sensor SXC-SD-01-3U is designed for use in nanosatellite missions. The CAN interface provides single-cable connection and chaining of sensors. The sun sensor is a two-orthogonal-axis digital sun sensor that generates the directional cosines of the angles of direction to the sun, with all factory calibrations included, so no customer calibration is needed. The sensor’s size, weight and power consumption are all very small. Mount hole positions are compatible with SPUTNIX SXC1 and SXC3 frame panels.
