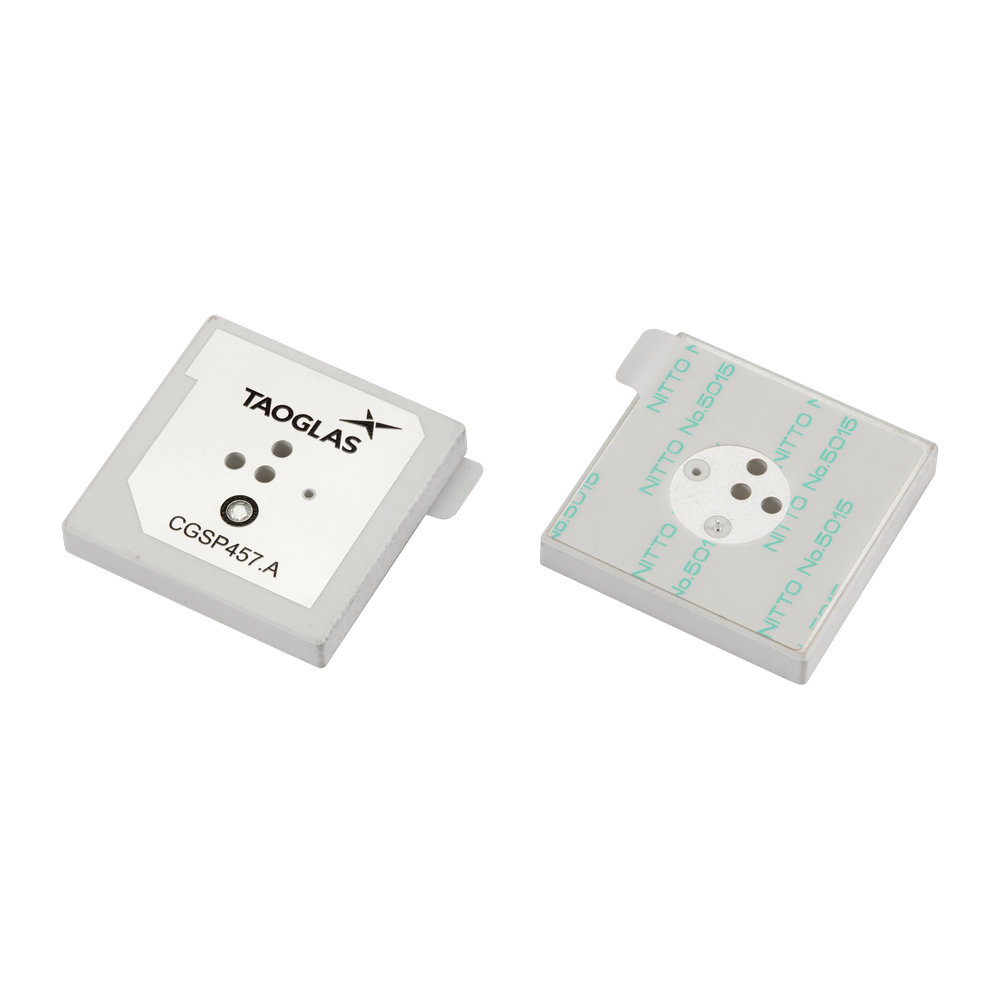

CGSP457.A GNSS SatCom 1542-1643 MHz 45 x 45 x 7 mm Patch Antenna
Taoglas
The Taoglas CGSP457.A is a high-performance ceramic patch antenna designed for robust and accurate positioning across various GNSS constellations, while also supporting SatCom operation including Iridium and NTN n255.
Typed specifications32 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- GNSS L1/L2/L5 GPS L1, GLONASS G1, Galileo E1, BeiDou B1C/B1I, QZSS L1, SBAS · datasheet p.4 L L-Band 1542 MHz, Iridium 1616-1626 MHz, NTN n255
- Peak gain
- 5.97 dBi B1I · datasheet p.5 5.93 dBi G1/L1OC | 5.93 dBi Iridium | 5.93 dBi L-Band | 5.92 dBi L1 +5
- Mass
- 32 g datasheet p.5
- Frequency range
- 1 559–1 565 MHz B1I · datasheet p.5 1 559–1 565 MHz B1I [1561 MHz] | 1 596–1 610 MHz G1/L1OC | 1 596–1 610 MHz G1/L1OC [1602 MHz] | 1 616–1 626 MHz Iridium +4
- Envelope (L×W×H)
- 45 x 45 x 7mm datasheet p.1 45 x 45 x 7mm
- Polarization
- RHCP datasheet p.5
- Antenna type
- Patch Antenna datasheet p.1 patch ceramic patch antenna
- Operating temperature
- -40–85 °C datasheet p.5
- Survival temperature
- -40–85 °C datasheet p.5 -40–85 °C storage
- RF ports
- 1 datasheet p.10
- Mounting
- Pin type with PCB; tested on a 70 x 70 mm ground plane datasheet p.5
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Technology
- Embedded Antennas, GNSS
- GNSS type
- Passive GNSS
- GNSS bands
- L1/L-Band
- Mechanical style
- Patch
- Impedance
- 50
- Minimum operating temperature (℃)
- -40
- Maximum operating temperature (℃)
- 85
- Mounting style
- Adhesive, Pin
- Termination style
- Pin
- Length
- 45 mm
- Width
- 45 mm
- Height
- 7 mm
- Polarity
- RHCP
- Frequency range
- 1542 - 1643 MHz
- Vswr
- 2:1
- Mass
- 32 g
- Rohs
- Yes
- Gain (Max)
- 5.97
About
The Taoglas CGSP457.A is a high-performance ceramic patch antenna engineered to provide robust and accurate positioning across a wide range of GNSS constellations, alongside supporting SatCom operation. With a compact 45 x 45 x 7 mm form factor, it offers an optimal balance of size, mechanical durability, and excellent RF performance, making it suitable for advanced navigation, timing, and communication systems. This antenna is capable of receiving signals from GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS, ensuring truly global coverage. It also supports Iridium, L-band, and NTN n255 (uplink and downlink), enabling reliable performance in satellite communication and emerging non-terrestrial network applications. Featuring high efficiency, consistent gain across supported bands, and RHCP polarization, the CGSP457.A ensures strong signal acquisition and stable operation even in challenging environments. Manufactured using high-quality ceramic materials and tested on a 70 x 70 mm ground plane, it offers dependable performance for integration into professional GNSS receivers, asset tracking systems, SatCom terminals, and other precision-driven applications. Typical applications include GNSS Positioning & Navigation, Asset Tracking & Fleet Management, Aerospace, UAV, and Robotics, Satellite Communication & NTN (n255), Public Safety & Mission-Critical Systems, Transportation & Telematics, Industrial & Infrastructure Applications, and Research & Field Instrumentation.
