MAT.500A 6-in-1 Integrated Antenna Board
Taoglas

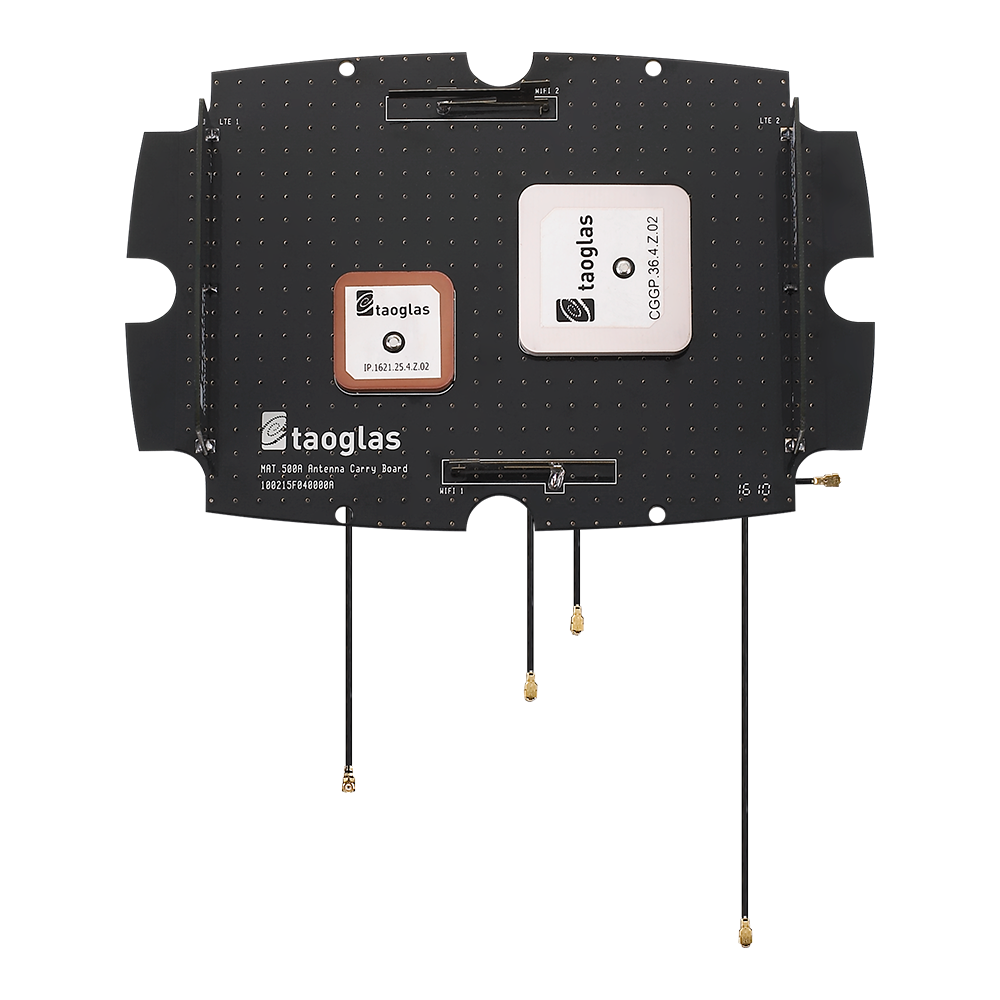

The MAT.500A is a 6-in-1 embedded antenna board combining LTE MIMO, Wi-Fi MIMO, GPS/GLONASS, and Iridium 1621MHz antennas, designed for telematics devices requiring high-speed data links and satellite communication fallback.
Typed specifications93 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- -1.6 dBi Average Gain (GLONASS) · datasheet p.3 -1.2 dBi Average Gain (GPS) | -2.97 dBi Average Gain (MIMO_1 2.4GHz Wi-Fi) | -2.1 dBi Average Gain (MIMO_1 5.8GHz Wi-Fi) | -1.67 dBi Average Gain (MIMO_1 DCS) +40
- Mass
- 66 g datasheet p.5
- Frequency range
- 1 602 MHz nom. · GLONASS · datasheet p.3 1 602 MHz GLONASS center frequency ±5 MHz | 1 575.42 MHz GPS center frequency ±1.023 MHz | 1 621 MHz Satellite L-Band center frequency ±5 MHz | 1 710–1 880 MHz DCS +10
- Envelope (L×W×H)
- 157.32*103.19*30mm datasheet p.1
- Polarization
- RHCP datasheet p.3 RHCP GPS-GLONASS and Satellite L-Band 1621MHz | linear LTE MIMO and Wi-Fi | RHCP | Linear +1
- Antenna type
- Embedded Antenna Board datasheet p.1 other integrated multi-antenna board (6-in-1) | other MAT.500 embedded antenna board, 6in1: 2x LTE MIMO + 2x Wi-Fi …
- Operating temperature
- -40–85 °C datasheet p.5
- Passive or active
- passive GPS-GLONASS passive antenna; passive antenna efficiency quoted · datasheet p.2
- RF connector
- other 4G/3G/2G LTE Antenna, I-PEX · datasheet p.4 other GPS-GLONASS, IPEX | U.FL I-PEX standard, fully customizable
- Connector
- IPEX standard, fully customizable datasheet p.3 IPEX standard, fully customizable | I-PEX standard , fully customizable | I-PEX standard , fully customizable
- Survival temperature
- -40–90 °C storage · datasheet p.5
- Axial ratio
- 6.3 dB max · GLONASS · datasheet p.3 5.1 dB max · GPS | 7.3 dB max · Satellite L-Band 1621MHz
- VSWR, max
- 2.2 2.4GHz/5.8GHz Wi-Fi Antenna · datasheet p.4 4 4G/3G/2G LTE Antenna | 2 GPS-GLONASS | 2 Satellite L-Band 1621MHz | 4 max · 4G/3G/2G LTE MIMO, <4 +3
- RF ports
- 6 six IPEX connectors: 2x LTE, 2x Wi-Fi, GPS/GLONASS, Iridium 1… · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier23 lines, in the manufacturer's own wording
- Technology
- Embedded Antennas, Combination
- GNSS bands
- L1
- Wi-fi bands
- 2.4/5.8 GHz
- Mechanical style
- PCB
- Impedance
- 50
- Minimum operating temperature
- -40 ℃
- Maximum operating temperature
- 85 ℃
- Mounting style
- Evaluation Board
- Termination style
- Connector
- Connector type
- I-PEX MHF I
- Length
- 157.32 mm
- Width
- 103.19 mm
- Height
- 30 mm
- Cable type
- 1.37 mm Micro Coax Black
- Connector body style
- Right Angle
- Polarity
- Linear/RHCP
- Frequency range
- 698 - 5850 MHz
- Connector polarity
- Normal
- Cable length
- 125 mm
- Vswr
- 2
- Mass
- 66 g
- Rohs
- Yes
- Gain (Max)
- 4.96
About
The MAT.500A is a versatile 6-in-1 embedded antenna board designed for telematics devices. It integrates 2x LTE MIMO antennas covering 698-960/1710-2170/2490-2690/3300-3600MHz bands, 2x Wi-Fi® MIMO antennas for 2.4/5.8GHz, a GPS-GLONASS antenna, and a Satellite L Band 1621MHz antenna specifically for the Iridium satellite system. This combination provides worldwide 4G band support, including 3G and 2G, along with global satellite connectivity for backup. The board can serve as a reference design or an actual embedded antenna for applications such as fleet management, asset tracking, security/surveillance, remote asset and pipeline monitoring, HD video over LTE, first responder and emergency services, and global data communications/IoT. It features six IPEX connectors and 1.37mm coax cables. The design emphasizes high efficiency and high gain for MIMO antennas, with high isolation to prevent self-interference. Low loss cables maintain efficiency over longer lengths. The passive GPS-GLONASS antenna efficiently receives on both bands for higher location accuracy, while the omnidirectional Wi-Fi® antennas offer high efficiency and isolation in a compact structure. The embedded low axial ratio 1621MHz antenna provides connectivity to the Iridium satellite system, ensuring global coverage and a crucial backup in case of cellular network failure. Cable length and connector types are customizable.
