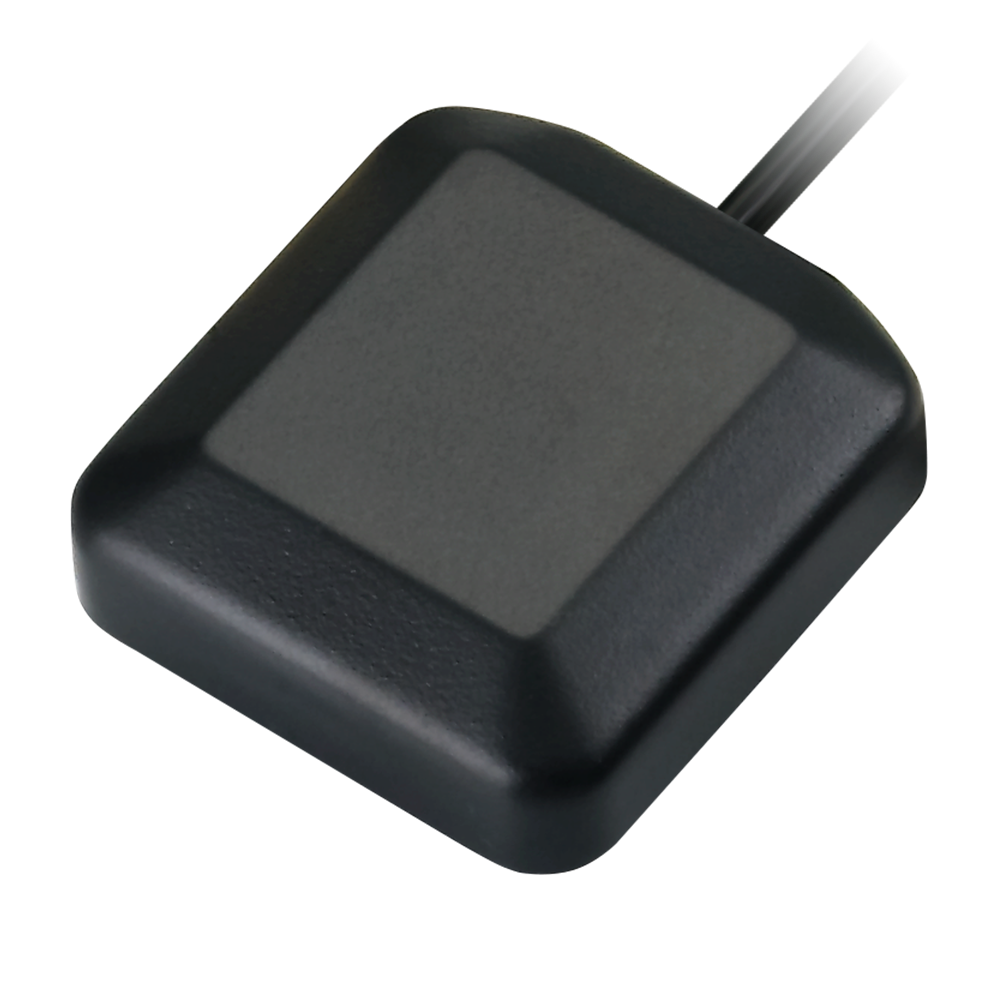

IAA.01 Iridium Automotive Magnetic Mount Antenna
Taoglas
The IAA.01 is a high-performance magnetic mount antenna designed for efficient communication with the Iridium® Satellite Communication system, featuring a robust, waterproof housing and customizable cable/connector options.
Typed specifications18 values
Discloses 6 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- L Iridium 1616-1626.5 MHz · datasheet p.1
- Peak gain
- 3.7 dBi peak gain with ground plane (30x30cm) · datasheet p.4 3.7 dBi With Ground plane(30x30cm)
- Mass
- 43.5 g product page
- Frequency range
- 1 621 MHz centre frequency · datasheet p.4 1 616–1 626.5 MHz | 1 616–1 626.5 MHz frequency range
- Envelope (L×W×H)
- 40.5 x 38 x 12.3mm datasheet p.4
- Polarization
- RHCP datasheet p.4
- Antenna type
- magnetic mount antenna datasheet p.3 patch ceramic patch tuned for the antenna environment
- Operating temperature
- -40–85 °C datasheet p.4
- RF connector
- SMA SMA Male Straight · datasheet p.4
- Connector
- SMA Male Straight datasheet p.4
- Survival temperature
- -40–85 °C datasheet p.4 -40–85 °C storage
- VSWR, max
- 1.2 datasheet p.4
- Mounting
- external magnetic mount (convertible to adhesive type); designed to work on a 30 x 30cm ground plane datasheet p.3
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier20 lines, in the manufacturer's own wording
- Technology
- External Antennas, NTN/SatCom
- IP rating
- IP67
- Impedance
- 50
- Minimum operating temperature (℃)
- -40
- Maximum operating temperature (℃)
- 70
- Mounting style
- Magnetic
- Termination style
- Connector
- Connector type
- SMA
- Length
- 45 mm
- Width
- 45 mm
- Height
- 15.1 mm
- Cable type
- RG-174
- Connector body style
- Straight
- Polarity
- RHCP
- Frequency range
- 1616 - 1626.5 MHz
- Cable length
- 1200 mm
- Vswr
- <2
- Mass
- 43.5 g
- Rohs
- Yes
- Gain (Max)
- 3.7
About
The IAA.01 is a high-performance magnetic mount antenna specifically engineered to communicate efficiently with the Iridium® Satellite Communication system. It incorporates Taoglas’ expertise in ceramics, utilizing a ceramic patch tuned for the antenna environment to provide greater stability. The antenna housing is designed to be strong, corrosive-proof, and waterproof to an IP67 rating. Its magnetic mount allows for easy installation and removal, making it suitable for use across different vehicles or assets, and it can also be converted to an adhesive type for increased flexibility. The IAA.01.121111 antenna has been certified by Iridium® for commercial use with the Iridium Communications System. It is designed to work in conjunction with a 30x30cm ground plane. The product is RoHS & REACH Compliant, and custom cable and connector options are available.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
