CCD97
Teledyne e2v

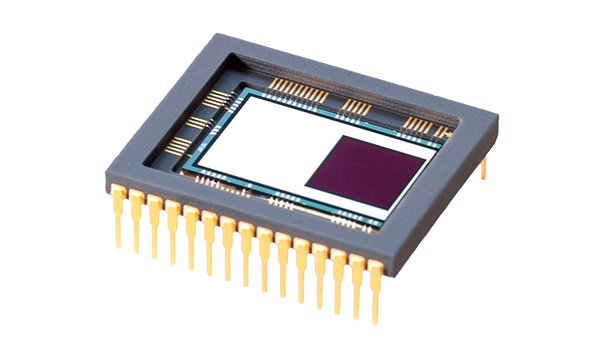

The CCD97 is a frame transfer, electron multiplying CCD sensor designed for high frame rate, ultra-low light applications, featuring high quantum efficiency through Teledyne e2v's back-thinning process.
Technical specifications
- Active pixels
- 512 x 512
- Pixel size
- 16 µm square
- Sensitivity
- Single photon sensitive
- Gain
- Variable multiplicative gain, 1x-1000x
- Additional output
- Additional conventional output amplifier
- Architecture
- Frame Transfer
- Dark current
- Inverted mode operation for low dark current
- Package
- 30-pin ceramic dual-in-line package
About
The CCD97 is a high-performance frame transfer, electron multiplying CCD sensor specifically engineered for demanding applications requiring high frame rates and operation in ultra-low light conditions. Teledyne e2v’s proprietary back-thinning process is utilized to achieve high quantum efficiency across a broad spectrum of wavelengths. The sensor incorporates an electron multiplying CCD architecture, which includes an extended readout register. This register provides variable gain capabilities, ranging from 1x to 1000x, before the signal undergoes voltage conversion in the output amplifier. This electron multiplication feature is crucial for effectively eliminating readout noise, even while maintaining fast readout rates, making it suitable for sensitive imaging tasks where signal integrity at low light levels is paramount.
