VACCO Fill and Drain Valves
VACCO Industries
Manually operated high- and low-pressure service valves for filling and draining gases and propellants on spacecraft and missiles.
Typed specifications85 values
Discloses 4 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 680 g max · max · datasheet p.1 10 g max · V1D10855-01 3/8" high pressure micro fill & drain valve; 0.02… | 113 g max · V1E10430-01 1/4" high pressure gas fill & drain valve; 0.25 lb | 113 g max · V1E10811-01 1/4" high pressure gas fill & drain valve; 0.25 lb | 30 g max · V1E10845-01 1/8" miniature fill & drain valve; 0.07 lb
- Max operating pressure (MEOP)
- 461.95 bar V1D10855-01 3/8" high pressure micro fill & drain valve; Oper… · datasheet p.7 275.79 bar V1E10430-01 1/4" high pressure gas fill & drain valve; Operat… | 309.92 bar V1E10811-01 1/4" high pressure gas fill & drain valve; Operat… | 689.48 bar V1E10845-01 1/8" miniature fill & drain valve; Operating Pres… | 413.69 bar
- Media / propellant
- hydrazine datasheet p.1 hydrogen V1D10855-01 3/8" high pressure micro fill & drain valve; GH2 | helium V1D10855-01 3/8" high pressure micro fill & drain valve; GHe | oxygen V1D10855-01 3/8" high pressure micro fill & drain valve; GO2 | water V1D10855-01 3/8" high pressure micro fill & drain valve; H2O +9
- Material (wetted or shell)
- other V1D10855-01 3/8" high pressure micro fill & drain valve; 15-5… · datasheet p.7 titanium (Ti-6Al-4V) V1D10855-01 3/8" high pressure micro fill & drain valve; tita… | stainless steel (304L or 316L) V1E10430-01 1/4" high pressure gas fill & drain valve; 304L C… | titanium (Ti-6Al-4V) V1E10430-01 1/4" high pressure gas fill & drain valve; titani… | other V1E10430-01 1/4" high pressure gas fill & drain valve; tungst… +4
- Operating temperature
- -7 °C product page 10–30 °C V1D10855-01 3/8" high pressure micro fill & drain valve | -7–55 °C V1E10430-01 1/4" high pressure gas fill & drain valve | -35–55 °C V1E10811-01 1/4" high pressure gas fill & drain valve | -34–60 °C V1E10845-01 1/8" miniature fill & drain valve +1
- Component
- valve external · datasheet p.1 valve internal | valve V1D10855-01 3/8" high pressure micro fill & drain valve | valve V1E10430-01 1/4" high pressure gas fill & drain valve | valve V1E10811-01 1/4" high pressure gas fill & drain valve +3
- Valve type
- fill and drain valve V1D10855-01 3/8" high pressure micro fill & drain valve · datasheet p.7 fill and drain valve V1E10430-01 1/4" high pressure gas fill & drain valve | fill and drain valve V1E10811-01 1/4" high pressure gas fill & drain valve | fill and drain valve V1E10845-01 1/8" miniature fill & drain valve
- Cycle life
- 50 V1D10855-01 3/8" high pressure micro fill & drain valve; open… · datasheet p.7 100 V1E10430-01 1/4" high pressure gas fill & drain valve; open/c… | 100 V1E10811-01 1/4" high pressure gas fill & drain valve; open/c… | 50 V1E10845-01 1/8" miniature fill & drain valve; open/close
- Survival temperature
- -40 °C product page -170–350 °C V1D10855-01 3/8" high pressure micro fill & drain valve; Non-… | -40–60 °C V1E10430-01 1/4" high pressure gas fill & drain valve; Non-op…
- Random vibration
- 13.2 g RMS V1D10855-01 3/8" high pressure micro fill & drain valve; 3 mi… · datasheet p.7 17.1 g RMS V1E10430-01 1/4" high pressure gas fill & drain valve; 2 min/… | 20.7 g RMS V1E10811-01 1/4" high pressure gas fill & drain valve; Parall… | 56.3 g RMS V1E10811-01 1/4" high pressure gas fill & drain valve; Perpen…
- Proof pressure
- 413.69 bar datasheet p.1 692.92 bar V1D10855-01 3/8" high pressure micro fill & drain valve | 413.69 bar V1E10430-01 1/4" high pressure gas fill & drain valve | 464.84 bar V1E10811-01 1/4" high pressure gas fill & drain valve | 1 085.92 bar V1E10845-01 1/8" miniature fill & drain valve
- Burst pressure
- 827.37 bar datasheet p.1 923.9 bar V1D10855-01 3/8" high pressure micro fill & drain valve | 827.37 bar V1E10430-01 1/4" high pressure gas fill & drain valve | 774.76 bar V1E10811-01 1/4" high pressure gas fill & drain valve | 1 809.87 bar V1E10845-01 1/8" miniature fill & drain valve
- Port fitting
- V1E10430-01 1/4" high pressure gas fill & drain valve: Inlet fitting per SAE-AS4395G04 with AN929 fitting cap assembly; 0.250" diameter outlet tube datasheet p.1 V1E10811-01 1/4" high pressure gas fill & drain valve: Inlet fitting per SAE-AS4395G02 with AN929 fitting cap assembly; 0.250" diameter outlet tube | V1E10845-01 1/8" miniature fill & drain valve: Inlet fitting per SAE-AS4395E02 with AN929 fitting cap assembly; 0.125" diameter outlet tube | V1D10855-01 3/8" high pressure micro fill & drain valve: 0.375" diameter outlet tube
- External leak rate (as printed)
- V1E10430-01 1/4" high pressure gas fill & drain valve: Internal 1.0 x10-6 SCCS GHe @ 4,000 psig; External 1.0x10-5 SCCS GHe @ 4,000 psig datasheet p.1 1.0x10-5 SCCS GHe @ 4,000 psig external | 1.0 x10-6 SCCS GHe @ 4,000 psig internal | V1E10811-01 1/4" high pressure gas fill & drain valve: Internal 1.0 x 10-6 SCCS GHe @ 4,495 psia; External 2.8 x 10-4 SCCS GHe @ 4,495 psia | V1E10845-01 1/8" miniature fill & drain valve: Internal 5.0 x 10-5 SCCS GHe @ 10,000 psia; External 1.0 x 10-4 SCCS GHe @ 10,000 psia +1
- Pressure drop at rated flow
- 6.89 bar V1D10855-01 3/8" high pressure micro fill & drain valve; @ 0.… · datasheet p.7 1.38 bar V1E10430-01 1/4" high pressure gas fill & drain valve; @ 51 S… | 1.38 bar V1E10811-01 1/4" high pressure gas fill & drain valve; @ 40 S…
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Types
- High pressure and low pressure fill & drain (service) valves
- Operation
- Manual, anti-rotation rising-stem design
- Sealing
- Two or three redundant seals against external leakage
- Example application
- 1/4 in. high-pressure gas fill & drain valve for helium/xenon on Spacebus UPS and PPS
- Operating Pressure
- 4,000 psig
- Proof Pressure
- 6,000 psig
- Burst Pressure
- 12,000 psig
- Operating Life Cycles
- 100 open/close
- Internal Leakage
- 1.0 x 10-6 SCCS GHe
- External Leakage
- 1.0x10-5 SCCS GHe
- Operating temperature
- -7°C to +55°C
- Non-operating temperature
- -40°C to +60°C
- Random Vibration
- 17.1 G(rms)
About

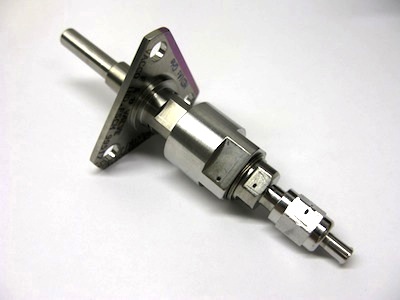

VACCO designs, develops and maintains a full line of fill and drain (service) valves for the space and missile industries, ranging from high pressure to low pressure and standard to miniature/micro sizes, for gas and propellant service. The valves are manually operated and incorporate VACCO’s pioneered anti-rotation, rising-stem feature, achieving extremely tight leakage with two or three redundant seals against external leakage. The 1/4-inch High Pressure Gas Fill and Drain Valve is used on propulsion systems such as the Alcatel Spacebus Unified Propulsion System (UPS) and Plasma Propulsion Subsystem (PPS) for filling and draining helium and xenon gas before launch and during ground testing.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
