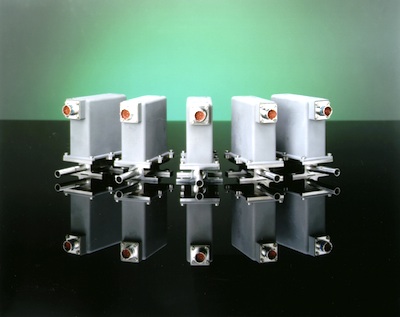

VACCO Latch Valves / Isolation Valves
VACCO Industries
Flight-proven high- and low-pressure latch (isolation) valves used across commercial and government satellite propulsion systems since 1988.
Typed specifications98 values
Discloses 5 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 340 g datasheet p.1 800 g V1E10560-01 3/8" high pressure latch valve | 340 g V1E10763-01 1/4" high pressure latch valve (5000 psi); 0.75 LB | 160 g V8E10580-01 1/4" high pressure miniature latch valve | 340 g max · V1E10537-01 1/4" high pressure latch valve +3
- Envelope (L×W×H)
- 1.360 [34,5 mm] actuator diameter · datasheet p.2
- Max operating pressure (MEOP)
- 137.9 bar datasheet p.1 137.9 bar V1E10537-01 1/4" high pressure latch valve; features list: Op… | 206.84 bar V1E10537-01 1/4" high pressure latch valve; Operating Pressur… | 310.26 bar V1E10560-01 3/8" high pressure latch valve; Operating Pressur… | 344.74 bar V1E10763-01 1/4" high pressure latch valve (5000 psi); Operat… +2
- Media / propellant
- helium datasheet p.1 xenon V1E10537-01 1/4" high pressure latch valve; flow data @ 0.002… | xenon V8E10580-01 1/4" high pressure miniature latch valve; flow da… | xenon | helium +4
- Material (wetted or shell)
- Titanium datasheet p.1 titanium (Ti-6Al-4V) V1E10537-01 1/4" high pressure latch valve; All Titanium Cons… | titanium (Ti-6Al-4V) V1E10560-01 3/8" high pressure latch valve; All Titanium Cons… | stainless steel (304L or 316L) V1E10763-01 1/4" high pressure latch valve (5000 psi); CRES I… | titanium (Ti-6Al-4V) V1E10763-01 1/4" high pressure latch valve (5000 psi); Ti Body +2
- Supply voltage
- 20–54 V V1E10537-01 1/4" high pressure latch valve; Operating Voltage · datasheet p.1 22–32 V V1E10560-01 3/8" high pressure latch valve; Operating Voltage | 24–32 V V1E10763-01 1/4" high pressure latch valve (5000 psi); Openin… | 21–38.6 V V8E10580-01 1/4" high pressure miniature latch valve; Operati…
- Power consumption
- 20 W max · V1E10763-01 1/4" high pressure latch valve (5000 psi); max @ … · datasheet p.3 28 W max · V8E10580-01 1/4" high pressure miniature latch valve; max @ 2…
- Operating temperature
- -2.2–50 °C datasheet p.1 28–122 °C V1E10537-01 1/4" high pressure latch valve | -13–113 °C V1E10560-01 3/8" high pressure latch valve | 14–140 °C V1E10763-01 1/4" high pressure latch valve (5000 psi) | 10–170 °C V8E10580-01 1/4" high pressure miniature latch valve
- Component
- valve external · datasheet p.1 valve internal | valve V1E10537-01 1/4" high pressure latch valve | valve V1E10560-01 3/8" high pressure latch valve | valve V1E10763-01 1/4" high pressure latch valve (5000 psi) +2
- Valve type
- latch valve V1E10537-01 1/4" high pressure latch valve · datasheet p.1 latch valve V1E10560-01 3/8" high pressure latch valve | latch valve V1E10763-01 1/4" high pressure latch valve (5000 psi) | latch valve V8E10580-01 1/4" high pressure miniature latch valve
- Filtration rating (absolute)
- 40 µm V1E10537-01 1/4" high pressure latch valve; optional inlet fi… · datasheet p.1 40 µm V1E10763-01 1/4" high pressure latch valve (5000 psi); Etched… | 40 µm V8E10580-01 1/4" high pressure miniature latch valve; optiona…
- Cycle life
- 25 000 Cycle Life · datasheet p.1 3 000 V1E10560-01 3/8" high pressure latch valve | 25 000 min · V1E10537-01 1/4" high pressure latch valve | 13 000 min · V1E10763-01 1/4" high pressure latch valve (5000 psi) | 20 000 min · V8E10580-01 1/4" high pressure miniature latch valve
- Flight heritage
- In production since 1988 product page Boeing HS601/HS702, Astrium Eurostar 3000, Mitsubishi DS2000, ATV, HTV, Cygnus
- Proof pressure
- 310.26 bar datasheet p.1 310.26 bar V1E10537-01 1/4" high pressure latch valve | 465.4 bar V1E10560-01 3/8" high pressure latch valve | 517.11 bar V1E10763-01 1/4" high pressure latch valve (5000 psi) | 310.26 bar V8E10580-01 1/4" high pressure miniature latch valve +1
- Burst pressure
- 517.1 bar datasheet p.1 517.11 bar V1E10537-01 1/4" high pressure latch valve | 827.37 bar V1E10560-01 3/8" high pressure latch valve | 861.85 bar V1E10763-01 1/4" high pressure latch valve (5000 psi) | 517.11 bar V8E10580-01 1/4" high pressure miniature latch valve +1
- Port fitting
- V1E10537-01 1/4" high pressure latch valve: 2X Ø.250-.253, .018-.022 WALL (inlet/outlet tube) datasheet p.1
- External leak rate (as printed)
- V1E10537-01 1/4" high pressure latch valve: Internal <3.0 scch GHe; External <1 X 10-6 sccs GHe datasheet p.1 <1 X 10-6 sccs GHe external | <3.0 scch GHe internal | V1E10763-01 1/4" high pressure latch valve (5000 psi): Internal < 5.0 scch GHe @ 5000 psid; External 1x10-6 sccs GHe @ 5000 psid | V1E10560-01 3/8" high pressure latch valve: Internal 1 x 10-3 sccs He; External <1 x 10-6 sccs GHe +1
- Rated mass flow
- 0.01 mg/s V1E10560-01 3/8" high pressure latch valve; of H2O · datasheet p.5
- Pressure drop at rated flow
- 0 bar V1E10537-01 1/4" high pressure latch valve; @ 0.002 scfm GXe · datasheet p.1 0.689 bar V1E10537-01 1/4" high pressure latch valve; @ 5 scfm GHe | 0.001 bar V8E10580-01 1/4" high pressure miniature latch valve; @ 0.002… | 0.552 bar V8E10580-01 1/4" high pressure miniature latch valve; @ 5 scf… | 1 bar max · V1E10560-01 3/8" high pressure latch valve; at rated flow +1
- Response time
- 30 ms V1E10537-01 1/4" high pressure latch valve; opening and closi… · datasheet p.1 50 ms V1E10560-01 3/8" high pressure latch valve; opening and closi… | 20 ms V1E10763-01 1/4" high pressure latch valve (5000 psi); openin… | 15 ms V8E10580-01 1/4" high pressure miniature latch valve; opening…
- Position indication
- yes V1E10537-01 1/4" high pressure latch valve; Integral Microswitch · datasheet p.1 yes V1E10560-01 3/8" high pressure latch valve; Integral Microswitch | yes V1E10763-01 1/4" high pressure latch valve (5000 psi); Integr… | yes V8E10580-01 1/4" high pressure miniature latch valve; Optiona…
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier19 lines, in the manufacturer's own wording
- Valve type
- High-pressure latch, low-pressure latch, positive isolation
- Max operating pressure
- Up to 5,000 psia (350 bar)
- Materials
- Titanium or stainless steel
- Inlet filtration
- Integral etched-disc filter
- Flight heritage
- In production since 1988
- Flight heritage (2)
- Boeing HS601/HS702, Astrium Eurostar 3000, Mitsubishi DS2000, ATV, HTV, Cygnus
- Mass
- <340 grams (0.75 lb)
- Operating Pressure Range
- 3000 psig
- Proof Pressure
- 4500 psig
- Burst Pressure
- 7500 psig
- Flow / Pressure Drop
- 10 psid @ 5 scfm GHe
- Internal Leakage
- <3.0 scch GHe
- External Leakage
- <1 X 10 sccs GHe
- Operating temperature
- 28°F to 122°F
- Cycle Life
- >25,000 Cycles
- Opening Response Time
- 30 msec @ 20 VDC
- Closing Response Time
- 30 msec @ 20 VDC
- Dielectric Strength
- 500 VAC RMS @ 60 Hz – 1 min
- Operating Voltage
- 20 – 54 VDC
About
Since the introduction of the latch valve family in 1988, VACCO latch valves have become an industry standard for propellant and pressurant isolation on spacecraft. They feature a no-sliding-fit valve design, an integral etched-disc inlet filter, fast response and high reliability, and are available in titanium or stainless steel. The product line spans low to high flow rates at operating pressures up to 5,000 psia (350 bar). VACCO latch valves have flown on Boeing HS601/HS702, Orbital Sciences Star-2, Astrium Eurostar 3000 (Xenon propulsion), and Mitsubishi Electric DS2000 satellite platforms, and support ISS resupply vehicles including the European ATV, Japanese HTV, and Orbital Sciences/NASA Cygnus. Positive isolation valve and propellant latch valve variants are also offered for propellant gauging and fluid isolation applications.
Documentation
- latch_valves_high_pressure.pdf PDF source: www.vacco.com ↗
- latch_valves_low_pressure.pdf PDF source: www.vacco.com ↗
- PIV-norm-closed_13097000.pdf PDF source: www.vacco.com ↗
