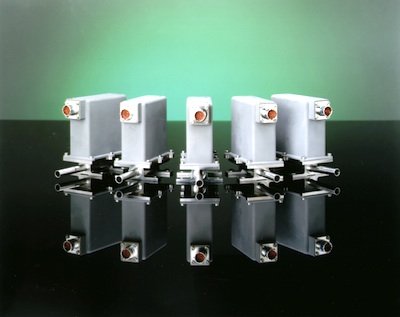

VACCO Propellant Latch Valve
VACCO Industries
The VACCO Propellant Latch Valve is a fluid control component designed for spacecraft and satellite applications, offering variations for low to high flow and operating pressures up to 5000 psia.
Typed specifications88 values
Discloses 5 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 340 g datasheet p.2 800 g V1E10560-01 3/8" high pressure latch valve | 340 g V1E10763-01 1/4" high pressure latch valve (5000 psi); 0.75 LB | 160 g V8E10580-01 1/4" high pressure miniature latch valve | 340 g max · V1E10537-01 1/4" high pressure latch valve
- Envelope (L×W×H)
- 1.13 MAX x 2.19 MAX x 3.22 datasheet p.2
- Max operating pressure (MEOP)
- 137.9 bar datasheet p.2 137.9 bar V1E10537-01 1/4" high pressure latch valve; features list: Op… | 206.84 bar V1E10537-01 1/4" high pressure latch valve; Operating Pressur… | 310.26 bar V1E10560-01 3/8" high pressure latch valve; Operating Pressur… | 344.74 bar V1E10763-01 1/4" high pressure latch valve (5000 psi); Operat… +2
- Media / propellant
- other GHe · datasheet p.1 xenon V1E10537-01 1/4" high pressure latch valve; flow data @ 0.002… | xenon V8E10580-01 1/4" high pressure miniature latch valve; flow da… | other GXe
- Material (wetted or shell)
- Titanium datasheet p.2 titanium (Ti-6Al-4V) V1E10537-01 1/4" high pressure latch valve; All Titanium Cons… | titanium (Ti-6Al-4V) V1E10560-01 3/8" high pressure latch valve; All Titanium Cons… | stainless steel (304L or 316L) V1E10763-01 1/4" high pressure latch valve (5000 psi); CRES I… | titanium (Ti-6Al-4V) V1E10763-01 1/4" high pressure latch valve (5000 psi); Ti Body +2
- Supply voltage
- 20–54 V V1E10537-01 1/4" high pressure latch valve; Operating Voltage · datasheet p.1 22–32 V V1E10560-01 3/8" high pressure latch valve; Operating Voltage | 24–32 V V1E10763-01 1/4" high pressure latch valve (5000 psi); Openin… | 21–38.6 V V8E10580-01 1/4" high pressure miniature latch valve; Operati…
- Power consumption
- 20 W max · V1E10763-01 1/4" high pressure latch valve (5000 psi); max @ … · datasheet p.3 28 W max · V8E10580-01 1/4" high pressure miniature latch valve; max @ 2…
- Operating temperature
- -34–77 °C operating · datasheet p.1 28–122 °C V1E10537-01 1/4" high pressure latch valve | -13–113 °C V1E10560-01 3/8" high pressure latch valve | 14–140 °C V1E10763-01 1/4" high pressure latch valve (5000 psi) | 10–170 °C V8E10580-01 1/4" high pressure miniature latch valve
- Component
- valve External · datasheet p.2 valve Internal | valve V1E10537-01 1/4" high pressure latch valve | valve V1E10560-01 3/8" high pressure latch valve | valve V1E10763-01 1/4" high pressure latch valve (5000 psi) +2
- Valve type
- latch valve V1E10537-01 1/4" high pressure latch valve · datasheet p.1 latch valve V1E10560-01 3/8" high pressure latch valve | latch valve V1E10763-01 1/4" high pressure latch valve (5000 psi) | latch valve V8E10580-01 1/4" high pressure miniature latch valve
- Filtration rating (absolute)
- 40 µm V1E10537-01 1/4" high pressure latch valve; optional inlet fi… · datasheet p.1 40 µm V1E10763-01 1/4" high pressure latch valve (5000 psi); Etched… | 40 µm V8E10580-01 1/4" high pressure miniature latch valve; optiona…
- Cycle life
- 3 000 V1E10560-01 3/8" high pressure latch valve · datasheet p.5 25 000 min · V1E10537-01 1/4" high pressure latch valve | 13 000 min · V1E10763-01 1/4" high pressure latch valve (5000 psi) | 20 000 min · V8E10580-01 1/4" high pressure miniature latch valve
- Flight heritage
- Boeing HS-702 satellite, various Boeing platforms, vehicles resupplying the International Space Station, leading commercial and scientific satellites product page
- Proof pressure
- 310.26 bar datasheet p.2 310.26 bar V1E10537-01 1/4" high pressure latch valve | 465.4 bar V1E10560-01 3/8" high pressure latch valve | 517.11 bar V1E10763-01 1/4" high pressure latch valve (5000 psi) | 310.26 bar V8E10580-01 1/4" high pressure miniature latch valve +1
- Burst pressure
- 517.1 bar datasheet p.2 517.11 bar V1E10537-01 1/4" high pressure latch valve | 827.37 bar V1E10560-01 3/8" high pressure latch valve | 861.85 bar V1E10763-01 1/4" high pressure latch valve (5000 psi) | 517.11 bar V8E10580-01 1/4" high pressure miniature latch valve +1
- Port fitting
- V1E10537-01 1/4" high pressure latch valve: 2X Ø.250-.253, .018-.022 WALL (inlet/outlet tube) datasheet p.1
- External leak rate (as printed)
- V1E10537-01 1/4" high pressure latch valve: Internal <3.0 scch GHe; External <1 X 10-6 sccs GHe datasheet p.1 <1 X 10^-6 sccs GHe External | <3.0 scch GHe Internal | V1E10763-01 1/4" high pressure latch valve (5000 psi): Internal < 5.0 scch GHe @ 5000 psid; External 1x10-6 sccs GHe @ 5000 psid | V1E10560-01 3/8" high pressure latch valve: Internal 1 x 10-3 sccs He; External <1 x 10-6 sccs GHe +1
- Rated mass flow
- 0.01 mg/s V1E10560-01 3/8" high pressure latch valve; of H2O · datasheet p.5
- Pressure drop at rated flow
- 0 bar V1E10537-01 1/4" high pressure latch valve; @ 0.002 scfm GXe · datasheet p.1 0.689 bar V1E10537-01 1/4" high pressure latch valve; @ 5 scfm GHe | 0.001 bar V8E10580-01 1/4" high pressure miniature latch valve; @ 0.002… | 0.552 bar V8E10580-01 1/4" high pressure miniature latch valve; @ 5 scf… | 1 bar max · V1E10560-01 3/8" high pressure latch valve; at rated flow +1
- Response time
- 30 ms V1E10537-01 1/4" high pressure latch valve; opening and closi… · datasheet p.1 50 ms V1E10560-01 3/8" high pressure latch valve; opening and closi… | 20 ms V1E10763-01 1/4" high pressure latch valve (5000 psi); openin… | 15 ms V8E10580-01 1/4" high pressure miniature latch valve; opening…
- Position indication
- yes V1E10537-01 1/4" high pressure latch valve; Integral Microswitch · datasheet p.1 yes V1E10560-01 3/8" high pressure latch valve; Integral Microswitch | yes V1E10763-01 1/4" high pressure latch valve (5000 psi); Integr… | yes V8E10580-01 1/4" high pressure miniature latch valve; Optiona…
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Operating pressure
- up to 5000 psia (350 bar)
- Flow
- Low to High
- Introduction year
- 1988
- Flight heritage
- Boeing HS-702 satellite, various Boeing platforms, vehicles resupplying the International Space Station, leading commercial and scientific satellites
- Mass
- 340 g/0.75 lbm
- Cycle Life
- 25,000 Cycle
- Operating Pressure Range
- 3000 psig
- Proof Pressure
- 4500 psig
- Burst Pressure
- 7500 psig
- Internal Leakage
- <3.0 scch GHe
- External Leakage
- <1 X 10-6 sccs GHe
- Operating temperature
- 28°F to 122°F
- Response Time Opening
- 30 msec @ 20 VDC
- Response Time Closing
- 30 msec @ 20 VDC
- Optional Inlet Filter
- 40 microns absolute
- Dielectric Strength
- 500 VAC RMS @ 60 Hz – 1 min
- Operating Voltage
- 20 – 54 VDC
- Weight
- <340 grams (0.75 lb)
About
The VACCO Propellant Latch Valve is an industry-standard fluid control component utilized aboard many top satellite and spacecraft applications worldwide. Designed and manufactured with technical advantages, the product line offers variations from low to high flow and can handle operating pressures up to 5000 psia (350 bar). This versatility makes it suitable for a wide range of applications, from propellant gauging to fluid isolation. Since its introduction in 1988, VACCO latch valves have been selected by prime manufacturers in the United States, Europe, and Asia. Beyond leading commercial and scientific satellites, these valves also support the resupply of the International Space Station, providing critical fluid control on various vehicles. The VACCO latch valve has been specifically used for propellant gauging to fluid isolation on various Boeing platforms, including the Boeing HS-702 satellite.
Documentation
- latch_valves_high_pressure.pdf PDF source: www.vacco.com ↗
- latch_valves_low_pressure.pdf PDF source: www.vacco.com ↗
- PIV-norm-closed_13097000.pdf PDF source: www.vacco.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
