L-BAND COUPLER
WiRan

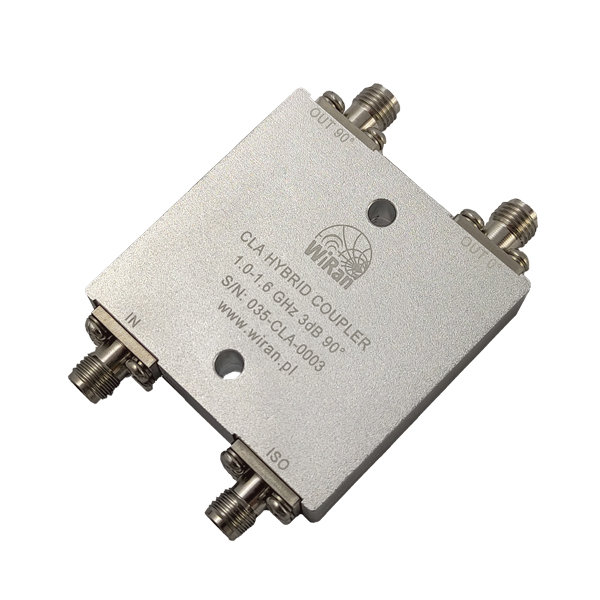

The WiRan 90° Hybrid Coupler for L-band frequencies splits an input RF signal equally between two output ports with a 90-degree phase shift, or combines 90-degree phase shifted signals.
Key figurescomparable across the catalogue
- Mass
- 60 kg
- Power
- 30 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Flight models availability
- in days/weeks, depending on specific requirements
- Frequency
- 1000-1600 MHz
- Insertion Loss
- :50.4 dB
- Return Loss
- 20 dB
- Isolation
- 23 dB
- Nominal Split
- 3.01±0.3 dB
- Amplitude Balance
- :5±0.5 dB
- Phase Balance
- :5±3 o
- Power
- :530 Watt
- Interface
- SMA female connectors
- Mass
- 60 g
About
The WiRan 90° Hybrid Coupler is designed for L-band frequencies and offers a reliable solution for RF signal management. It can effectively split an input RF signal equally into two output ports, introducing a 90-degree phase shift between them. Conversely, it can also combine two 90-degree phase shifted signals. Key features include small dimensions, making it ideal for compact satellite applications, excellent phase and amplitude balance, low insertion loss, low VSWR, high isolation, and high power handling capabilities. Flight Models are available, with lead times depending on specific requirements. Technical specifications and S-Parameters can be provided upon request.
