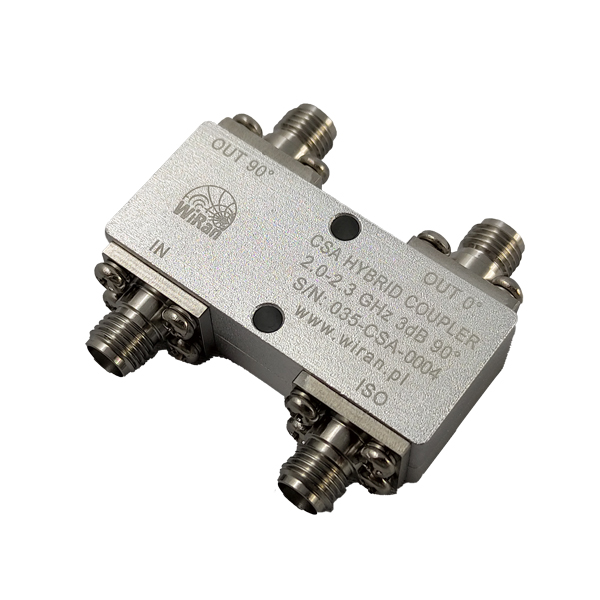

S-Band Coupler
WiRan
The WiRan 90° Hybrid Coupler is designed for splitting an input RF signal equally between two output ports with a 90-degree phase shift, or combining 90-degree phase shifted signals, specifically optimized for compact satellites.
Key figurescomparable across the catalogue
- Mass
- 32 kg
- Power
- 30 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Flight models
- available in days/weeks, depending on specific requirements
- Frequency
- 2000-2300 MHz
- Insertion Loss
- ≤0.4 dB
- Return Loss
- ≥23 dB
- Isolation
- ≥25 dB
- Nominal Split
- 3.01±0.3 dB
- Amplitude Balance
- ≤0.5 dB
- Phase Balance
- ≤3 °
- Power
- ≤30 Watt
- Impedance
- 50 Ω
- Port Connectors
- SMA female connectors
- Operating temperature
- -75…+90 °C
- Mass
- 32 g
About
The WiRan 90° Hybrid Coupler facilitates the easy and reliable splitting of an input RF signal equally between two output ports, introducing a 90-degree phase shift. Conversely, it can also function in reverse, combining 90-degree phase shifted signals. This component is specifically designed with small dimensions, making it ideal for integration into compact satellites. Key features include excellent phase and amplitude balance, low insertion loss, low VSWR (Voltage Standing Wave Ratio), and high isolation. It is fully compatible with other WiRan S-Band products, such as diplexers, antennas, and power splitters operating up to 2.3 GHz. The coupler also boasts high power handling capabilities. Flight Models are available, with delivery times depending on specific requirements. Technical specifications, including STEP files and S-Parameters, are available upon request.
