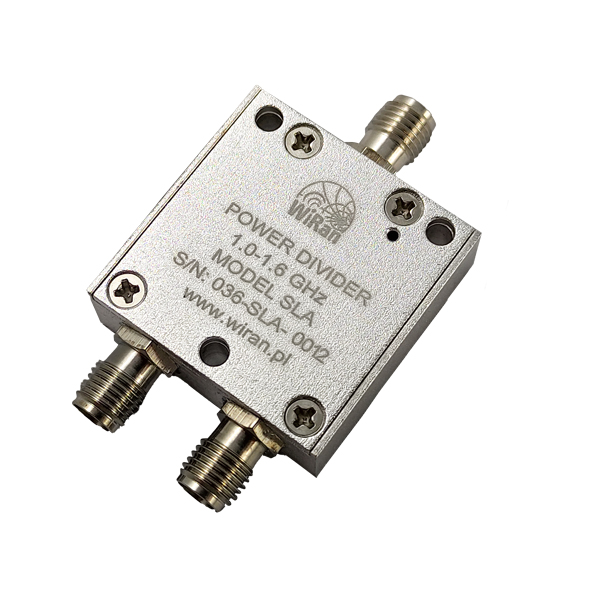

L-BAND SPLITTER
WiRan
The WiRan L-Band Splitter is a power divider designed for CubeSat nanosatellites, enabling the splitting of RF power into two channels with excellent phase and amplitude balance.
Key figurescomparable across the catalogue
- Mass
- 25 kg
- Power
- 10 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Compliance
- CubeSat nanosatellite standard
- Housing material
- alodine coated lightweight aluminum
- Availability
- Flight Models available in days/weeks, depending on specific requirements
- Technical data
- STEP file, S-Parameters available on request (contact us)
- Frequency
- 1000-1600 MHz
- Insertion Loss
- ≤0.35 dB
- VSWR
- Input ≤1.20:1 Output ≤1.15:1
- Isolation
- ≥22 dB
- Amplitude balance
- ≤0.2 dB
- Phase balance
- ±2 °
- Power Handling
- Forward ≤10 Watt
- Operating temperature
- -55…+85 °C
- Mass
- 25 g
- Impedance
- 50 Ω
- Interface
- SMA female connectors
About
The WiRan L-Band Splitter is a power divider engineered for space applications, specifically compliant with the CubeSat nanosatellite standard. It allows for the efficient splitting of RF power into two distinct channels. Key features include excellent phase and amplitude balance, low insertion loss, and favorable VSWR factors, ensuring high isolation between the output channels. The device is housed in a lightweight aluminum casing with an alodine coating, contributing to its durability and suitability for the harsh space environment. Its small dimensions make it ideal for integration into compact satellite designs. The splitter is also designed to operate across a wide temperature range, further enhancing its robustness for space missions. Flight Models are available with lead times depending on specific requirements, and detailed technical data such as STEP files and S-Parameters can be provided upon request.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
