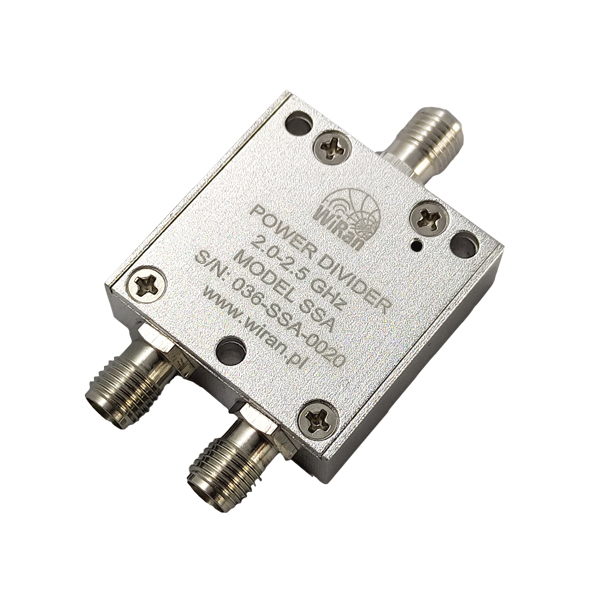

S-BAND SPLITTER
WiRan
The WiRan S-Band Splitter is a power divider designed for CubeSat nanosatellites, splitting RF power into two channels with excellent phase and amplitude balance, low insertion loss, and high isolation.
Key figurescomparable across the catalogue
- Mass
- 25 kg
- Power
- 10 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Compliant with
- CubeSat nanosatellite standard
- Housing
- alodine coated lightweight aluminum
- Compatibility
- other WiRan S-Band products (diplexer, antenna)
- Operational temperature range
- wide
- Frequency
- 2000-2500 MHz
- Insertion Loss
- ≤0.8 dB
- VSWR
- ≤1.25:1
- Isolation
- ≥25 dB
- Amplitude Balance
- ≤0.2 dB
- Phase Balance
- ≤2 °
- Power Handling
- Forward 10 W
- Operating Temperature
- -55…+85 °C
- Mass
- 25 g
- Impedance
- 50 Ω
- RF interface
- SMA female connectors
About
The WiRan S-Band Splitter is a power divider engineered to efficiently split RF power into two distinct channels. It is specifically designed to be compliant with the CubeSat nanosatellite standard, making it suitable for space applications. The splitter offers excellent phase and amplitude balance, ensuring signal integrity, along with low Insertion Loss and VSWR, and high isolation between channels to prevent interference. Its small dimensions are ideal for compact satellites, and it features an alodine coated lightweight aluminum housing for durability and reduced mass. The product is fully compatible with other WiRan S-Band products, such as diplexers and antennas, allowing for integrated RF solutions. It is also designed to operate across a wide operational temperature range, crucial for the harsh space environment. Flight Models are available with varying lead times depending on specific requirements. Technical specifications are available upon request, including STEP files and S-Parameters.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
