WiRan 90° Hybrid Couplers
WiRan
WiRan 90° Hybrid Couplers are compact X-band devices designed for splitting an input RF signal equally between two output ports with a 90-degree phase shift, or combining phase-shifted signals.
Key figurescomparable across the catalogue
- Mass
- 35 kg
- Power
- 30 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Flight models available
- in days/weeks, depending on specific requirements
- Frequency
- 7100-8500 MHz
- Insertion loss
- ≤0.9 dB
- Return loss
- ≥17.5 dB
- Isolation
- ≥20 dB
- Nominal Split
- 3.01±0.5 dB
- Amplitude balance
- ≤±0.5 dB
- Phase balance
- ≤±5 °
- Power
- ≤30 W
- Impedance
- 50 Ω
- Port connectors
- SMA female connectors
- Operating temperature
- -75…+90 °C
- Mass
- 35 g
- Dimensions
- 47 × 16.3 × 11 mm
About

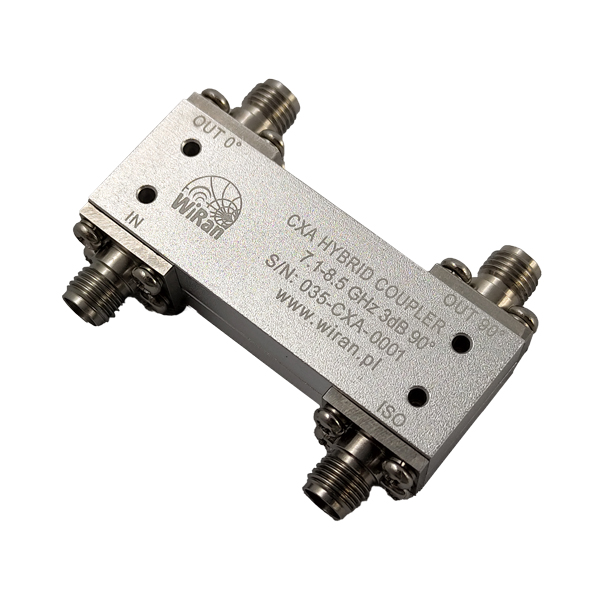

WiRan 90° Hybrid Couplers are designed for reliable splitting of an input RF signal equally between two output ports with a 90-degree phase shift. They can also function in reverse, combining 90-degree phase shifted signals. These couplers feature small dimensions, making them ideal for compact satellites, and offer excellent phase and amplitude balance. Key characteristics include low insertion loss, low VSWR, and high isolation. They are fully compatible with other WiRan X-Band products, such as diplexers, antennas, and power splitters, and are capable of high power handling. Flight Models are available, with lead times depending on specific requirements. STEP files and S-Parameters can be provided upon request.
