X-Band Splitter
WiRan

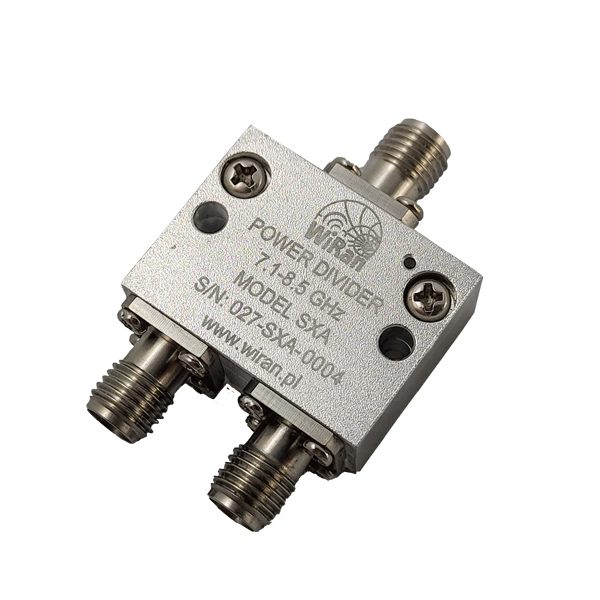

The WiRan X-Band Splitter is a power divider designed for CubeSat nanosatellites, enabling the splitting of RF power into two channels with excellent phase and amplitude balance.
Key figurescomparable across the catalogue
- Mass
- 30 kg
- Power
- 30 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Compliance
- CubeSat nanosatellite standard
- Housing material
- Alodine coated lightweight aluminum
- Availability
- Flight Models available in days/weeks, depending on specific requirements
- Technical data
- STEP file, S-Parameters available on request (contact us)
- Frequency
- 7.1-8.5 GHz
- Insertion loss
- ≤0.5 dB
- Return loss
- ≥17 dB
- Isolation
- ≥20 dB
- Amplitude balance
- ≤±0.2 dB
- Phase balance
- ≤±2 °
- Power
- ≤30 Watt
- Operating temperature
- -75…+90 °C
- Mass
- 30 g
- Impedance
- 50 Ω
About
The WiRan X-Band Splitter is a power divider specifically designed for space applications, particularly compliant with the CubeSat nanosatellite standard. It allows for the easy splitting of RF power into two channels, ensuring excellent phase and amplitude balance, low Insertion Loss, and high isolation between channels. Its small dimensions make it perfect for compact satellites. The device features an alodine coated lightweight aluminum housing, contributing to its suitability for space environments. It is fully compatible with other WiRan X-Band products, such as their diplexer and antenna, facilitating integrated communication solutions. The splitter is designed to operate across a wide operational temperature range, further enhancing its robustness for space missions. Flight Models are available with lead times depending on specific requirements, and STEP files and S-Parameters can be provided upon request.
