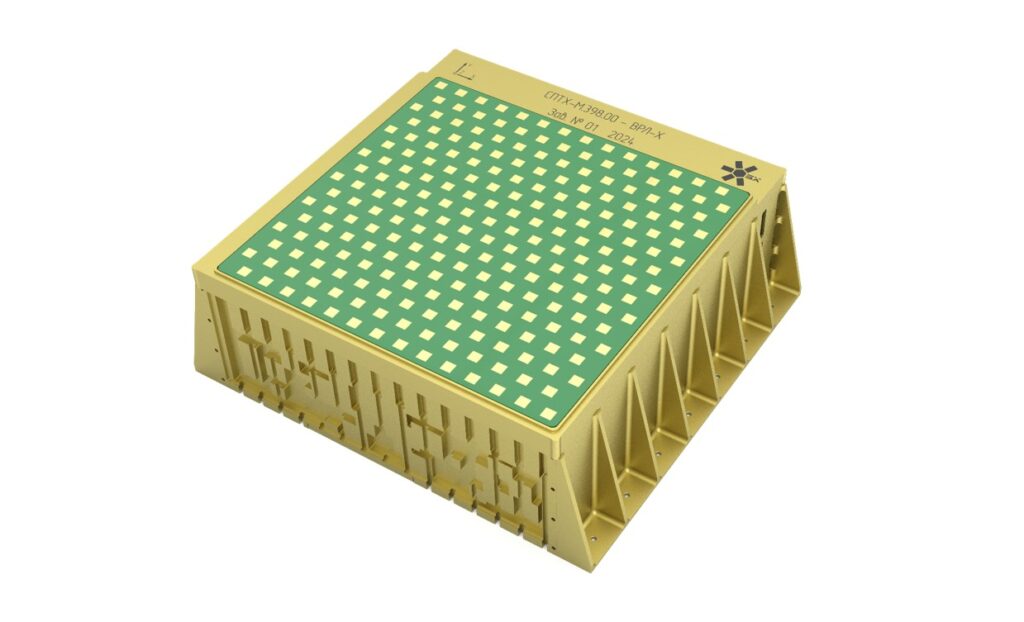

X-band High Data Rate Transmitter
SPUTNIX
An adaptive X-band phased-array transmitter (HDRT-X) providing high-speed downlink of payload data with in-flight adaptive data rate/modulation.
Typed specifications5 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Mass
- 15 000 g product page
- Frequency range
- 8 220 MHz product page
- Envelope (L×W×H)
- 315 x 315 x 120 mm product page
- Power consumption
- 200 W product page 20 W
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Mass
- 15 kg
- Overall dimensions
- 315 x 315 x 120 mm
- Carrier frequency
- 8220 MHz
- Data transfer and reception speed (@ ber 1e-8), mbit/s
- 600-1750
- Power voltage
- 22-34, galvanic isolation
- Probability of trouble-free operation during active existence period (@10 minutes/round)
- 0.987
- Power consumption, operation mode
- 200 W
- Power consumption, standby mode
- 20 W
- Valid temperature range in mounting zone while operating
- -20...+40°C
- Valid temperature range in mounting zone while disabled
- -40...+85°C
- Control interface (redundant)
- Galvanically isolated SpaceWire, 10-200 Mbit/s
- Target information reception interface (redundant)
- x6 TX, x6 RX (2.5 Gbit/s each) or 1GBASE-T/10GBASE-T
- Target information reception speed
- no less than 2.5 Gbit/s
- Symbol rate, mbaud
- 300-350
- Data transmission standard
- DVB-S2/S2X
- Eirp (normally)
- 68 dBm
- Operating scan sector
- ±65° (both planes)
- Polarization
- RHCP/LHCP
About
HDRT-X is a product designed by SPUTNIX LLC to organize a high-speed radio channel between a spacecraft and ground stations. HDRT-X receives target information via a dedicated interface, transforms it into a modulated microwave signal, amplifies it, and radiates it in the direction specified by external commands. HDRT-X is an adaptive data transmission system: it can change the data transfer rate (modulation type, code speed, frame size) within wide limits depending on the actual distance to the spacecraft, weather conditions, the type of ground terminal used (antenna gain), and the current state of the space-segment data transmission equipment (failure management). The system consists of an X-band transmitter implemented on the basis of an active phased array antenna.
