Liquid-Propellant Low-Thrust Thrusters
Yuzhnoye Design Bureau
Yuzhnoye SDO develops and manufactures a family of liquid-propellant low-thrust thrusters incorporated into spacecraft attitude control and orbit correction propulsion systems. These thrusters generate thrust by expelling nitrogen tetroxide and UDMH propellant through a supersonic nozzle and have been flight-proven on Cyclone-3, Cyclone-4, and Okean-O missions across over 100 successful launches. The product line includes […]
Key figurescomparable across the catalogue
- Mass
- 1.16 kg
- Thrust
- 30 N
- Specific impulse
- 203.94 s
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Thrust Range
- 30 to 100 N
- Propellants
- Nitrogen Tetroxide + UDMH
- Cyclone-4 Specific Impulse
- 2,000 m/s
- Cyclone-3 Specific Impulse
- 2,600 m/s
- Cyclone-4 Guaranteed Ignitions
- 30,000
- Okean-O Guaranteed Ignitions
- 50,000
- Cyclone-4 Total Run Time
- 5,600 s
- Okean-O Total Run Time
- 3,600 s
- Cyclone-4 Thruster Mass
- 1.16 kg
- Supply Voltage
- 28 V
About

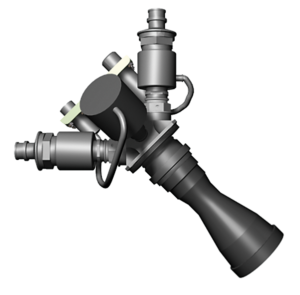

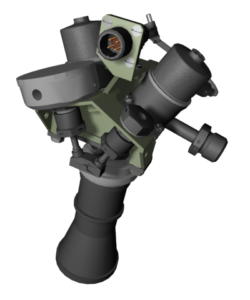

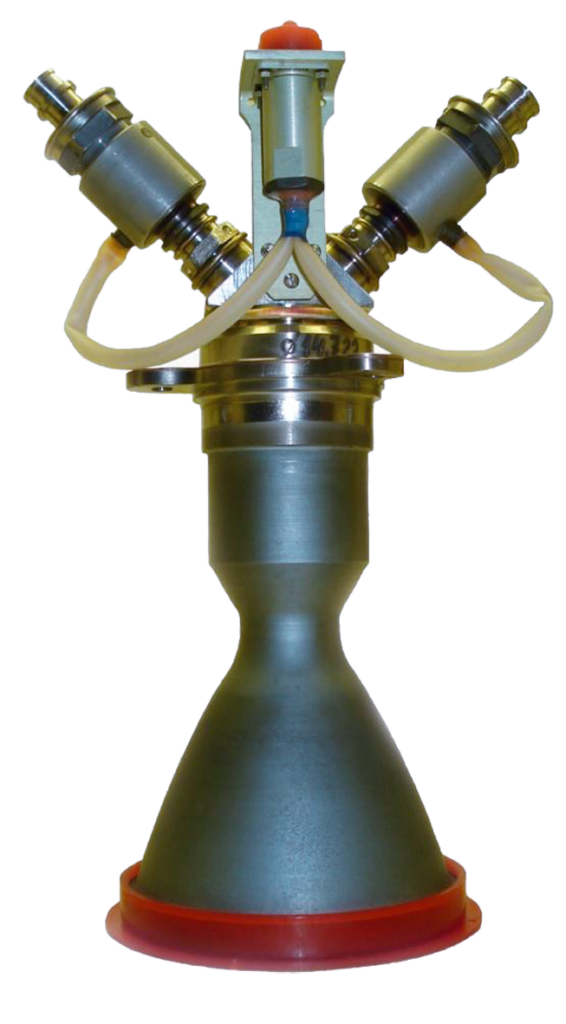

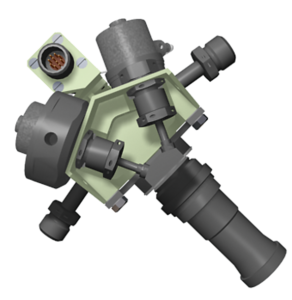

Yuzhnoye SDO develops and manufactures a family of liquid-propellant low-thrust thrusters incorporated into spacecraft attitude control and orbit correction propulsion systems. These thrusters generate thrust by expelling nitrogen tetroxide and UDMH propellant through a supersonic nozzle and have been flight-proven on Cyclone-3, Cyclone-4, and Okean-O missions across over 100 successful launches. The product line includes the Cyclone-4 thruster (30 N, 30,000 guaranteed ignitions, 5,600 s total run time), Cyclone-3 thrusters (30 N and 100 N variants, 1,300 ignitions, 200 s run time), and the Okean-O thruster (30 N, 50,000 guaranteed ignitions, 3,600 s total run time). All variants have completed full qualification testing including climatic, mechanical, firing, and endurance tests. Supply voltage is 28 V across all models.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
