Solid Rocket Motors for Space Launch Vehicles
Yuzhnoye Design Bureau

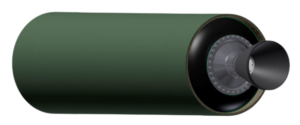

Yuzhnoye SDO develops and manufactures a family of solid-propellant main engines for space launch vehicles and orbital reboost stages. These include high-energy composite propellant main engines with carbon fiber-reinforced plastic (CFRP) cocoon-type casings and swiveling control nozzles for pitch and yaw thrust vector control. Main engines for space launch vehicles achieve external diameters up to […]
Typed specifications1 values
Discloses 1 of 10 fields engineers filter by in this category (category median 3).
- Propellant
- solid propellant product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Main slv engine propellant
- Composite, high-energy
- Main slv engine max diameter
- Up to 2,000 mm
- Main slv engine max thrust
- Up to 150 tf
- Main slv engine casing
- Carbon fiber-reinforced plastic (cocoon type)
- Main slv engine nozzle
- Swiveling control nozzle
- Reboost stage engine max diameter
- Up to 1,250 mm
- Reboost stage engine max thrust
- Up to 10 tf
- Pulsed control srm operating time
- 0.045 to 0.05 s
- Pulsed control srm max thrust
- Up to 500 kgf
- Launch-boost srm max thrust
- Up to 8,000 kgf
- Spacecraft deployment srm swivel angle
- up to +/-60 degrees
About
Yuzhnoye SDO develops and manufactures a family of solid-propellant main engines for space launch vehicles and orbital reboost stages. These include high-energy composite propellant main engines with carbon fiber-reinforced plastic (CFRP) cocoon-type casings and swiveling control nozzles for pitch and yaw thrust vector control. Main engines for space launch vehicles achieve external diameters up to 2,000 mm with thrust up to 150 tf. Reboost stage engines feature diameters up to 1,250 mm and thrust up to 10 tf, also with CFRP casings and swiveling nozzles. Additionally, Yuzhnoye produces a complete range of solid-propellant special engines including pulsed control motors, launch-boost motors, roll control motors, meteorological rocket soft-landing motors, stage slowdown motors, spacecraft deployment motors, and launch gas generators for mortar-type missile ejection.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
