32% class quadruple-junction AlInGaP/AlInGaAs/InGaAs/Ge cell of 30.60 cm2 with 31.3% BOL efficiency and 3.3 g mass.

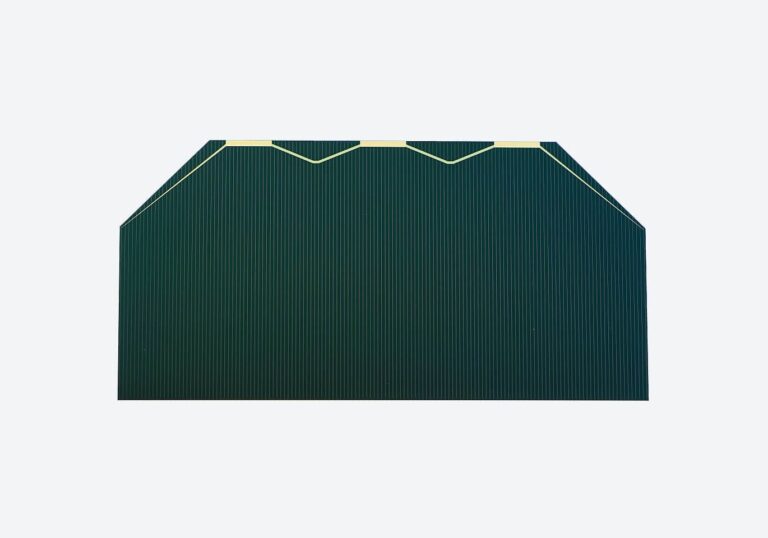

QJ 4G32-Advanced Space Solar Cell (4x8)
32% class quadruple-junction AlInGaP/AlInGaAs/InGaAs/Ge cell of 30.60 cm2 with 31.3% BOL efficiency and 3.3 g mass.
Description
AZUR SPACE's 4G32 solar cells and solar cell assemblies (CIC / SCA) are the ideal solution for space power applications that need to reach the highest power levels on small areas and at low weight. This device offers best-in-class BOL and EOL performance and exceptionally high voltage, enabling a multitude of options and missions.
The cell is a quadruple-junction AlInGaP/AlInGaAs/InGaAs/Ge device on a germanium substrate providing 32% class efficiency, and includes AZUR SPACE's proprietary radiation-hardened design for best EOL performance.
The assembly adds a bypass diode, welded interconnectors and a 100 micrometre AR coated coverglass. This is the standard thickness device variant in the 4 cm x 8 cm format.
Specifications
| Part numbers | 82921 (bare cell) / 82922 (assembly) |
|---|---|
| Base material | AlInGaP/AlInGaAs/InGaAs/Ge on Ge |
| Outer dimensions | 40.08 x 80.08 mm (bare cell) / 40.26 x 80.26 mm (assembly) |
| Cell area | 30.60 cm2 (glassed area 31.34 cm2) |
| Average weight | 3.3 g bare cell (<= 109 mg/cm2) / 4.2 g assembly (<= 139 mg/cm2) |
| Thickness | 195 +/- 25 um bare cell / 330 +/- 50 um assembly |
| Coverglass | 100 um AR coated |
| BOL efficiency at 1367 w/m2 | 31.3% cell / 30.9% CIC |
| BOL voc | 3415 mV |
| BOL isc | 450 mA cell / 445 mA CIC |
| BOL vmp / imp | 3015 mV / 433 mA (cell) |
| Efficiency after 1e15 e/cm2 | 28.2% cell / 27.8% CIC (1367 W/m2) |
