TJ 3G30-Advanced Space Solar Cell (HP)
AZUR SPACE

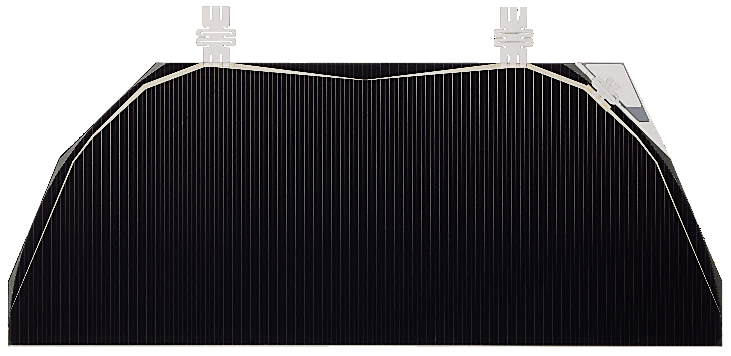

High-power 30% class triple-junction cell of 77.55 cm2 in a 145.9 x 60.7 mm format, 10.4 g bare cell.
Typed specifications85 values
Discloses 6 of 7 fields engineers filter by in this category (category median 2).
- Mass
- 13.1 g assembly (CIC), average · datasheet p.2 13.1 g Assembly (SCA / CIC) | 13.1 g Assembly Average Weight | 10.4 g Bare Cell Average Weight | 10.4 g bare cell, average
- Cell efficiency
- 30 % beginning-of-life (BOL) · datasheet p.1 29.3 % BOL Cell, 1353 W/m2 | 29 % BOL Cell, 1367 W/m2 | 29 % BOL CIC, 1353 W/m2 | 28.7 % BOL CIC, 1367 W/m2 +6
- Envelope (L×W×H)
- 146.10 (± 0.1) x 60.89 (± 0.1) assembly (CIC) outer dimensions · datasheet p.2 146.10 (± 0.1) x 60.89 (± 0.1) Assembly Outer Dimensions | 145.90 (± 0.1) x 60.69 (± 0.1) Bare Cell Outer Dimensions
- TRL
- 9 datasheet p.1
- Array configuration
- solar cell assembly (CIC) bare cell and assembly (SCA / CIC) · datasheet p.1
- Cell type
- triple-junction GaAs InGaP/GaAs/Ge · datasheet p.1
- Cell part number
- AZUR SPACE 3G30C-Advanced bare cell (P/N 82942) / 3G30A-Advanced assembly (P/N 82924) datasheet p.1
- Open-circuit voltage at the panel output (Voc)
- 2.52 V 1E15 e/cm^2, Cell · datasheet p.2 2.52 V 1E15 e/cm^2, CIC | 2.34 V 1E16 e/cm^2, Cell | 2.34 V 1E16 e/cm^2, CIC | 2.58 V 2.5E14 e/cm^2, Cell +8
- Max-power voltage at the panel output (Vmp)
- 2.22 V 1E15 e/cm^2, Cell · datasheet p.2 2.22 V 1E15 e/cm^2, CIC | 2.11 V 1E16 e/cm^2, Cell | 2.11 V 1E16 e/cm^2, CIC | 2.28 V 2.5E14 e/cm^2, Cell +8
- Integrated devices
- bypass diodes assembly (CIC) · datasheet p.1
- Flight heritage
- in-orbit TRL-9 level heritage datasheet p.1
- Max-power current (Imp)
- 1.23 A 1E15 e/cm^2, Cell · datasheet p.2 1.22 A 1E15 e/cm^2, CIC | 0.917 A 1E16 e/cm^2, Cell | 0.906 A 1E16 e/cm^2, CIC | 1.27 A 2.5E14 e/cm^2, Cell +9
- Short-circuit current (Isc)
- 1.27 A 1E15 e/cm^2, Cell · datasheet p.2 1.26 A 1E15 e/cm^2, CIC | 1.01 A 1E16 e/cm^2, Cell | 0.997 A 1E16 e/cm^2, CIC | 1.31 A 2.5E14 e/cm^2, Cell +9
- Cell area
- 77.55 cm² bare cell · datasheet p.2
- Coverglass thickness
- 100 µm CIC, AR coated · datasheet p.2
- Panel thickness
- 0.38 mm Assembly · datasheet p.1 0.245 mm Bare Cell
- Bypass diodes
- per cell corner-mounted Si bypass diode on assembly (CIC) · datasheet p.1
- Power temperature coefficient
- -6.2 %/°C datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Part numbers
- 82942 (bare cell) / 82924 (assembly)
- Base material
- InGaP/GaAs/Ge on Ge
- Outer dimensions
- 145.90 x 60.69 mm (bare cell) / 146.10 x 60.89 mm (assembly)
- Cell area
- 77.55 cm2 (glassed area 78.64 cm2)
- Average weight
- 10.4 g bare cell (<= 134 mg/cm2) / 13.1 g assembly (<= 170 mg/cm2)
- Thickness
- 245 +/- 25 um bare cell / 380 +/- 50 um assembly
- Coverglass
- 100 um AR coated
- BOL efficiency at 1367 w/m2
- 29.0% cell / 28.7% CIC
- BOL voc
- 2700 mV
- BOL isc
- 1317 mA cell / 1303 mA CIC
- BOL vmp / imp
- 2395 mV / 1284 mA (cell)
- Efficiency after 1e15 e/cm2
- 25.8% cell / 25.5% CIC (1367 W/m2)
- Qualification
- ECSS-E-ST-20-08C (Rev. 1); MRL-10 production; on-orbit TRL-9 heritage
About
AZUR SPACE’s 3G30-Advanced bare solar cells and solar cell assemblies (SCA), or CICs (cell-interconnect-coverglass), are the ideal solution for space power applications in conventional or in New Space segments. The HP variant is the large-format high-power member of the family.
The bare cell device is a space-qualified InGaP/GaAs/Ge triple-junction solar cell on a germanium substrate providing 30% class beginning-of-life (BOL) efficiency, and includes AZUR SPACE’s proprietary radiation-hardened design for best EOL performance.
The assembly includes the bare cell, a corner-mounted silicon bypass diode, welded in-plane silver-coated Kovar interconnectors and a 100 micrometre AR coated coverglass bonded with space-grade heritage adhesive.
The 3G30-Advanced technology, cells and assemblies are ECSS-E-ST-20-08C (Rev. 1) qualified, produced in the mature MRL-10 Heilbronn facility, with demonstrated on-orbit TRL-9 level heritage.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
