QJ 4G32-Advanced Space Solar Cell (8×8)
AZUR SPACE
32% class quadruple-junction cell of 60.35 cm2 with 31.1% BOL efficiency, 3415 mV open-circuit voltage and 6.5 g mass.
Typed specifications59 values
Discloses 6 of 7 fields engineers filter by in this category (category median 2).
- Mass
- 6.5 g typ. · datasheet p.2 8.5 g assembly (CIC), average | 8.5 g Assembly (SCA / CIC) | 6.5 g bare cell, average
- Cell efficiency
- 31.1 % BOL, 1367 W/m2 · datasheet p.2 28.1 % cell, after 1E15 1 MeV e/cm2, 1367 W/m2 | 31.4 % cell, BOL, 1353 W/m2 | 31.1 % cell, BOL, 1367 W/m2 | 27.7 % CIC, after 1E15 1 MeV e/cm2, 1367 W/m2 +2
- Envelope (L×W×H)
- 80.00 (± 0.1) x 80.00 (± 0.1) datasheet p.2 80.15 (± 0.05) x 80.15 (± 0.05) assembly (CIC) outer dimensions | 80.00 (± 0.1) x 80.00 (± 0.1) bare cell outer dimensions
- TRL
- 9 datasheet p.1
- Array configuration
- solar cell assembly (CIC) bare cell and assembly (SCA / CIC) · datasheet p.1
- Cell type
- quad-junction AlInGaP/AlInGaAs/InGaAs/Ge · datasheet p.1
- Cell part number
- AZUR SPACE 4G32C-Advanced bare cell (P/N 82883) / 4G32A-Advanced assembly (P/N 82884) datasheet p.1
- Open-circuit voltage at the panel output (Voc)
- 3.2 V 1E15, Cell or CIC · datasheet p.2 2.93 V 1E16, Cell or CIC | 3.29 V 2.5E14, Cell or CIC | 3.33 V 5E13, Cell or CIC | 3.25 V 5E14, Cell or CIC +3
- Max-power voltage at the panel output (Vmp)
- 2.77 V 1E15, Cell or CIC · datasheet p.2 2.56 V 1E16, Cell or CIC | 2.88 V 2.5E14, Cell or CIC | 2.93 V 5E13, Cell or CIC | 2.84 V 5E14, Cell or CIC +3
- Integrated devices
- bypass diodes assembly (CIC) · datasheet p.1
- Flight heritage
- TRL-9 level heritage datasheet p.1
- Max-power current (Imp)
- 0.835 A 1E15, Assembly · datasheet p.2 0.635 A 1E16, Assembly | 0.848 A 2.5E14, Assembly | 0.852 A 5E13, Assembly | 0.845 A 5E14, Assembly +5
- Short-circuit current (Isc)
- 0.878 A 1E15, Assembly · datasheet p.2 0.712 A 1E16, Assembly | 0.886 A 2.5E14, Assembly | 0.888 A 5E13, Assembly | 0.882 A 5E14, Assembly +3
- Cell area
- 60.35 cm² bare cell · datasheet p.2
- Coverglass thickness
- 100 µm CIC, AR coated · datasheet p.2
- Panel thickness
- 0.32 mm assembly · datasheet p.1
- Bypass diodes
- per cell corner-mounted Si bypass diode on assembly (CIC) · datasheet p.1
- Power temperature coefficient
- -8.4 %/°C datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Part numbers
- 82883 (bare cell) / 82884 (assembly)
- Base material
- AlInGaP/AlInGaAs/InGaAs/Ge on Ge
- Outer dimensions
- 80.00 x 80.00 mm (bare cell) / 80.15 x 80.15 mm (assembly)
- Cell area
- 60.35 cm2 (glassed area 61.46 cm2)
- Average weight
- 6.5 g bare cell (<= 107 mg/cm2) / 8.5 g assembly (<= 140 mg/cm2)
- Thickness
- 190 +/- 50 um bare cell / 320 +/- 50 um assembly
- Coverglass
- 100 um AR coated
- BOL efficiency at 1367 w/m2
- 31.1% cell / 30.7% CIC
- BOL voc
- 3415 mV
- BOL isc
- 900 mA cell / 890 mA CIC
- BOL vmp / imp
- 3001 mV / 866 mA (cell)
- Efficiency after 1e15 e/cm2
- 28.1% cell / 27.7% CIC (1367 W/m2)
About
AZUR SPACE’s 4G32 solar cells and solar cell assemblies (CIC / SCA) are the ideal solution for space power applications that need to reach the highest power levels on small areas and at low weight. This device offers best-in-class BOL and EOL performance and exceptionally high voltage.
The cell is a quadruple-junction AlInGaP/AlInGaAs/InGaAs/Ge device on a germanium substrate providing 32% class efficiency, and includes AZUR SPACE’s proprietary radiation-hardened design for best EOL performance.

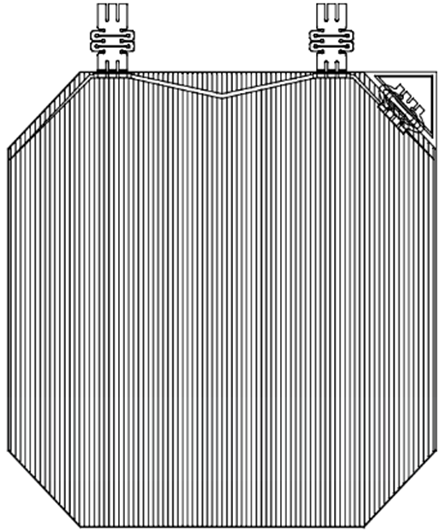

The assembly adds a bypass diode, welded interconnectors and a 100 micrometre AR coated coverglass, in the 8 cm x 8 cm format.
