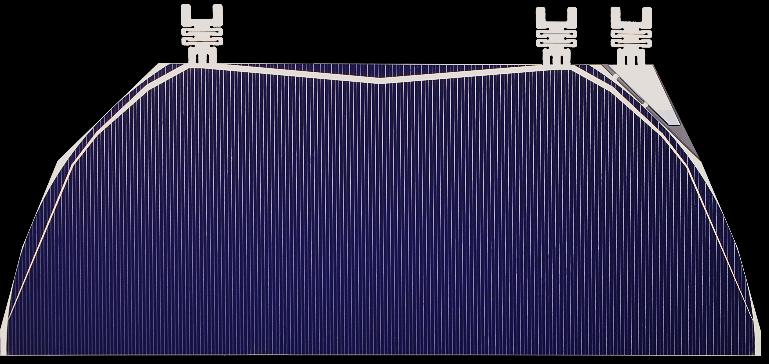

QJ 4G32-Advanced Space Solar Cell (HP)
AZUR SPACE
Large-format 32% class quadruple-junction cell of 77.44 cm2 in a 148 x 60.6 mm format, 30.8% BOL efficiency.
Typed specifications72 values
Discloses 6 of 7 fields engineers filter by in this category (category median 2).
- Mass
- 13.6 g assembly (CIC), average · datasheet p.2 13.6 g Assembly (SCA / CIC) | 10.4 g Bare Cell | 10.4 g bare cell, average
- Cell efficiency
- 32 % datasheet p.1 27.8 % cell, after 1E15 1 MeV e/cm2, 1367 W/m2 | 31.1 % cell, BOL, 1353 W/m2 | 30.8 % cell, BOL, 1367 W/m2 | 27.3 % CIC, after 1E15 1 MeV e/cm2, 1367 W/m2 +2
- Envelope (L×W×H)
- 148.26 (± 0.1) x 60.76 (± 0.1) assembly (CIC) outer dimensions · datasheet p.2 148.26 (± 0.1) x 60.76 (± 0.1) mm Assembly (SCA / CIC) | 148.06 (± 0.1) x 60.56 (± 0.1) mm Bare Cell | 148.06 (± 0.1) x 60.56 (± 0.1) bare cell outer dimensions
- TRL
- 9 datasheet p.1
- Array configuration
- solar cell assembly (CIC) bare cell and assembly (SCA / CIC) · datasheet p.1
- Cell type
- quad-junction AlInGaP/AlInGaAs/InGaAs/Ge · datasheet p.1 quad-junction
- Cell part number
- AZUR SPACE 4G32C-Advanced bare cell (P/N 82902) / 4G32A-Advanced assembly (P/N 82903) datasheet p.1
- Open-circuit voltage at the panel output (Voc)
- 3.19 V 1E15, Cell · datasheet p.2 3.19 V 1E15, CIC | 2.92 V 1E16, Cell | 2.92 V 1E16, CIC | 3.28 V 2.5E14, Cell +8
- Max-power voltage at the panel output (Vmp)
- 2.74 V 1E15, Cell · datasheet p.2 2.74 V 1E15, CIC | 2.53 V 1E16, Cell | 2.53 V 1E16, CIC | 2.85 V 2.5E14, Cell +8
- Integrated devices
- bypass diodes assembly (CIC) · datasheet p.1
- Flight heritage
- in-orbit TRL-9 level heritage datasheet p.1
- Max-power current (Imp)
- 1.07 A 1E15, Cell · datasheet p.2 1.05 A 1E15, CIC | 0.813 A 1E16, Cell | 0.799 A 1E16, CIC | 1.09 A 2.5E14, Cell +9
- Short-circuit current (Isc)
- 1.15 A bare cell, BOL, AM0 1367 W/m2, T = 25°C · datasheet p.2 1.15 A BOL, Cell | 1.13 A BOL, CIC | 1.13 A CIC, BOL, AM0 1367 W/m2, T = 25°C
- Cell area
- 77.44 cm² bare cell · datasheet p.2
- Integrated sensors (as printed)
- corner-mounted silicon bypass diode datasheet p.1
- Coverglass thickness
- 100 µm CIC, AR coated · datasheet p.2
- Panel thickness
- 0.38 mm datasheet p.1
- Bypass diodes
- per cell corner-mounted Si bypass diode on assembly (CIC) · datasheet p.1
- Power temperature coefficient
- -8.4 %/°C datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Part numbers
- 82902 (bare cell) / 82903 (assembly)
- Base material
- AlInGaP/AlInGaAs/InGaAs/Ge
- Outer dimensions
- 148.06 x 60.56 mm (bare cell) / 148.26 x 60.76 mm (assembly)
- Cell total area
- 77.44 cm2 (glassed area 78.62 cm2)
- Average weight
- 10.4 g bare cell (<= 134 mg/cm2) / 13.6 g assembly (<= 175 mg/cm2)
- Thickness
- 245 +/- 25 um bare cell / 380 +/- 50 um assembly
- Coverglass
- 100 um AR coated
- Contacts
- 2x front side pads plus diode pad (cell) / 3x interconnects (assembly)
- BOL efficiency at 1367 w/m2
- 30.8% cell / 30.3% CIC
- BOL voc
- 3405 mV
- BOL isc
- 1153 mA cell / 1134 mA CIC
- BOL vmp / imp
- 2970 mV / 1097 mA (cell)
- Efficiency after 1e15 e/cm2
- 27.8% cell / 27.3% CIC (1367 W/m2)
About
AZUR SPACE’s 4G32 solar cells and solar cell assemblies (CIC / SCA) are the ideal solution for space power applications that need to reach the highest power levels on small areas and at low weight. This device offers best-in-class BOL and EOL performance and exceptionally high voltage. The HP variant is the large-format high-power member of the 4G32 family.
The cell is a quadruple-junction AlInGaP/AlInGaAs/InGaAs/Ge device on a germanium substrate providing 32% class efficiency, and includes AZUR SPACE’s proprietary radiation-hardened design for best EOL performance.
The assembly adds a bypass diode, three welded interconnectors and a 100 micrometre AR coated coverglass.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
