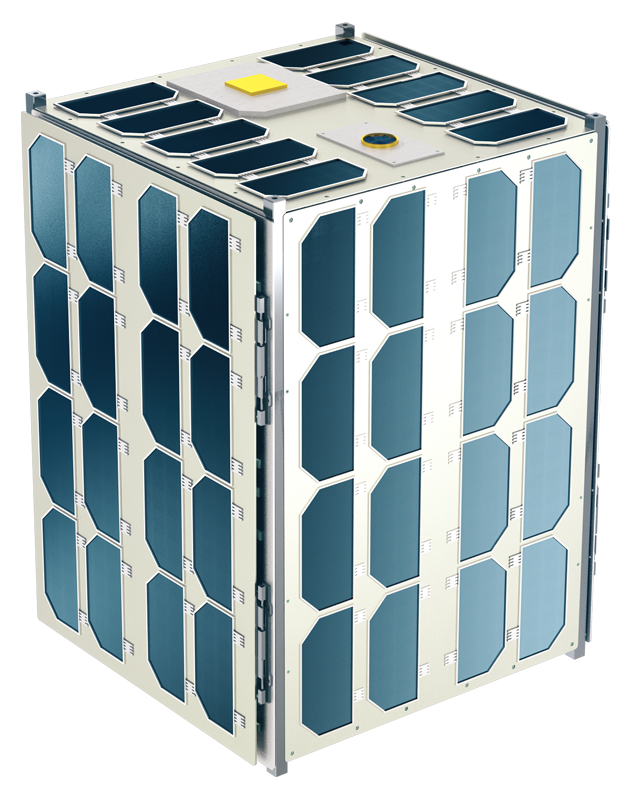

12U Cubesat Platform
Orbital Systems
The largest platform in our 12U CubeSat format line, providing a maximum payload volume of up to 9U.
Typed specifications15 values
Discloses 1 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 16 kg product page 6.5 kg
- Envelope (L×W×H)
- 322x215x215 mm product page
- Power consumption
- 100 W product page 7 W
- Data interface
- CAN product page RS-422 | I2C | SPI | UART +1
- Form factor
- 12U from product name · product page
- Payload volume, U
- 9 U product page
- Regulated voltages for the payload
- 3.3 V product page 5 V
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Payload Volume
- 9U
- Peak Power Consumption
- 100 W
- Maximum Mass
- 16 kg
- Interfaces
- I2C, UART, CAN, SPI, 100BASE-TX Ethernet port, RS422
- Power Channels
- 3.3 V, 5 V, 3-18 D VBAT
- Platform Size
- 322x215x215 mm
- Platform Mass
- 6.5 kg
- Service System Consumption
- 7 W
- Flight History
- planned since 2022
About
The 12U Cubesat Platform is the largest platform in our 12U CubeSat format line, providing a maximum payload volume of up to 9U. The 12U platform includes a propulsion system capable of performing high-impulse maneuvers such as: orbital insertion, orbit maintenance, precise formation flight, orbit synchronization, and atmospheric drag compensation. This ensures an increased active lifespan of the satellite in its target orbit and opens up new opportunities for unique missions for our customers.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
