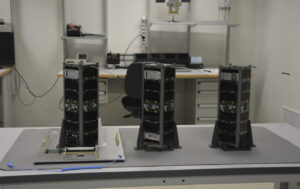

3U Cubesat Platform
Orbital Systems
The 3U format platform offers an optimal combination of low platform mass and the necessary volume for accommodating the target payload.
Typed specifications15 values
Discloses 2 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 1 kg product page 1.5 kg
- Envelope (L×W×H)
- 340x100x100 mm product page
- Power consumption
- 50 W product page 1.8 W
- Data interface
- CAN product page I2C | SPI | UART
- Form factor
- 3U from product name · product page
- Max payload mass
- 1 kg product page
- Payload volume, U
- 1.5 U product page
- Regulated voltages for the payload
- 3.3 V product page 5 V
- Flight heritage
- since 2019 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier9 lines, in the manufacturer's own wording
- Payload Volume
- 1.5U
- Peak Power Consumption
- 50 W
- Maximum Payload Mass
- 1 kg
- Interfaces
- I2C, UART, CAN, SPI
- Power Channels
- 3.3 V, 5 V, VBAT
- Platform Size
- 340x100x100 mm
- Platform Mass
- 1.5 kg
- Service Systems Consumption
- 1.8 W
- Flight Heritage
- since 2019
About
The 3U format platform represents an optimal combination of low platform mass and the necessary volume for accommodating the target payload. It also includes a precise orientation system, sufficient to support a full radio communication operational cycle. This platform is suitable for various space missions requiring a compact yet capable solution. It has a flight heritage since 2019.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
