3U platform
Orbital Systems

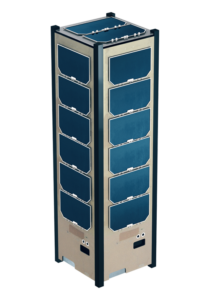

The 3U platform is a CubeSat platform designed to offer a balance of low mass and sufficient volume for various mission payloads, featuring a precision attitude control system.
Typed specifications13 values
Discloses 1 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 1 kg product page 1.5 kg
- Envelope (L×W×H)
- 340×100×100 mm product page
- Power consumption
- 50 W product page 1.8 W
- Data interface
- CAN product page I2C | SPI | UART
- Form factor
- 3U from product name · product page
- Regulated voltages for the payload
- 3.3 V product page 5 V
- Flight heritage
- Since 2019 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Pu volume
- 1.5U
- Peak consumption (PU)
- 50 W
- Maximum mass (PU)
- 1 kg
- Interfaces
- I2C, UART, CAN, SPI
- Power channels
- 3.3 V, 5 V, VBAT
- Dimensions
- 340×100×100 mm
- Platform mass
- 1.5 kg
- System consumption
- 1.8 W
- Onboard memory
- 4 Gb
- Communication modules
- S/VHF/UHF
- Active service life
- 2 years
- Flight heritage
- Since 2019
About
The 3U platform is a satellite platform that provides an optimal combination of low mass and adequate volume, making it suitable for accommodating a variety of mission payloads. It is equipped with a precision attitude control system, which is capable of maintaining full platform radio operations. This platform is designed for CubeSat missions, offering a compact yet versatile solution for space-based applications.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
