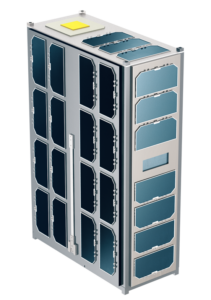

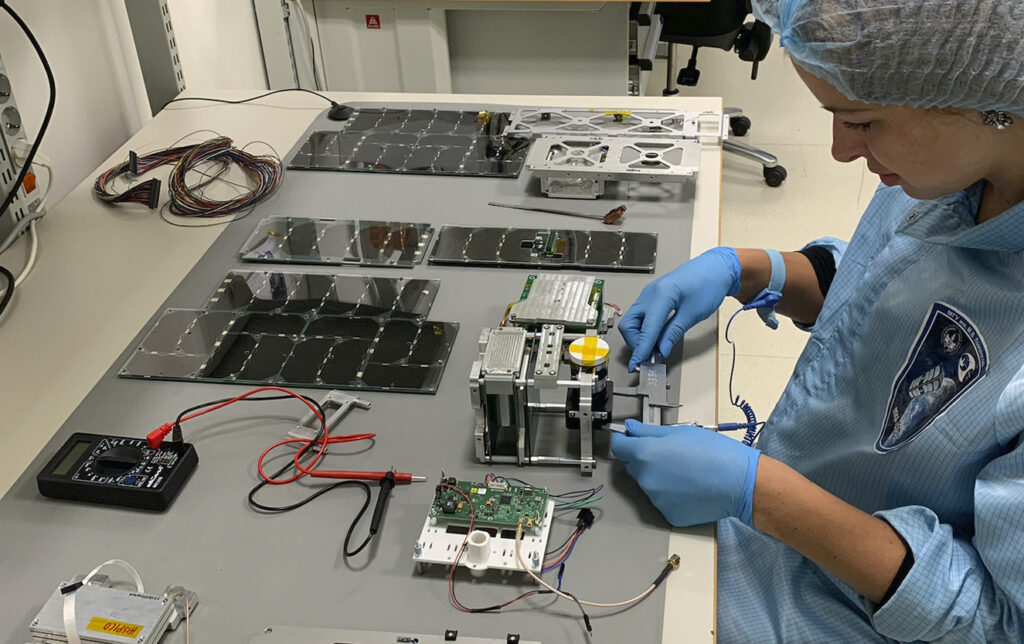

6U CubeSat Platform
Orbital Systems
6U CubeSat platform with 4U payload volume, Ethernet and RS422 interfaces, flight heritage since 2020.
Typed specifications15 values
Discloses 1 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 7.5 kg product page 4.5 kg
- Envelope (L×W×H)
- 340×200×100 mm product page
- Power consumption
- 75 W product page 6 W
- Data interface
- CAN product page RS-422 | I2C | SPI | UART +1
- Form factor
- 6U from product name · product page
- Regulated voltages for the payload
- 3.3 V product page 5 V
- Flight heritage
- Since 2020 product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Pu volume
- 4U
- Peak consumption (PU)
- 75 W
- Maximum mass (PU)
- 7.5 kg
- Interfaces
- I2C, UART, CAN, SPI, 100BASE-TX Ethernet, RS422
- Power channels
- 3.3 V, 5 V, VBAT
- Dimensions
- 340×200×100 mm
- Platform mass
- 4.5 kg
- System consumption
- 6 W
- Onboard memory
- 8 Gb
- Communication modules
- X/S/VHF/UHF
- Active service life
- 3.5 years
- Flight heritage
- Since 2020
About
The 6U platform is now becoming the standard format for CubeSat small satellite missions needing to host multiple payloads simultaneously. Additionally, for missions requiring additional performance, service life, and payload volume, the 6U CubeSat platforms are the ideal choice for both commercial and government customers.
The platform provides 4U of payload volume with up to 75 W peak power for the payload unit, and supports a maximum payload mass of 7.5 kg. Extended interfaces include I2C, UART, CAN, SPI, 100BASE-TX Ethernet port, and RS422. Communication modules support X/S/VHF/UHF bands with 8 Gb onboard memory.
Flight heritage: first launched in 2020. System consumption is 6 W, platform mass 4.5 kg. Designed for a 3.5-year active service life.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
