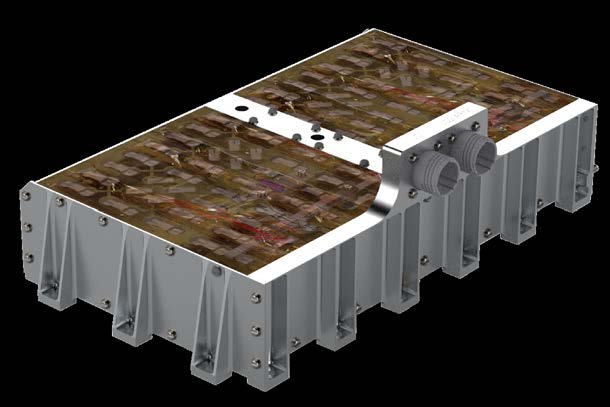

ABSL CM1040 36s4p Li-ion Space Battery (126 V, 8 Ah)
EnerSys / ABSL Space Products
Fully qualified 1066 Wh Li-ion space battery in 36s4p topology, used on launch vehicles including for Thrust Vector Control, 8.4 kg.
Typed specifications29 values
Discloses 6 of 12 fields engineers filter by in this category (category median 5).
- Energy
- 1 066 Wh datasheet p.1 1 066 Wh energy
- Mass
- 8 400 g nom. · measured · datasheet p.1 8 400 g | 8 400 g measured
- Capacity
- 8 Ah datasheet p.1 8 Ah nameplate capacity
- Cell chemistry
- Li-ion datasheet p.1 Li-ion (unspecified) Li-ion Space Battery, ABSL P20 cell
- Envelope (L×W×H)
- 209 x 362 mm (footprint), 115 mm (height) datasheet p.1
- Supply voltage
- 126 V nom. · datasheet p.1 108 V min · range | 151.2 V max · range | 108–151.2 V voltage range | 126 V nom. · pack
- Operating temperature
- 0–40 °C operating (thermal chamber only) · datasheet p.2
- Radiation tolerance (TID)
- 10 000 krad cell level radiation exposure, <1% decrease in capacity · datasheet p.2
- Cell configuration
- 36s4p topology · datasheet p.1
- Nominal voltage
- 126 V nom. · from product designation CM1040 36s4p P20 126V · datasheet p.1
- Connector
- Two keyed circular connectors, one used to connect to system power datasheet p.1
- Survival temperature
- -20–60 °C non-operating (cell level qual only) · datasheet p.2
- Random vibration
- 20 g RMS random vibration, overall, duration 4 · datasheet p.2
- Flight heritage
- over 5.5 billion cell hours of in-orbit heritage using ABSL™ Li-ion cell technology datasheet p.1
- Shock qualification
- 40 g 100 Hz · datasheet p.2 3 000 g 10000 Hz | 3 000 g 2000 Hz | 3 000 g 2000-10,000 Hz, 3 shocks per axis
- Cell model
- P20 (ABSL) datasheet p.1
- Cell balancing
- none does not require cell balancing electronics · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Cell
- ABSL P20
- Topology
- 36s4p
- Voltage range
- 151.2 - 108.0 V
- Nameplate capacity
- 8 Ah
- Energy
- 1066 Wh
- Footprint
- 209 x 362 mm
- Height
- 115 mm
- Mass (measured)
- 8.4 kg
- Connectors
- Two keyed circular connectors; no cell balancing electronics required
- Flight heritage
- Flown on various launch vehicles, including Thrust Vector Control applications
About
The ABSL CM1040 in 36s4p topology is a Li-ion space battery built on the ABSL P20 cell.
Fully qualified for space applications, this battery has been utilised on various launch vehicles, including for Thrust Vector Control (TVC). The design incorporates two keyed circular connectors, with one being used to connect to system power, and does not require cell balancing electronics, making it easy to store, use and integrate into the spacecraft.
EnerSys ABSL products have been successfully powering spacecraft since 2000: the longest operating rechargeable Li-ion battery in space, the first to orbit Earth, Mars and Venus, the closest to orbit the sun, and the batteries trusted to power the James Webb Telescope. ABSL batteries have logged over 6.5 billion cell hours in space without a mission failure.
