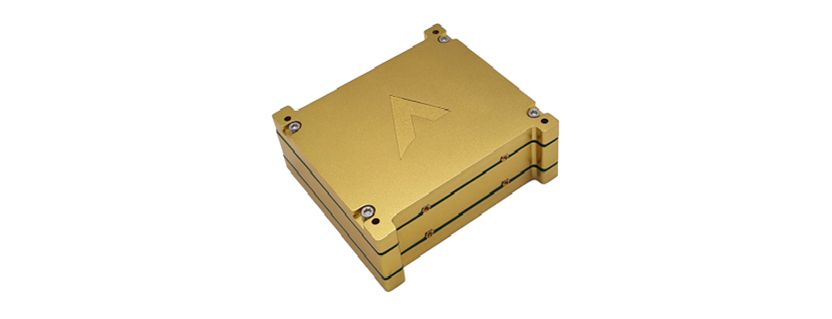

X-Band SATCOM Transceiver X-TR-DL-78
Arralis
The X-TR-DL-78 is a compact X-band SATCOM transceiver covering TX 8-8.5 GHz and RX 7-7.5 GHz, delivering 1 W linear / 2 W saturated output power with a 1.8 dB noise figure, suitable for military satellite and space applications.
Typed specifications14 values
Discloses 2 of 13 fields engineers filter by in this category (category median 3).
- Mass
- 1 000 g max · product page
- Frequency range
- 8 000–8 500 MHz product page 7 000–7 500 MHz | 200–700 MHz | 200–700 MHz
- Envelope (L×W×H)
- 96 x 91 x 33 mm product page
- TX RF output power
- 1 W product page 2 W
- Supply voltage
- 12–36 V product page 6–42 V
- Power consumption
- 1 W product page 2 W
- Operating temperature
- -40 °C product page
- Connector
- SMA (TX/RX), SMPM edge-mount (IF) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Tx frequency
- 8-8.5 GHz
- Rx frequency
- 7-7.5 GHz
- Tx if frequency
- 200-700 MHz
- Rx if frequency
- 200-700 MHz
- Lo reference
- 10 MHz
- Tx output power (linear)
- 1 W (30 dBm)
- Tx output power (saturated)
- 2 W (33 dBm)
- Tx conversion gain
- 30 dB
- Rx conversion gain
- 30 dB
- Rx noise figure
- 1.8 dB
- Tx supply voltage
- 12-36 VDC
- Rx supply voltage
- 6-42 VDC
- Dimensions
- 96 x 91 x 33 mm
- Mass
- <1 kg
- Operating temperature
- -40C to +70C
- RF connectors
- SMA (TX/RX), SMPM edge-mount (IF)
- Grade
- Commercial, Space
About
The X-TR-DL-78 is a compact X-band SATCOM transceiver developed by Arralis, providing a complete transmit and receive solution for military satellite communications and space payload applications. The transmit path operates at 8-8.5 GHz and the receive path at 7-7.5 GHz, both using a 10 MHz LO reference and supporting IF frequencies of 200-700 MHz.
The transmitter delivers 1 W (30 dBm) linear output power and up to 2 W (33 dBm) saturated power, with 30 dB conversion gain and phase noise performance of -123 to -80 dBc/Hz. The receive path achieves 30 dB conversion gain with an industry-leading noise figure of 1.8 dB, enabling reception of weak satellite signals with high sensitivity. Spurious content is suppressed to -60 dBc.
Powered by a wide-range supply of 12-36 VDC (TX) or 6-42 VDC (RX) and operating across -40C to +70C, the module is qualified for both commercial and space-grade environments. The compact 96x91x33 mm aluminum enclosure weighs less than 1 kg and uses SMA connectors for TX/RX RF ports and SMPM edge-mount connectors for IF. It is designed for X-band satellite ground terminals, smallsat payloads, and defense communications systems.
