DRSA-2500B / TRSA-2500B Dual/Triple Spectrum Analyzer
AVCOM of Virginia
Dual or triple embedded spectrum analyzers in 1U rack, for simultaneous multi-carrier satellite signal monitoring.
Technical specifications
- Frequency Range
- 5 MHz – 2,300 MHz
- Span Width
- Up to 1300 MHz
- Resolution Bandwidth
- 10 kHz, 100 kHz, 300 kHz, 1 MHz
- RF Sensitivity
- >-85 dBm typical
- Dynamic Range
- 50 dBm GUI window
- Amplitude Accuracy
- ±1 dB typical
- Frequency Accuracy
- ±1 kHz typical
- Max RF Input
- 25 VDC MAX, +30 dBm (1W)
- Input Impedance
- 50 Ω
- Input Connector
- BNC standard (F and TNC available)
- Operating Temperature
- -10°C to +60°C
- Size (DRSA-2500B)
- 19" W × 18" L × 1.75" H
- Weight (DRSA-2500B)
- 5.4 lbs
- Weight (TRSA-2500B)
- 6.4 lbs
- Power Requirements
- +15 VDC / 9W
About

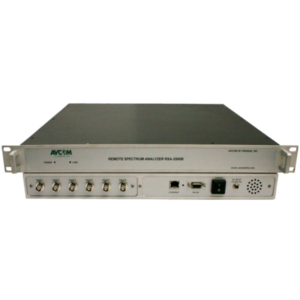

The AVCOM DRSA-2500B and TRSA-2500B are dual and triple spectrum analyzers packaged in a 1U rack-mount chassis. The system utilizes two or three single board SBS spectrum analyzers, each with discrete inputs monitored and controlled simultaneously. This enables real-time monitoring of multiple carriers on the same screen via AVCOM remote control software, offering space-saving advantages for facilities with limited rack space. The DRSA-2500B houses two analyzers and the TRSA-2500B houses three, both in a compact 1RU enclosure ideal for teleport, broadcast, and satellite monitoring facilities. Frequency coverage spans 5 MHz to 2,300 MHz with multiple resolution bandwidth options.
