About AVCOM of Virginia

<p>AVCOM of Virginia Inc. was founded in 1976 and initially served the satellite communications industry with its PSR-3 Satellite Receiver. Over nearly five decades, the company has grown into a vertically integrated manufacturer with deep expertise in RF spectrum analysis and satellite signal monitoring.</p>
<p>AVCOM designs and builds its products in-house, serving systems integrators, antenna controller manufacturers, and satellite operators worldwide. Their product lines span embedded board-level receivers, rackmount units, and standalone L-Band devices, all engineered for demanding stationary and on-the-move satellite applications.</p>

Company Info

Headquarters United States

Specializations

manufacturer

Website avcomofva.com ↗

Email customerservice@avcomofva.com

Photos 3

Products

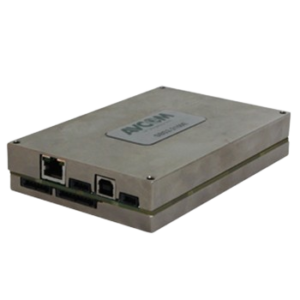

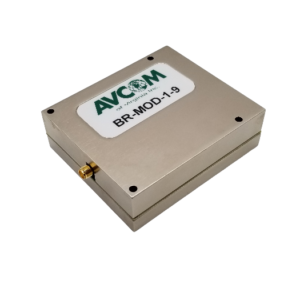

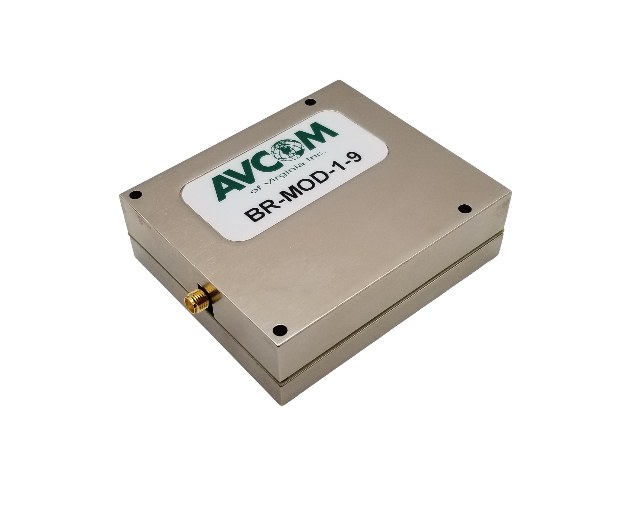

The BR-MOD (Series) is a satellite beacon receiver designed for embedded applications, capable of tracking CW, BPSK, and DVB-like carrier signals, and also functions as a full-function spectrum analyzer.

1 60

Input connectors	SMA
Nominal input impedance	50 Ω (SMA)
Max DC input voltage	25 V
Input frequency range: model 2290 (Default)	MIN (MHz) 900, MAX (MHz) 2200
Input frequency range: model 3040	MIN (MHz) 400, MAX (MHz) 3000
Input frequency range: model 6070	MIN (MHz) 70, MAX (MHz) 6000
Max span width	1300 MHz
Min tuning step size	1 kHz
Resolution bandwidth	1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz
Reference levels	-40 dBm, -30 dBm, -20 dBm, -10 dBm
Maximum input power level	-10 dBm
RF sensitivity (-40 REF LVL)	-100 dBm
Spur free dynamic range (3kHz RBW)	60 dB
Noise floor (-40 REF LVL, 3kHz RBW)	-100 dBm, -134 dB/Hz
Noise floor (-10 REF LVL, 3kHz RBW)	-70 dBm, -104 dB/Hz
Isolation between inputs	>40 dB typical
Amplitude accuracy	+/- 1 dB typical
Frequency accuracy	+/- 1 kHz typical
Phase noise (2 ghz): offset frequency 10 khz	-100 dBc/Hz
Phase noise (2 ghz): offset frequency 100 khz	-100 dBc/Hz
Phase noise (2 ghz): offset frequency 1 mhz	-109 dBc/Hz
Tracking algorithm	PEAK FOLLOWING, CEPT (CARRIER EDGE POWER TRACKING)
Beacon/carrier type	CW, or BPSK signals (No Demod); Wideband carrier signals (DVB-like) (No Demod)
Detection bandwidth	10 to 750 kHz; N/A
Tracking bandwidth	10 to 150 kHz; N/A
Cept bandwidth	N/A; 1 MHz to 30 MHz
Update rate / track rate	10 Hz, 25 Hz, or 100 Hz; 10 Hz, or 25 Hz
Acquisition/tracking level	Minimum C/N0: 39 dB-Hz; Minimum C/N0: 54 dB-Hz
Detected level filtering	Low-Pass Filter: 0.25 Hz, 0.5 Hz, 1 Hz, 2 Hz, or 3 Hz
Acquisition time	<1 second typical
Adjustable delay before lock	0 to 5000 milliseconds
Beacon receiver operation notes	Only one beacon receiver operation may run at a time. The operation must be stopped before modifying settings.
Special feature	Spectrum Analyzer features are available when Beacon Receiver is not running
Ethernet	10/100, Magnetics on-board, DHCP or Static, 4-pin Molex
Serial	RS422 or RS232 (Selectable via external select pin) 115200 8n1, 9-pin Molex
USB	115200 8n1, 3-pin Molex
Beacon receiver outputs	Analog and Digital outputs, 6-pin Molex
M & c: evo gui (ETHERNET)	Yes
M & c: posix-c api sbs2api (ETHERNET)	Yes
M & c: web-gui (ETHERNET)	Yes
M & c: posix-c api sbs2api (SERIAL)	Yes
M & c: text-based api (SERIAL)	Yes
M & c: evo gui (USB)	Yes
M & c: posix-c api sbs2api (USB)	Yes
M & c: text-based api (USB)	Yes
Connector	6-pin Molex
Analog signal strength indicator output	0 to 10 VDC, 10 mA
Analog slope	0.1 to 3.0 V/dB
Analog slope polarity	Positive or Negative
Analog output filtering	Low-Pass, 0.5 Hz, fixed.
Digital lock indicator output	0 – 3.3 VDC
Digital lock indicator output polarity	Adjustable (H=LOCK or L=LOCK)
Power connector	2-pin Molex
Power supply	8 – 33 VDC, < 3 W with reverse polarity, surge, and spike protection
Dimensions	3 in. x 3.5 in. x 1.062 in.
Mass	7.1 oz; 200 g
Operating temperature	-40°C to 70°C
Storage temperature	-40°C to 85°C
Humidity	0 to 95%, non-condensing
Max operating altitude	40,000 ft; 12,000 m

Dual or triple embedded spectrum analyzers in 1U rack, for simultaneous multi-carrier satellite signal monitoring.

1 15

Frequency range	5 MHz – 2,300 MHz
Span width	Up to 1300 MHz
Resolution bandwidth	10 kHz, 100 kHz, 300 kHz, 1 MHz
RF sensitivity	>-85 dBm typical
Dynamic range	50 dBm GUI window
Amplitude accuracy	±1 dB typical
Frequency accuracy	±1 kHz typical
Max RF input	25 VDC MAX, +30 dBm (1 W)
Input impedance	50 Ω
Input connector	BNC standard (F and TNC available)
Operating temperature	-10°C to +60°C
Dimensions (DRSA-2500B)	19" W × 18" L × 1.75" H
Mass (DRSA-2500B)	5.4 lbs
Mass (TRSA-2500B)	6.4 lbs
Power requirements	+15 VDC / 9 W

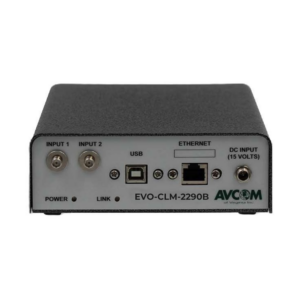

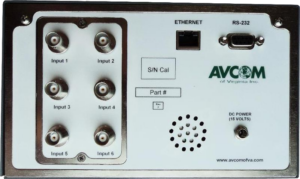

Compact spectrum analyzer built on DSP/FPGA platform, supports Ethernet/USB, 900–3000 MHz or 400–3000 MHz.

2 18

Frequency range (Model 2290)	900–2200 MHz
Frequency range (Model 3040)	400–3000 MHz
Max span width	1300 MHz
Resolution bandwidth	1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz
RF sensitivity (-40 REF LVL)	-100 dBm
Spur free dynamic range (3 kHz RBW)	60 dB
Noise floor (-40 REF LVL, 3 kHz RBW)	-100 dBm / -134 dB/Hz
Amplitude accuracy	±1 dB typical
Frequency accuracy	±1 kHz typical
Phase noise @ 2 ghz (10 kHz offset)	-100 dBc/Hz
Ethernet	10/100, DHCP or Static, RJ45
USB	115200 8n1, USB-B
M&c interfaces	EVO GUI, POSIX-C API, SBS2 API, WEB-GUI
Power supply	15 VDC, 0.5 A
Dimensions	1.9 × 5.63 × 8.3 inches
Mass	1.6 lbs (0.71 kg)
Operating temperature	-20°C to 55°C
Max operating altitude	40,000 ft (12,000 m)

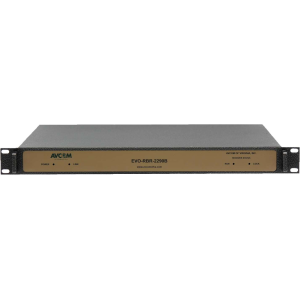

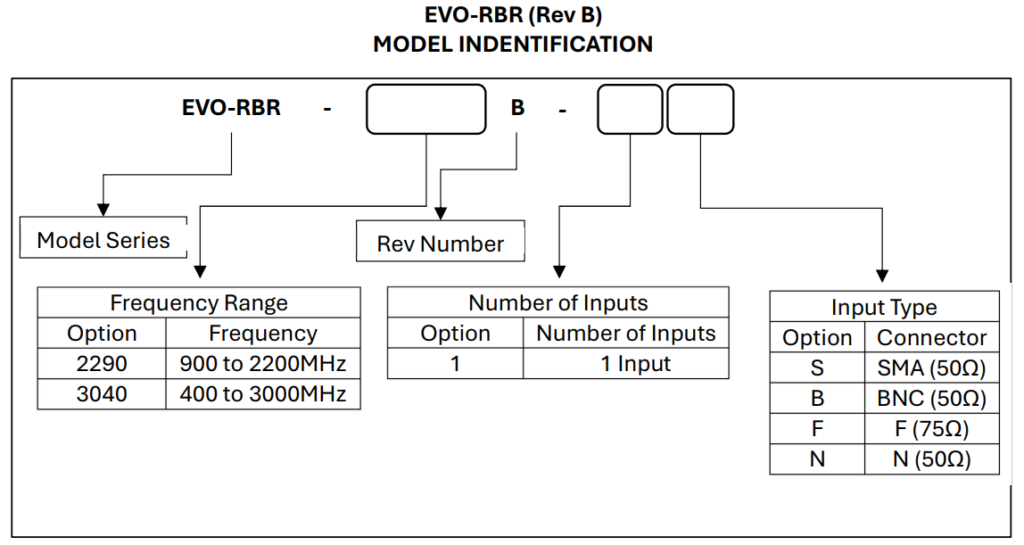

The EVO-RBR is a satellite beacon receiver designed for reliable operation and monitoring in rackmount applications, capable of tracking CW, BPSK, and DVB-like satellite beacon carriers.

1 60

Input connectors	SMA, BNC, F, and/or N
Nominal input impedance	50 Ω (SMA, BNC, N) 75 Ω (F)
Max DC input voltage	25 V
Input frequency range: model 2290 min	900 MHz
Input frequency range: model 2290 max	2200 MHz
Input frequency range: model 3040 min	400 MHz
Input frequency range: model 3040 max	3000 MHz
Input frequency range: model 6070 min	70 MHz
Input frequency range: model 6070 max	6000 MHz
Max span width	1300 MHz
Min tuning step size	1 kHz
Resolution bandwidth	1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz
Reference levels	-40 dBm, -30 dBm, -20 dBm, -10 dBm
Maximum input power level	-10 dBm
RF sensitivity (-40 REF LVL)	-100 dBm
Spur free dynamic range (3kHz RBW)	60 dB
Noise floor (-40 REF LVL, 3kHz RBW)	-100 dBm, -134 dB/Hz
Noise floor (-10 REF LVL, 3kHz RBW)	-70 dBm, -104 dB/Hz
Isolation between inputs	>40 dB typical
Amplitude accuracy	+/- 1 dB typical
Frequency accuracy	+/- 1 kHz typical
Phase noise (2 ghz): offset frequency 10 khz	-100 dBc/Hz
Phase noise (2 ghz): offset frequency 100 khz	-100 dBc/Hz
Phase noise (2 ghz): offset frequency 1 mhz	-109 dBc/Hz
Detection bandwidth	10 to 750 kHz
Tracking bandwidth	10 to 150 kHz
Detected level filtering	Low-Pass, User-Select: 0.25 Hz, 0.5 Hz, 1.0 Hz, 2.0 Hz, 3.0 Hz
Search/track rate	User-Selectable: 10 Hz, 25 Hz, 100 Hz
Acquisition time	<1 second typical
Adjustable delay before lock	0 to 5000 milliseconds
Acquisition/tracking level	Minimum C/No, 39 dB-Hz
Beacon/carrier type	CW, BPSK (No Demod), CEPT(Carrier- Edge-Power-Track) on DVB (No Demod)
Special feature	Spectrum Analyzer features are available when Beacon Receiver is not running
Ethernet	10/100, DHCP or Static, RJ45
Serial	RS232, 115200 8n1, DB-9
USB	115200 8n1, USB-B
Beacon receiver outputs	Analog and Digital outputs, 6-Pos Terminal Block
M & c: evo gui ethernet	Yes
M & c: evo gui USB	Yes
M & c: posix-c api sbs2api ethernet	Yes
M & c: posix-c api sbs2api serial	Yes
M & c: posix-c api sbs2api USB	Yes
M & c: text-based api serial	Yes
M & c: text-based api USB	Yes
M & c: web-gui ethernet	Yes
Connector	6-Pos Terminal Block
Analog signal strength indicator output	0 to 10 VDC, 10 mA
Analog slope	0.1 to 3.0 Volts/dB
Analog slope polarity	Positive or Negative
Analog output filtering	Low-Pass, 0.5 Hz, fixed.
Digital lock indicator output	0 – 3.3 VDC
Digital lock indicator output polarity	Adjustable (H=LOCK or L=LOCK)
Power connector	Barrel Connector Jack
Power supply	15 VDC, 0.5 A
Dimensions	1 RU, 19 in. x 18.13 in. x 1.72 in. 48.26 cm x 46.04 cm x 4.37 cm
Mass	7.2 lbs, 3.27 kg
Operating temperature	0°C to 50°C
Storage temperature	-40°C to 85°C
Humidity	0 to 95%, non-condensing
Max operating altitude	40,000 ft; 12,000 m

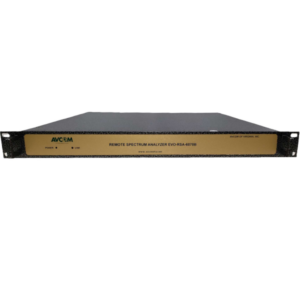

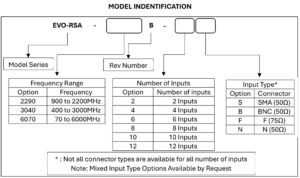

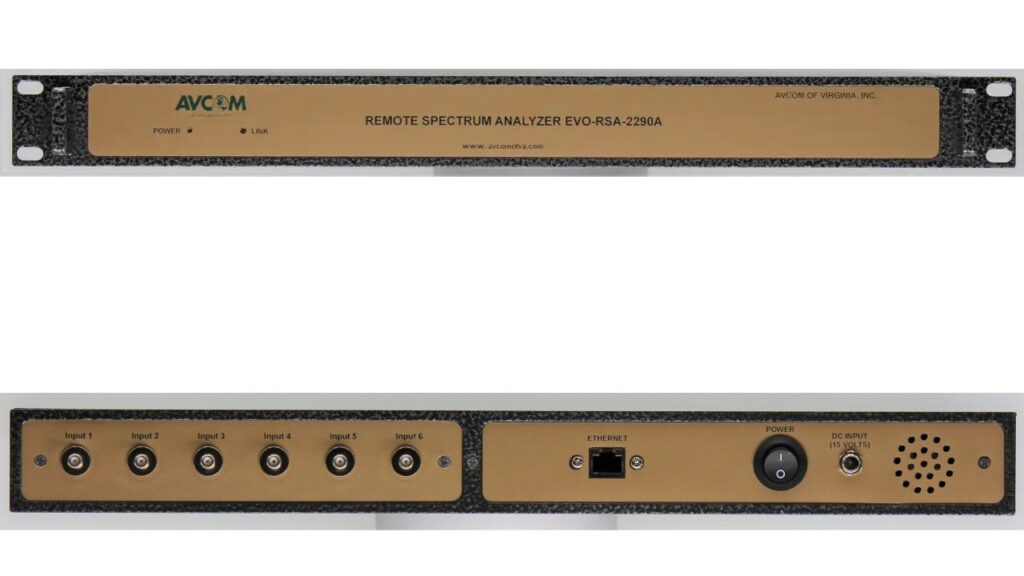

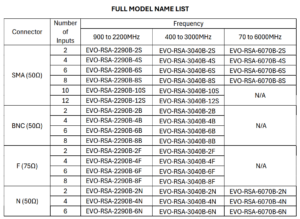

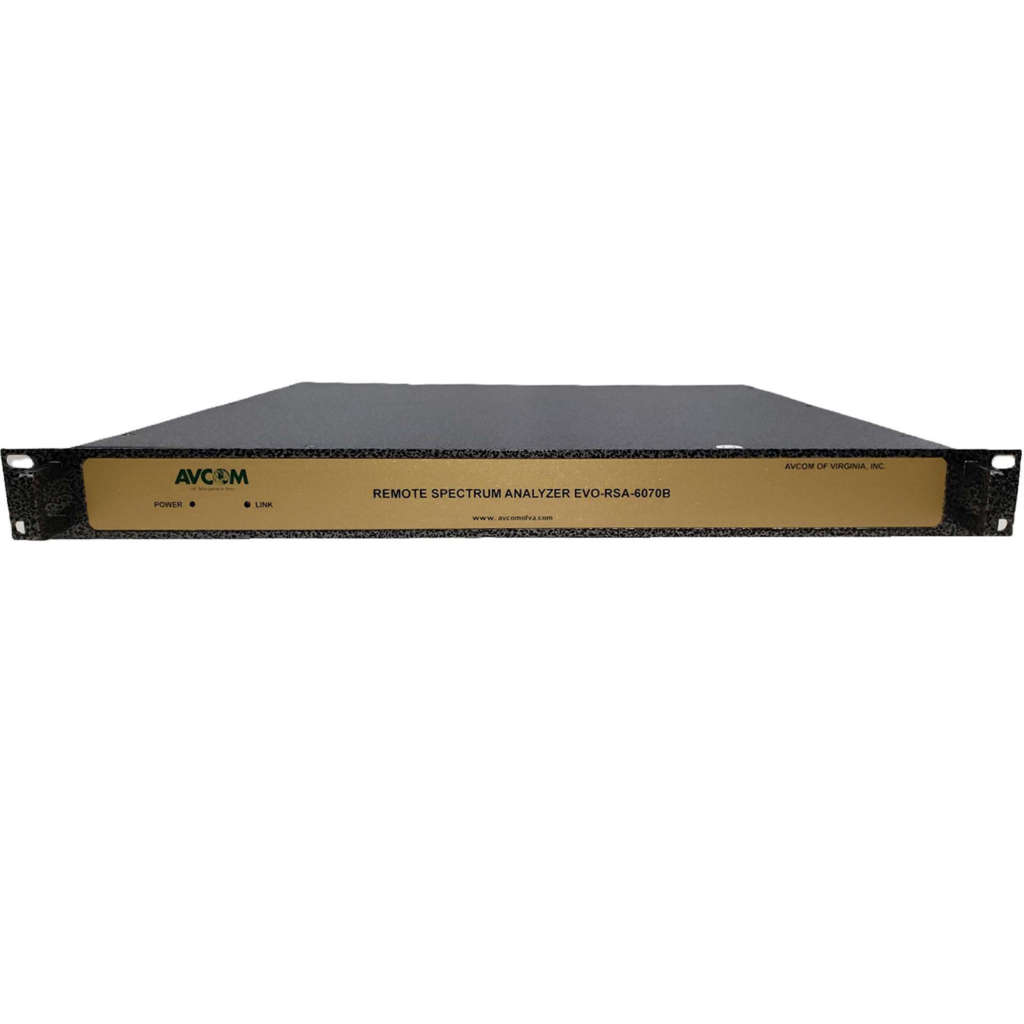

The EVO-RSA is a rack-mount, extended-band RF spectrum analyzer with up to 12 inputs, built on a new DSP/FPGA platform for reliable signal monitoring and control in satcom ground-segment applications.

6 34

Input connectors	SMA, BNC, F, and/or N
Nominal input impedance	50 Ω (SMA, BNC, N); 75 Ω (F)
Max DC input voltage	25 V
Input frequency range - model 2290	900 MHz to 2200 MHz
Input frequency range - model 3040	400 MHz to 3000 MHz
Input frequency range - model 6070	70 MHz to 6000 MHz
Max span width	1300 MHz
Min tuning step size	1 kHz
Resolution bandwidth	1 kHz, 3 kHz, 10 kHz, 30 kHz, 100 kHz, 300 kHz, 1 MHz
Reference levels	-40 dBm, -30 dBm, -20 dBm, -10 dBm
Maximum input power level	-10 dBm
RF sensitivity (-40 REF LVL)	-100 dBm
Spur free dynamic range (3kHz RBW)	60 dB
Noise floor (-40 REF LVL, 3kHz RBW)	-100 dBm, -134 dB/Hz
Noise floor (-10 REF LVL, 3kHz RBW)	-70 dBm, -104 dB/Hz
Isolation between inputs	>40 dB typical
Amplitude accuracy	+/- 1 dB typical
Frequency accuracy	+/- 1 kHz typical
Phase noise @ 2 ghz, 10 khz offset	-100 dBc/Hz
Phase noise @ 2 ghz, 100 khz offset	-100 dBc/Hz
Phase noise @ 2 ghz, 1 mhz offset	-109 dBc/Hz
Ethernet	10/100, DHCP or Static, RJ45
USB	115200 8n1, USB-B
M&c via evo gui	Ethernet: Yes; USB: Yes
M&c via posix-c api sbs2api	Ethernet: Yes; USB: Yes
M&c via web-gui	Ethernet: Yes; USB: N/A
Power connector	Power Barrel Connector Jack
Power supply	15 VDC, 0.5 A
Dimensions	1 RU, 19 in. x 18.13 in. x 1.72 in. (48.26 cm x 46.04 cm x 4.37 cm)
Mass	7.2 lbs, 3.27 kg
Operating temperature	0°C to 50°C
Storage temperature	-40°C to 85°C
Humidity	0 to 95%, non-condensing
Max operating altitude	40,000 ft; 12,000 m

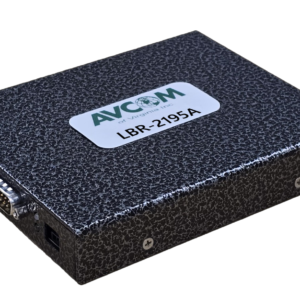

Compact L-Band satellite beacon receiver providing DC output proportional to input RF signal level for antenna pointing and uplink power control.

1 10

Frequency range	950–2150 MHz
Input level range	-30 to -90 dBm
Detection bandwidth	10–750 kHz
Tracking bandwidth	10–150 kHz
Carrier types	CW, BPSK, DVB (via CEPT)
Analog output	0–10 VDC, 10 mA; slope 0.1–3.0 V/dB adjustable
Interfaces	RS422, RS232, USB
Power consumption	< 3 W
Power input	8.0–33.0 VDC
Operating temperature	-30 to +60 deg C

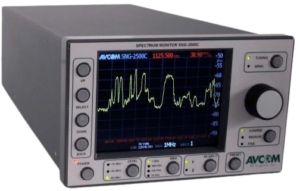

The MSNG-2500C is a mini rack mount spectrum analyzer designed for monitoring and measuring communication and broadcast carriers, particularly in satellite communications.

1 11

Frequency range	5–2300 MHz
Span width	Up to 1300 MHz
Resolution bandwidth	10 kHz, 100 kHz, 300 kHz, 1 MHz
RF sensitivity	>-85 dBm typical
Amplitude accuracy	±1 dB typical
Frequency accuracy	±1 kHz typical
Operating temperature	-10°C to +60°C
Dimensions	6.625" L × 8.375" W × 5.0" H
Mass	4.6 lbs
Power requirements	+15 VDC @ 1 A typical
Display	5.7" TFT-LCD, 640×480 (VGA)

Portable spectrum analyzer covering 5 MHz–2300 MHz with Li-Ion battery, for satellite installation and testing.

1 11

Frequency range	5 MHz–2300 MHz
Span width	Up to 1300 MHz
Resolution bandwidth	10 kHz, 100 kHz, 300 kHz, 1 MHz
RF sensitivity	>-85 dBm typical
Amplitude range	0 dBm to -85 dBm (standard); 0 to -105 dBm (preamp)
Lnb power	13–18 V, 22 kHz (optional)
Operating temperature	-10°C to +60°C
Dimensions	7" L × 9.25" W × 5.75" H
Mass	6 lbs
Power	+15 VDC @ 3 A max
Display	5.7" TFT-LCD, 640×480 (VGA)

A portable C-band spectrum analyzer for satellite, TV/radio broadcasting, CATV, wireless, TCSM, and GPS signal monitoring, with LNA/LNB power output and remote control software.

1 9

Applications	Satellite, TV and Radio Broadcasting, CATV, Wireless, TCSM, and GPS
L.o. frequency offsets	Displays Direct Frequency Readout
Presets/memory	10 Customizable Presets/50 User Memory Locations
Refresh rate	Up to 13/sec
Lna/lnb power	13/18Vdc/22 kHz
Front panel interface	Easy-to-use, operable while wearing bulky gloves
Remote control	Full Remote Control Monitoring via Ethernet/RS-232 Using Free Remote Control Software (GUI)
Options	Carrying Case, Extended Amplitude Range Solutions, Down Converters for Extended Frequency Coverage, and LNB Power
Remote software platform	Available for Windows

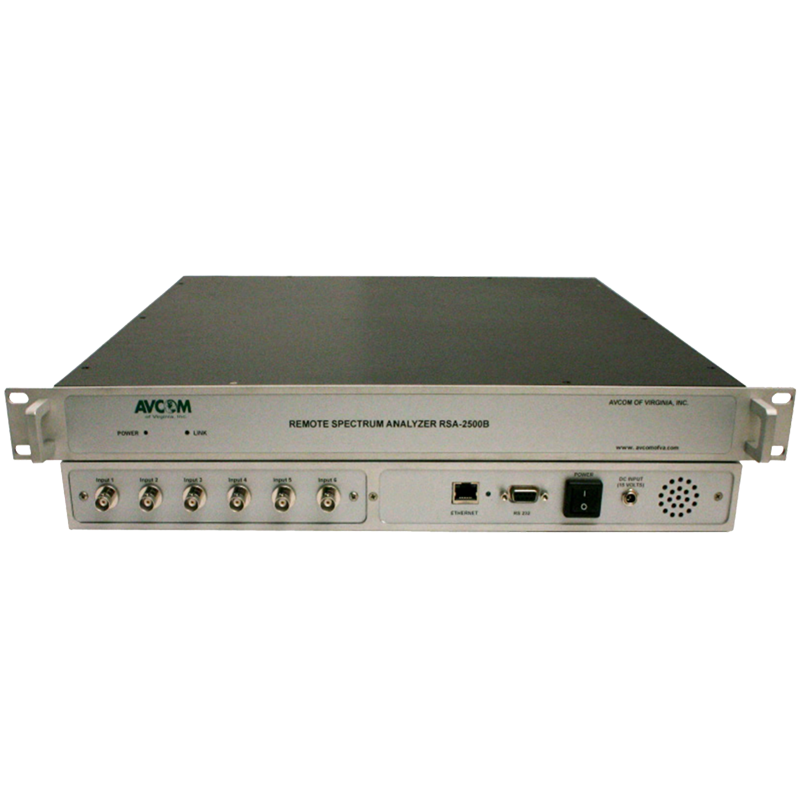

The RSA-2500B is a 1RU rack-mount spectrum analyzer designed for remote monitoring and control in SATCOM facilities, offering flexibility with up to 6 inputs and various configuration options.

1 21

Up to 6 inputs	in 1RU Enclosure
Easily integrated	into OEM Applications
Full remote monitor and control	via IP; Ethernet
Gui software included	License-free
Frequency range	5 MHz – 2300 MHz
Span width	Up to 1300 MHz (Dependent on Center Frequency)
Resolution bandwidth	10 kHz, 100 kHz, 300 kHz, 1 MHz
RF sensitivity	Greater than -85 dBm Typical
Reference levels	Selectable -10 dBm to -50 dBm in 5 dBm increments
Scale	5 dB/Div & 2 dB/Div
Dynamic range	50 dBm GUI window
Amplitude accuracy	± 1 dB typical
Frequency accuracy	± 1 kHz typical
Max RF input	25 VDC MAX (DC Blocked), +30 dBm (1 W)
Input impedance	50 Ω
Amplitude range	0 dBm to -85 dBm (standard) 0 dBm to -105 dBm (preamp option) +10 dBm to -65 dBm (attenuator option)
Input connector	Input 1: BNC standard. F, TNC, SMA, N available. Inputs 2-6: Optional
Operating temperature range	10°C to +60°C
Physical dimensions	19” W x 18” L x 1.75” H
Mass	7lbs
Power requirements	+15 VDC/9 W; Universal AC-DC Converter Included with IEC Type 1 plug

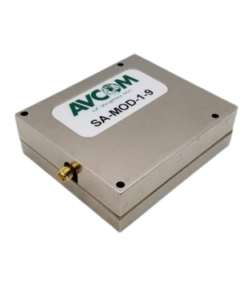

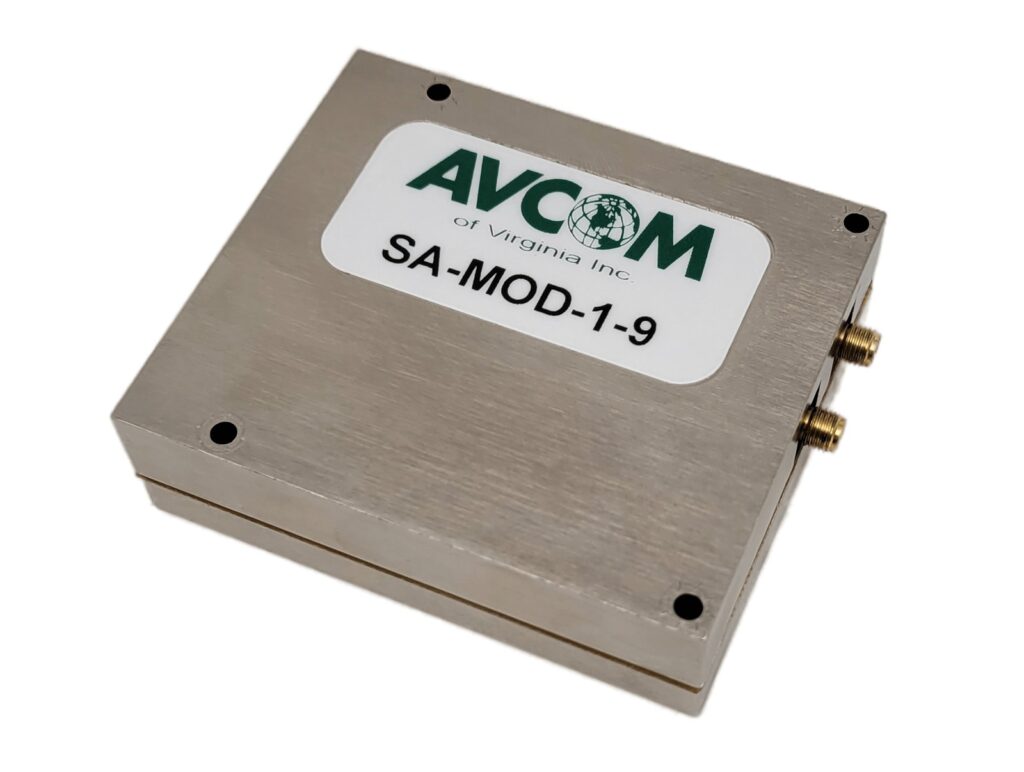

Ultra-compact embedded spectrum analyzer module, 3"×3.5"×1", 8-33 VDC, -40 to +70°C, 40,000 ft altitude.

2 12

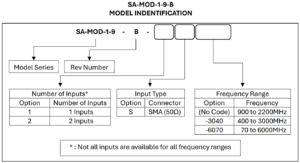

Frequency range (Model 2290)	900–2200 MHz
Frequency range (Model 3040)	400–3000 MHz
Frequency range (Model 6070)	70–6000 MHz
RF sensitivity (-40 REF LVL)	-100 dBm
Spur free dynamic range (3 kHz RBW)	60 dB
Amplitude accuracy	±1 dB typical
Ethernet	10/100, DHCP or Static, 4-pin Molex
Power supply	8–33 VDC, <3 W
Dimensions	3" × 3.5" × 1.062"
Mass	7.1 oz (200 g)
Operating temperature	-40°C to +70°C
Max operating altitude	40,000 ft (12,000 m)

Compact embedded single-board beacon receiver and spectrum analyzer for integration into satellite terminals and SOTM systems.

1 12

Frequency range	950–2150 MHz
Input level range	0 to -115 dBm
Detection bandwidth	10–750 kHz
Tracking bandwidth	10–150 kHz
Tracking types	CW/BPSK beacon, TPT, CEPT
Update rate	10 or 25 Hz
Interfaces	Ethernet 10/100 (RJ-45), USB
Power consumption	7 W
Power input	15–24 VDC
Dimensions	3.75 x 5.75 x 1.1 in
Mass	0.8 lbs
Operating temperature	-40 to +70 deg C

The SBS2-2150E-RSA is a remote L-Band spectrum analyzer module designed for OEM integration, providing remote signal monitoring and control for satcom applications via Ethernet or USB.

1 11

Input frequency range	950 MHz to 2150 MHz (extended L-Band)
Reference signal monitoring	10 MHz reference signal viewing capability
Supply voltage	+15 to +24VDC
Power consumption	7 W
Communication interfaces	Ethernet or USB (commercial connectors or header connectors)
Resolution bandwidth	1 MHz to 10 kHz
Resolution bandwidth option	3 kHz RBW option available
Data points	Adjustable from 1 to 4000 points
Control software	Avcom EVO-GUI, POSIX compliant 'C', GUI or API access
Max simultaneous windows	Up to sixteen windows displayed at one time
Operating system support	Windows OS

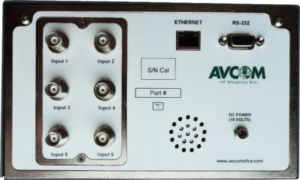

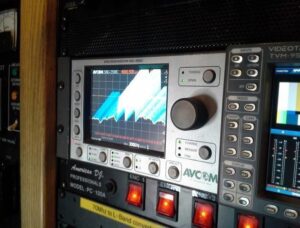

Rack-mount spectrum analyzer for monitoring and measuring satellite communications and broadcast carriers, including uplink, downlink, L-band, IF, and TT&C signals.

3 17

Design	Simple and easy to use design at a low price
Presets	10 customizable presets
Display	VGA color display
Mounting	Fits into Tektronix 1700 series dual mount tub
Refresh rate	Up to 13/sec
Remote control	Full remote control monitoring via Ethernet/RS-232 using free remote control software
Inputs	Up to 6 customizable inputs available
Frequency readout	L.O. frequency offsets for direct frequency readout
Memory locations	50 user memory locations
Options	Rackmounts, extended amplitude range solutions, down converters for extended frequency coverage, and LNB power
Rbw selection	10 kHz to 1 MHz
Frequency & span control	Fine, Medium, and Coarse settings
Signal detection tools	Persistence, averaging, waterfall
Remote control interface	Serial port or optional Ethernet
Remote software features	Screen shot capture recording, SNMP for alarm/monitoring, crosspolling, markers, Automated Data Acquisition (DAQ) with tolerance comparison, integrated email alerts
Max simultaneous windows	Up to twelve
Remote software os	Windows

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

AVCOM of Virginia

About AVCOM of Virginia

Photos 3

Products

BR-MOD (Series)

BR-MOD (Series)

Description

Specifications

DRSA-2500B / TRSA-2500B Dual/Triple Spectrum Analyzer

DRSA-2500B / TRSA-2500B Dual/Triple Spectrum Analyzer

Description

Specifications

EVO-CLM (Rev B) Compact Spectrum Analyzer

EVO-CLM (Rev B) Compact Spectrum Analyzer

Description

Specifications

EVO-RBR (Rev B)

EVO-RBR (Rev B)

Description

Specifications

EVO-RSA Rev B

EVO-RSA Rev B

Description

Specifications

LBR-2195A L-Band Satellite Beacon Receiver

LBR-2195A L-Band Satellite Beacon Receiver

Description

Specifications

MSNG-2500C Mini Rack Mount Spectrum Analyzer

MSNG-2500C Mini Rack Mount Spectrum Analyzer

Description

Specifications

PSA-2500C Portable Spectrum Analyzer

PSA-2500C Portable Spectrum Analyzer

Description

Specifications

PSA-4200C

PSA-4200C

Description

Specifications

RSA-2500B

RSA-2500B

Description

Specifications

SA-MOD-1-9-B Embedded Spectrum Analyzer Module

SA-MOD-1-9-B Embedded Spectrum Analyzer Module

Description

Specifications

SBS2-2150E Embedded Satellite Beacon Receiver Board

SBS2-2150E Embedded Satellite Beacon Receiver Board

Description

Specifications

SBS2-2150E-RSA

SBS2-2150E-RSA

Description

Specifications

SNG-2500C

SNG-2500C

Description

Specifications

Reviews
