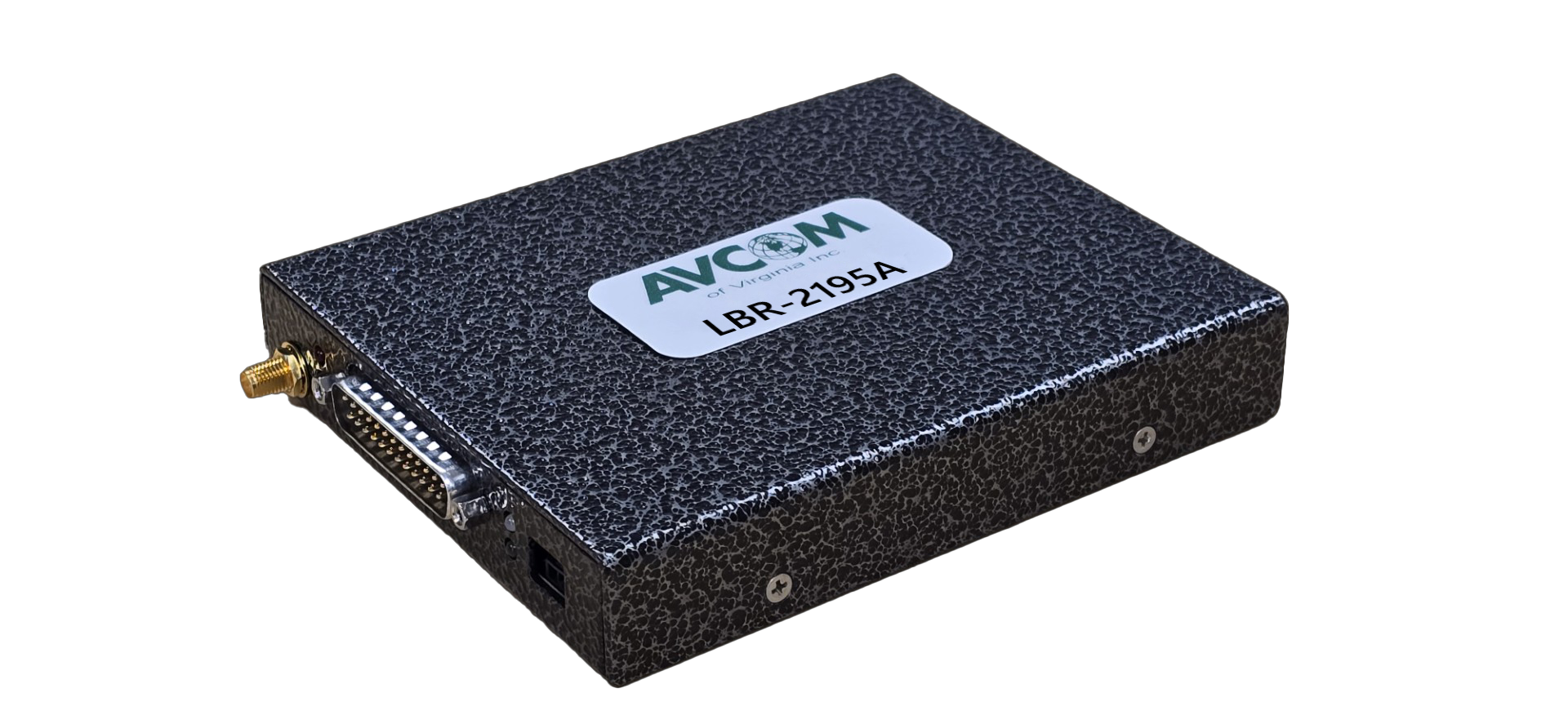

LBR-2195A L-Band Satellite Beacon Receiver
AVCOM of Virginia
Compact L-Band satellite beacon receiver providing DC output proportional to input RF signal level for antenna pointing and uplink power control.
Technical specifications
- Frequency Range
- 950–2150 MHz
- Input Level Range
- -30 to -90 dBm
- Detection Bandwidth
- 10–750 kHz
- Tracking Bandwidth
- 10–150 kHz
- Carrier Types
- CW, BPSK, DVB (via CEPT)
- Analog Output
- 0–10 VDC, 10 mA; slope 0.1–3.0 V/dB adjustable
- Interfaces
- RS422, RS232, USB
- Power Consumption
- < 3 W
- Power Input
- 8.0–33.0 VDC
- Operating Temperature
- -30 to +60 deg C
About
The LBR-2195A is a compact L-Band satellite beacon receiver that provides a DC output voltage proportionate to the input RF signal level. It locks onto CW and BPSK modulated carriers and supports CEPT for DVB-type signals. Designed as a drop-in alternative for systems integrators working on satellite antenna pointing and uplink power control applications.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
