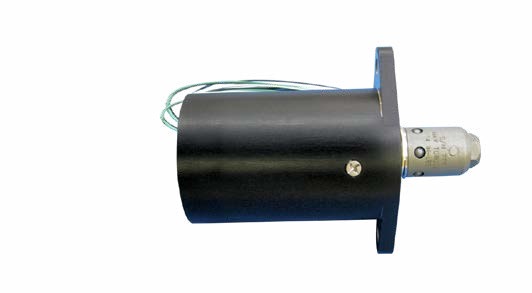

TiNi ERM E500 Ejector Release Mechanism
Ensign-Bickford Aerospace & Defense (EBAD)
The EBAD TiNi™ Ejector Release Mechanism E500 is a derivative of the TiNi™ Pin Pullers, employing a Shape Memory Alloy (SMA) wire threaded through a latch and attached to electrical contacts. This latch retains internal ball bearings that hold compressed drive springs in place before actuation. A smaller internal reset spring assists in the reset […]
Key figurescomparable across the catalogue
- Mass
- 0.1 kg
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Max Release Load
- 500 lbf (2,224 N)
- Proof Load
- 700 lbf (3,114 N)
- Max Torque
- 14 in-lb
- Coupler Kick Off-Force
- 6.5 lbf
- Max Misalignment Capability
- +/- 5º engagement and deployment
- Mass
- 3.6 oz (100 g)
- Operating Current
- 1.25 to 4 A
- Resistance
- 2.2±.3 Ω
- Function Time @ 23°C
- 100 ms max @ 2.5 A
- Cycle Life (min)
- 50
- Operating Temp
- -65ºC + 70ºC
- Height (without coupler)X
- 1.625 in
- Height (with coupler)Y
- 2.475 in
- Max Diameter (with flange)Z
- 2.1 in
- Std Coupler Engagement Size
- .164 in-32
About
The EBAD TiNi™ Ejector Release Mechanism E500 is a derivative of the TiNi™ Pin Pullers, employing a Shape Memory Alloy (SMA) wire threaded through a latch and attached to electrical contacts. This latch retains internal ball bearings that hold compressed drive springs in place before actuation. A smaller internal reset spring assists in the reset process. Additional ball locks are incorporated between the output pin and the coupler, with a kick-off spring helping to keep external ball locks in place after actuation. The ejector is fully vented, typically featuring an aluminum alloy enclosure and a custom 455 SS coupler with a tiolon finish. Alternative voltages are accommodated by an internal resistor to prevent SMA wire overheating. It is suitable for parachute releases, underwater actuations, and modifications into other mechanisms like gas cylinder penetrators.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
