FocusSuite®
gmv
FocusSuite is GMV's advanced flight dynamics system (FDS) software suite for satellite operations, providing full lifecycle support from mission preparation to end-of-life for all orbital regimes.
Technical specifications
- 100 % probado en vuelo
- Más de 139 misiones operacionales y seguimos sumando.
- Más del 50 %
- Más del 50 % de los principales operadores de satélites cuentan con nosotros.
- Apto para cualquier misión
- GEO, MEO, LEO, HEO, LEOP, etc.
- Escalabilidad
- Desde un satélite hasta flotas masivas
- Automatización
- Ilimitada hasta operaciones desatendidas
- Compatibilidad con fases de misión
- Preparación y análisis de misiones, operaciones de fase de lanzamiento y órbita temprana (LEOP), operaciones en órbita y operaciones de fin de la vida útil y desorbitación.
- Compatibilidad con regímenes orbitales
- GEO, LEO, MEO, HEO o misiones interplanetarias (la Luna, Marte)
- Soporte de plataformas
- Inmediato en la mayoría de plataformas de satélite comerciales.
- Automatización mediante scripts
- Intuitivos (escritos en Python/SOL) editables en cualquier momento y adaptables a necesidades específicas con ejecuciones tanto programadas como basadas en hechos.
- Funciones de administración de sistemas de dinámica de vuelo (FDS)
- Gestión de usuarios, inicio de sesión seguro, redundancia entre sitios (capacidad de cambio rápido o hot-switch), copias de seguridad automáticas, registros de sistema FDS y archivo de datos.
- API
- Rest
- SDK
- Python
- Estándares de entrada/salida de datos
- CCSDS o C2MS
- Interfaz de usuario
- Aplicación web con una UI avanzada, simple e intuitiva.
- Seguridad
- Protocolo https, comunicaciones cifradas extremo a extremo, en cumplimiento con la norma ISO7001. Autenticación única mediante el protocolo seguro de autorización Oauth2.
- Paralelización de procesos FDS
- Para optimizar el rendimiento.
- Escalabilidad de la misión
- Desde un único satélite a flotas de gran tamaño.
- Base de datos
- Basado en base de datos.
- Nube
- Nube nativa redimensionable y flexible.
- Interfaces de centros de control
- Hifly de GMV y la mayoría de sistemas de control de gestión (MCS), como el SCOS2000 de la ESA o el EPOCH de Krato, entre otros.
- Integración en el segmento terreno
- Mediante el uso de interfaces API Rest y estándares del sector, FocusSuite® es capaz de interactuar con cualquier otro componente: control y planificación de misiones y archivo, supervisión y control de datos.
- Funciones operativas cubiertas
- Determinación y propagación de órbitas, planificación y optimización de maniobras, mantenimiento de estaciones, incluido el control absoluto y relativo de constelaciones, registro de masas, reconstrucción de maniobras y limitaciones de las plataformas.
- Modelos de dinámica de vuelo
- Adaptados al mecanismo en uso para actualizarlos y mejorarlos durante el transcurso de las operaciones.
- Estrategias de control de órbitas
- De vanguardia para todos los regímenes orbitales, incluidas estrategias de excentricidad, inclinación y control del semieje mayor, de forma individual o combinada, control de trayectorias terrestres y control relativo, entre otras.
- Módulo de optimización de maniobras
- Genérico basado en técnicas de ML/IA.
- Determinación de órbitas
- Con estimación por lotes de mínimos cuadrados, algoritmos secuenciales y de filtro de Kalman.
About
FocusSuite® is GMV’s advanced flight dynamics system (FDS) software suite designed to support the complete lifecycle of flight dynamics operations for any space mission. It assists satellite operators in effectively executing tasks such as satellite control, fleet management, space debris conjunction assessment, mission analysis, data visualization, and other related activities necessary for safe operation of satellites and fleets throughout their mission. The system supports all mission phases, including preparation and analysis, launch and early orbit phase (LEOP) operations, in-orbit operations, and end-of-life and deorbiting. It is compatible with all types of orbital regimes, including GEO, LEO, MEO, HEO, and even interplanetary missions (Moon, Mars).
Key features include manual, automatic, and ‘as a service’ operation modes, mission analysis, and close approach prediction. It offers immediate support for most commercial satellite platforms and boasts advanced usability, designed by and for flight dynamics engineers. FocusSuite is 100% flight-proven with over 139 operational missions and is used by more than 50% of major satellite operators. It provides unlimited automation for unattended operations through intuitive Python/SQL scripts, which are editable and adaptable for scheduled or event-based executions. The system includes FDS administration functions like user management, secure login, inter-site redundancy (hot-switch capability), automatic backups, FDS system logs, and data archiving.

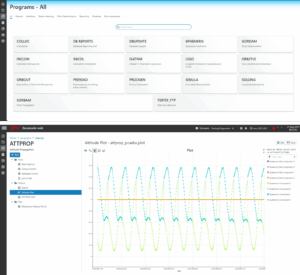

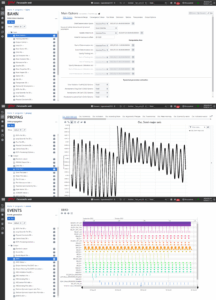

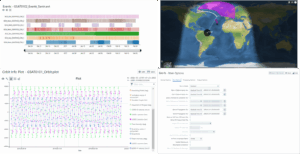

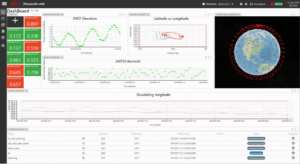

FocusSuite is open and extensible, offering a well-documented and intuitive Rest API and Python SDK. It uses standards like CCSDS and C2MS for data input/output, ensuring interoperability with third-party services. The web application features an advanced, simple, and intuitive UI, providing access to all functions, including login, program execution, navigation, dashboard editing and configuration, real-time 2D/3D orbit graphics, and Gantt charts. It includes an integrated dashboard for global FDS surveillance and monitoring, customizable for specific satellite fleets or constellations, and an integrated FDS event log viewer. Security is ensured through HTTPS protocol, end-to-end encrypted communications, ISO7001 compliance, and Oauth2 single authentication. It supports parallelization of FDS processes for optimized performance and is scalable from a single satellite to large fleets. The system is database-driven, cloud-native, and flexible, with interfaces to multiple control centers like GMV’s Hifly and most MCS systems (e.g., ESA’s SCOS2000, Kratos’ EPOCH).
Operational needs covered include orbit determination and propagation, maneuver planning and optimization, station-keeping (absolute and relative constellation control), mass logging, maneuver reconstruction, and platform limitations. It incorporates flight dynamics models adapted to the mechanism in use for continuous updates and improvements, and cutting-edge orbit control strategies for all orbital regimes, including eccentricity, inclination, and semi-major axis control, ground track control, and relative control. A generic maneuver optimization module based on ML/AI techniques is also included, alongside orbit determination using least squares batch estimation, sequential algorithms, and Kalman filter.
FocusSuite is a family of products and tools for different orbit schemes and mission phases, sharing a common reference architecture and components. These include:
– FocusGEO: Full lifecycle flight dynamics operations support for geostationary satellites.
– FocusLEOP: FDS tools for launch and early orbit phase (LEOP) operations, including transfer strategies.
– FocusLEO: FDS tools for Low Earth Orbit (LEO) and Medium Earth Orbit (MEO) satellite operations.
– FocusCN: Support for satellite constellation management.
– Matool: Definition, evaluation, and optimization of orbit maintenance strategies for geostationary satellites.
– Consigo: Multi-mission tracking scenario analysis to assess expected orbit determination accuracy.
– FocusCloseAp: Collision risk assessment tool.
– Focusoc: Conjunction analysis and collision risk assessment service for GEO, LEO, and MEO satellites.
– FDaaS: Flight Dynamics as a Service, offering cloud-based solutions for FDS control.
The system is based on a client-server architecture with secure HTTPS communications. The web interface simplifies remote access and client implementation. The backend connects with the FocusSuite server, allowing for smooth transitions from existing systems and enabling the use of traditional FocusSuite clients alongside the new backend, facilitating a gradual migration.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
