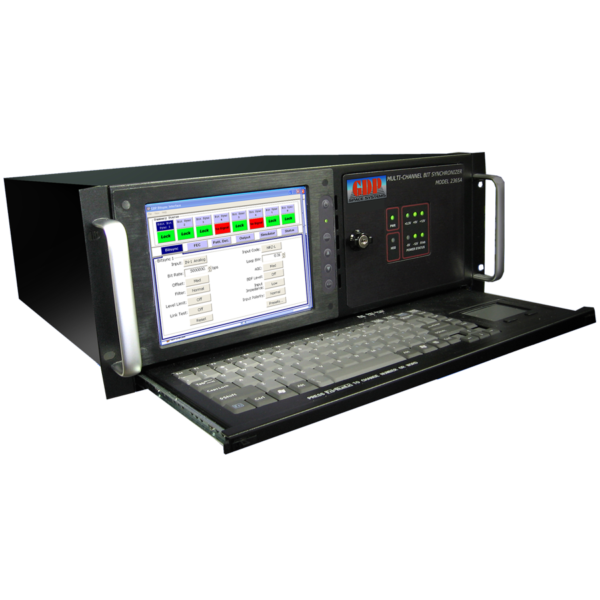

Model 2365A Multi-Channel PCM Bit Synchronizer
GDP Space Systems
8-channel PCM bit synchronizer in a 4U rackmount chassis with local touch-screen control.
Key figurescomparable across the catalogue
- Data rate
- 40 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Channels
- Up to 8 per 4U chassis
- Control interface
- Local PC/mouse/keyboard, optional touch-screen
- Data rate
- 10 bps to 40+ Mbps
- Form factor
- 4U rackmount chassis
About
The GDP Space Systems Model 2365A Multi-Channel PCM Bit Synchronizer houses up to 8 independent bit synchronizer channels in a single 4U rackmount chassis, designed for telemetry ground stations and flight test ranges that need to recover clock and data from multiple simultaneous downlinks. Control and monitoring of all channel parameters and features is handled through a local control interface using a PC, mouse, and keyboard, with an optional touch-screen for direct front-panel operation. As part of GDP’s bit synchronizer family, the 2365A shares the same high-fidelity clock/data recovery architecture used across the product line, maintaining lock at low signal levels and low Eb/No to minimize downstream frame sync dropouts during signal fade and multipath.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
