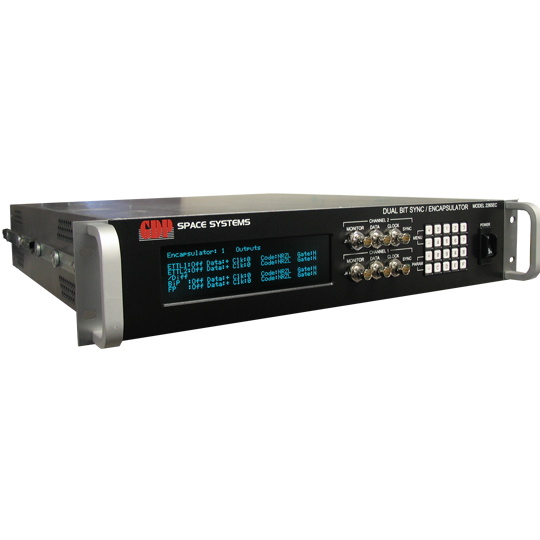

Bit Synchronizers
GDP Space Systems
GDP Space offers a range of PCM Bit Synchronizers designed to reconstruct input data streams and recover the clock with high fidelity for telemetry ground stations, ensuring reliable data processing even in challenging signal conditions.
Key figurescomparable across the catalogue
- Data rate
- 40 Mbps
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Performance
- Better than 1dB from theory all the way down to –3dB Eb/No
- Input Signal Levels
- Down to 100mV
- Data Rates
- 10 bps to 40+ Mbps
- Configurations
- Single or Multi-channel Rackmount Units, Single or Dual-channel PCI Cards
- Model 2265 Channels
- Up to 4 bit synchronizer channels
- Model 2265 Chassis Size
- 2U
- Model 2365A Channels
- Up to 8 channels
- Model 2365A Chassis Size
- 4U
- Model 270 Channels
- 8 or 16 Channels (optional)
- Model BSM202 Channels
- Dual Channel (single channel configurations also available)
- Model 2265EC Channels
- Up to 4 high performance bit synchronizer channels
- Model 2265EC Chassis Size
- 2U
About
GDP Space’s Bit Synchronizers are crucial components in telemetry ground stations, engineered to reconstruct input data streams and recover the clock with the highest fidelity. This capability allows processing systems to extract the most meaningful information from received signals. A key differentiator is their performance, which is better than 1dB from theory down to –3dB Eb/No, even at input signal levels as low as 100mV. This superior performance significantly reduces lock dropouts in downstream frame synchronizers and decommutators, leading to more usable data during receiver fade and multi-path situations, which are common during critical mission phases like aircraft test maneuvers. The products are designed to address real-world data integrity issues, particularly those related to jitter, which adversely affects data recovery. GDP Space emphasizes that static bit error rate tests do not adequately evaluate bit synchronizers under real-world conditions, and offers the GDP Model 650 Bit Error Rate Test Set with a jitter test option for proper evaluation. The product line includes various configurations such as multi-channel rackmount units and PCI cards, supporting data rates from 10 bps to over 40 Mbps. Specific models include the Model 2265 Multi-Channel PCM Bit Synchronizer (up to 4 channels in a 2U chassis), Model 2365A Multi-Channel PCM Bit Sync (up to 8 channels in a 4U chassis with local control interface), Model 2430D (offering flexible signal I/O configurations), Model 270 Multi-Channel Bit Synchronizer (8 or 16 channels with Digital I/O), Model BSM202 (Dual Channel PCM Bit Sync on a single PCI card), and Model 2265EC (a stand-alone bit synchronizer and data encapsulator for diversity combiner products, housing up to 4 channels in a 2U chassis with optimized digital design for high performance).
