Global Aero Terminal-5510 (GAT-5510)
Viasat, Inc.

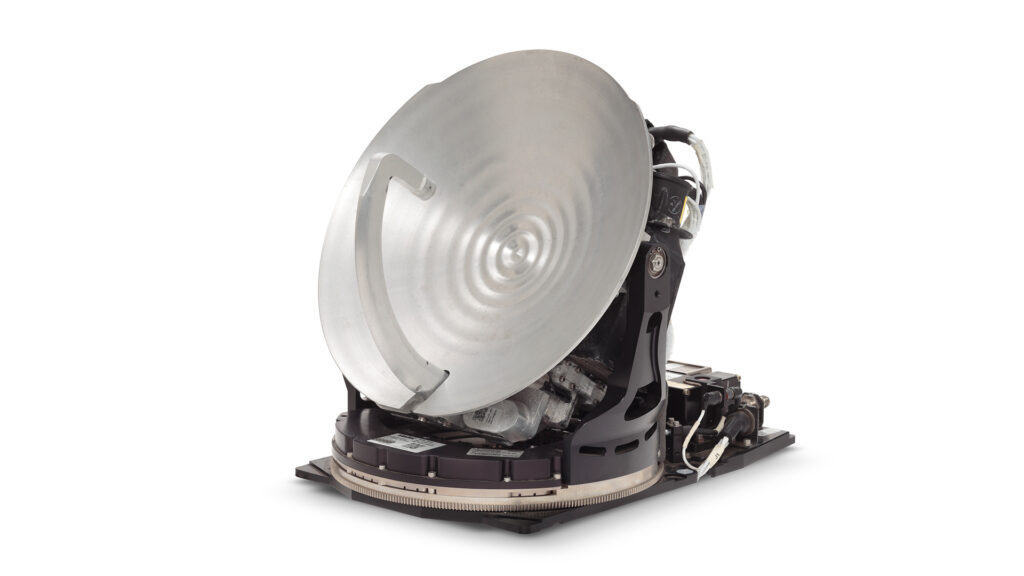

The Viasat GAT-5510 is a Ka-band airborne terminal designed for in-flight connectivity services, featuring a 12-inch parabolic antenna and enabling broadband access for various airborne platforms.
Typed specifications30 values
Discloses 6 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- Ka datasheet p.2 Ka full ITU Ka, Commercial and Military | Ka TX/RX
- Mass
- 11 900 g datasheet p.2 11 900 g antenna, 26.4 lb.
- Frequency range
- 17 700–21 200 MHz RX · datasheet p.2 27 500–31 000 MHz TX
- Envelope (L×W×H)
- Ø 31.7 x 33.3 cm Swept Volume (D x H) · datasheet p.2
- Polarization
- circular datasheet p.2 switchable circular polarization, electronically switchable, all combina… | circular electronically switchable, all combinations of R, L, co-pol, … | electronically switchable, all combinations of R, L, co-pol, or cross-pol | dual switchable
- Antenna type
- Tail or fuselage mount, parabolic reflector Ka-band TX/RX airborne antenna datasheet p.2 reflector (parabolic) tail or fuselage mount, parabolic reflector Ka-band TX/RX air… | Parabolic reflector
- Supply voltage
- 28 V antenna power supply · datasheet p.2 115 V antenna power supply, 360 Hz - 800 Hz single phase
- Power consumption
- 420 W antenna power supply · datasheet p.2 175 W modem
- Data interface
- Ethernet 1000 BASE-T data and control · datasheet p.2 other ARINC 429 navigation data | RS-422 navigation data
- Operating temperature
- -55–70 °C datasheet p.2 -55–70 °C antenna
- Beam steering
- mechanical (gimbal) 2-axis steerable 2-way Ka-band antenna · datasheet p.1
- Scan range
- 90 ° elevation coverage 0° to 90° · datasheet p.2
- G/T
- 10.6 dB/K at 36K ft., midband frequency including radome loss · datasheet p.2
- EIRP
- 46.6 dBW 10 W Tx mode, at 36K ft., midband frequency including radome … · datasheet p.2 49.6 dBW 20 W Tx mode, at 36K ft., midband frequency including radome …
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Antenna class
- Tail or fuselage mount, parabolic reflector Ka-band TX/RX airborne antenna
- Antenna aperture
- Parabolic reflector, circular polarization, electronically switchable, all combinations of R, L, co-pol, or cross-pol
- Antenna frequency tx
- 27.5 – 31.0 GHz
- Antenna frequency rx
- 17.7 – 21.2 GHz
- Antenna swept volume (DxH)
- Ø12.5 x 13.1 in.; Ø31.7 x 33.3 cm
- Antenna weight
- 26.4 lb.; 11.9 kg
- Antenna power supply power source
- 115 VAC, 360 Hz – 800 Hz single phase, or 28 VDC
- Antenna power supply power consumption
- 420 W
- Antenna power supply dimensions (LxWxH)
- 11 x 8 x 3.3 in.; 28 x 20.8 x 8.3 cm
- Antenna power supply weight
- 7.9 lb.; 3.6 kg
- Modem form factor
- ARINC 600 4 MCU
- Modem dimensions (LxWxH)
- 14.6 x 4.9 x 7.6 in.; 37 x 12.5 x 19.4 cm
- Modem weight
- 17.0 lb.; 7.7 kg
About
The Viasat GAT-5510 is a Ka-band airborne terminal equipped with a 12-inch (30.5 cm) parabolic antenna capable of operating on the full ITU Ka-band spectrum with all polarizations. It is part of Viasat’s next-generation family of full-ITU Ka-band terminals, providing broadband, in-flight connectivity services for airborne operations globally. This terminal is designed to be future-proof, ensuring interoperability across all Viasat Ka-band satellites, including the planned ViaSat-3 global constellation. The system comprises three Line Replaceable Units (LRUs): a 12-inch antenna with integrated RF and ACU, a next-generation modem, and an antenna power supply unit. The antenna can be tail or fuselage mounted. It offers access to the highest capacity Ka-band satellites and is a low SWaP (Size, Weight, and Power) solution suitable for fixed-wing, rotary-wing, and Unmanned Aircraft Systems (UAS) platforms. When partnered with Viasat’s Best Available Network (BAN), the GAT-5510 delivers mission-critical connectivity and capabilities, enabling powerful data rates. Applications include en route government C3 and VIP transport communications for data, VoIP, VTC, internet access, virtual collaboration, and IPTV, as well as real-time intelligence, surveillance, and reconnaissance (ISR) with HD full-motion video and multi-sensor/multi-intelligence operations for instant situational awareness and decision making.
