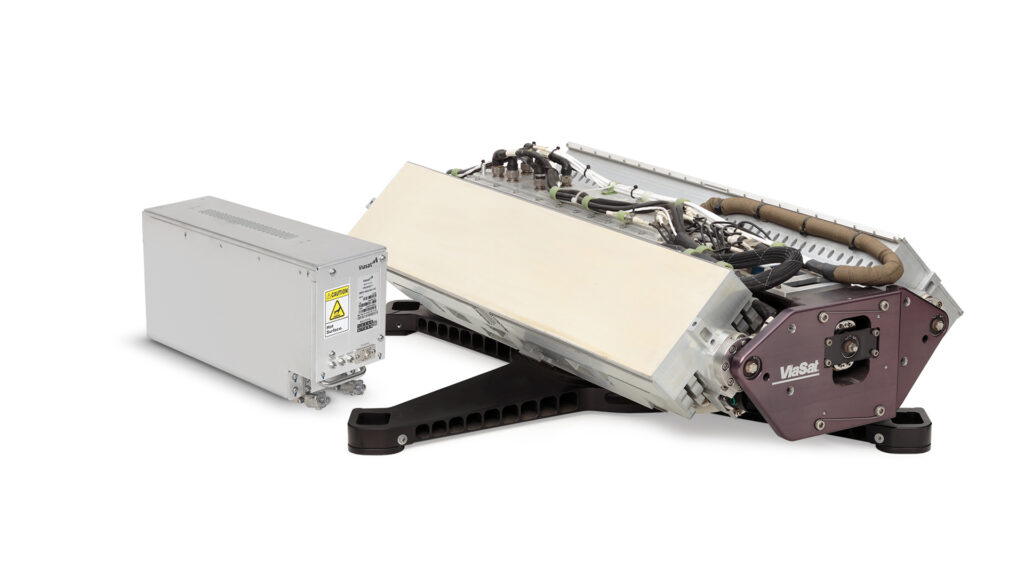

Global Aero Terminal-5530 (GAT-5530)
Viasat, Inc.
The Viasat GAT-5530 is a second-generation Ku/Ka broadband airborne terminal designed for challenging flight operations, providing multi-network, multi-orbital, and multi-band connectivity for military aircraft.
Typed specifications36 values
Discloses 6 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- Ka datasheet p.2 Ka full ITU Ka, Commercial and Military | Ka Ka-band | Ku Ku-band | Ku
- Mass
- 73 900 g datasheet p.2 73 900 g antenna, 163.0 lb.
- Frequency range
- 17 700–21 200 MHz Ka-band Rx · datasheet p.2 27 500–31 000 MHz Ka-band Tx | 10 950–12 750 MHz Ku-band Rx | 14 000–14 500 MHz Ku-band Tx
- Envelope (L×W×H)
- Ø39.25 x 11.3 in.; Ø99.7 x 28.7 cm Swept Volume · datasheet p.2 Ø39.25 x 11.3 in.; Ø99.7 x 28.7 cm swept volume (D x H)
- Polarization
- circular Ka-band · datasheet p.2 circular Ka-band, electronically switchable, cross- and co-pol. | switchable Ka-band: circular polarization, electronically switchable, cr… | linear Ku-band | linear Ku-band, electronic polarization tracking, cross- and co-pol. +1
- Antenna type
- Fuselage mount, 2nd generation medium profile dual Ku-/Ka-band Tx/Rx airborne antenna datasheet p.2 slot or waveguide array waveguide horn array; fuselage mount, 2nd generation medium p…
- Supply voltage
- 115 V antenna power supply · datasheet p.2 115 V antenna power supply, 360 Hz - 800 Hz single phase | 28 V antenna power supply
- Power consumption
- 465 W max, antenna power supply · datasheet p.2 465 W max · antenna power supply | 175 W max · modem
- Data interface
- Ethernet 1000 BASE-T data and control · datasheet p.2 other ARINC 429 navigation data
- Operating temperature
- -61–70 °C datasheet p.2 -61–70 °C antenna
- Scan range
- 90 ° datasheet p.2
- G/T
- 12.5 dB/K Ka-band, includes radome loss · datasheet p.2 11 dB/K Ku-band, includes radome loss
- EIRP
- 52.5 dBW Ka-band, includes radome loss · datasheet p.2 47 dBW Ku-band, includes radome loss
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Antenna class
- Fuselage mount, 2nd generation medium profile dual Ku-/Ka-band Tx/Rx airborne antenna
- Antenna swept volume (DxH)
- Ø39.25 x 11.3 in.; Ø99.7 x 28.7 cm.
- Antenna weight
- 163.0 lb.; 73.9 kg
- KA-band aperture
- Waveguide horn array; circular polarization, electronically switchable, cross- and co-pol
- KA-band frequency tx
- 27.5 - 31.0 GHz
- KA-band frequency rx
- 17.7 - 21.2 GHz
- KU-band aperture
- Waveguide horn array; linear polarization, electronic polarization tracking, cross- and co-pol
- KU-band frequency tx
- 14.0 - 14.5 GHz
- KU-band frequency rx
- 10.95 - 12.75 GHz
- Antenna power supply power source
- 115 VAC, 360 Hz – 800 Hz single phase, or 28 VDC
- Antenna power supply power consumption
- 465 W
- Antenna power supply dimensions (LxWxH)
- 11 x 8 x 3.3 in.; 28 x 21 x 8.4 cm.
- Antenna power supply weight
- 7.9 lb.; 3.6 kg
- Modem form factor
- ARINC 600 4 MCU
- Modem dimensions (LxWxH)
- 14.6 x 4.9 x 7.6 in.; 37 x 12.5 x 19.4 cm.
- Modem weight
- 17.0 lb.; 7.7 kg
About
Viasat’s second-generation Ku/Ka broadband airborne terminal, the GAT-5530, is a multi-network, multi-orbital, and multi-band antenna capable of operating across the full-ITU Ka-band spectrum. It delivers fast speeds to support multiple aircraft sensors, ensuring real-time connectivity globally. Built for challenging flight operations in virtually any airspace, it integrates with a wide range of military aircraft to connect warfighters to critical information for mission success. Features include a fuselage mount, medium profile, waveguide horn array antenna, and easy integration into medium and long-range airframes with line-fit options for procurement flexibility. It provides access to current Ku & Ka-band networks and future high-capacity Ka-band satellite networks, including private government in-theater networks for specific mission charters. The GAT-5530 is designed to future-proof aircraft with dual-band capabilities, enabling interoperability across all Viasat’s Ka-band satellite constellations, such as the planned ViaSat-3 global constellation. Its open-architecture utilizes Viasat’s Best Available Network (BAN) to empower global connectivity and mission-critical capabilities, including en route government C3 and VIP transport communications (data, VoIP, VTC, internet access, virtual collaboration, IPTV) and real-time intelligence, surveillance, and reconnaissance (ISR) with HD full motion video and multi-sensor/multi-intelligence operations for instant situational awareness and decision making.
