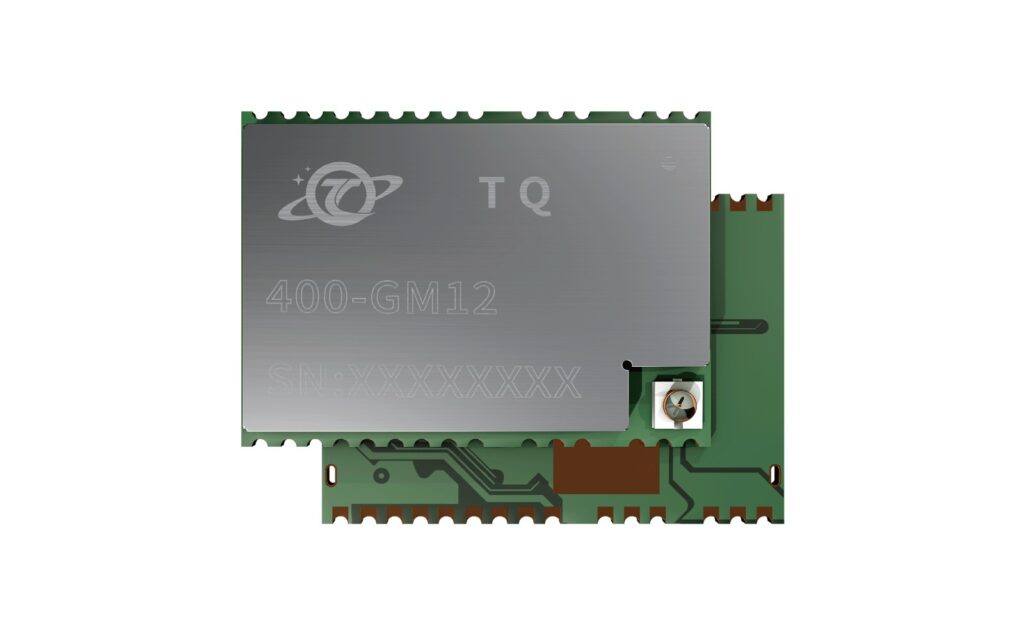

Tianqi Bio Mini Wildlife Tracking Terminal
Guodian Gaoke (Tianqi Satellite)
The Tianqi Bio Mini Terminal is a breakthrough miniaturized satellite IoT tracker for wildlife monitoring, combining solar charging, multi-mode GNSS (BDS/GPS), a 6-axis accelerometer, and multi-network communication (2G/4G/5G cellular, LoRa, and Tianqi satellite) in a 20.6×20.6×11.5 mm package weighing just a few grams. Designed to be safely worn by large migratory birds, the device features […]
Typed specifications1 values
Discloses 0 of 10 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- 20.6*20.6*11.5 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier5 lines, in the manufacturer's own wording
- Dimensions
- 20.6*20.6*11.5 mm
- Accuracy
- CEP(50%)5 m
- Operating temperature
- -20℃~60℃
- Data rate
- 10 Hz
- Lifetime
- 300条位置数据
About
The Tianqi Bio Mini Terminal is a breakthrough miniaturized satellite IoT tracker for wildlife monitoring, combining solar charging, multi-mode GNSS (BDS/GPS), a 6-axis accelerometer, and multi-network communication (2G/4G/5G cellular, LoRa, and Tianqi satellite) in a 20.6×20.6×11.5 mm package weighing just a few grams. Designed to be safely worn by large migratory birds, the device features a titanium alloy external antenna (default 0.4 mm wire with protective coating), an IP68-rated injection-molded housing (>2 ATM), and a 300 mAh lithium-polymer battery with gallium-arsenide solar panels (30% efficiency, effective in low light). When in areas without cellular connectivity the device automatically switches to Tianqi satellite short-message mode for low-frequency position reporting, with data stored onboard (16 MB) and batch-downloaded when network returns. Remote management and OTA firmware upgrades are supported via 2G/4G/5G or Bluetooth (INTELINK).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
