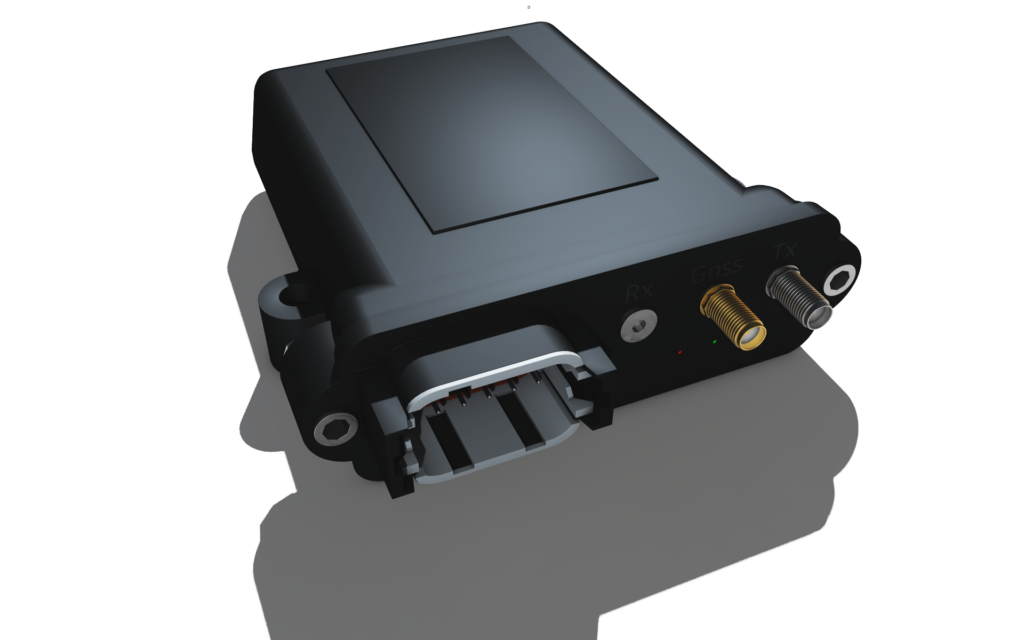

Tianqi IoT Gateway Terminal TQZD-08
Guodian Gaoke (Tianqi Satellite)
Industrial Tianqi satellite IoT gateway with RS485/Modbus, dual BDS/GPS, IP65 — for remote monitoring.
Typed specifications12 values
Discloses 4 of 10 fields engineers filter by in this category (category median 3).
- Mass
- 500 g product page
- Envelope (L×W×H)
- Max 120 bytes per message product page 135×117×35 mm
- TX RF output power
- 1 W min · product page 9.6 W max
- Data rate
- 115.2 kbps product page
- RX sensitivity
- -132 dBm product page -147 dBm | -162 dBm
- Power consumption
- 0.04 W max · product page
- Operating temperature
- -20 °C product page
- Design lifetime
- 5 years min · product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier19 lines, in the manufacturer's own wording
- Message size
- Max 120 bytes per message
- Frequency band
- UHF
- Tx power
- ≥30 dBm
- Rx sensitivity
- -132 dBm
- GNSS bands
- GPS L1 1575.42 MHz; BDS B1 1561.098 MHz
- GNSS acquisition sensitivity
- -147 dBm
- GNSS tracking sensitivity
- -162 dBm
- Supply voltage
- 6~38 V
- Tx current (12V)
- ≤800 mA
- Rx current (12V)
- ≤8 mA
- Sleep current (12V)
- ≤3 mA
- Tx power consumption
- ≤9.6 W
- Standby power
- ≤0.04 W
- Operating temperature
- -20°C ~ +80°C
- RS485 baud rate
- 115200 bps
- IP rating
- IP65
- Dimensions
- 135×117×35 mm
- Mass
- 500 g
- Design life
- >5 years
About
The TQZD-08 is a high-performance, low-power Tianqi satellite IoT communication gateway terminal for industrial data acquisition in areas without cellular coverage. It supports Modbus protocol for connecting diverse industrial sensors via RS485 interface, with built-in Tianqi satellite IoT transceiver and dual-mode BDS/GPS positioning.
The TQZD-08 automatically calculates Tianqi satellite orbits and schedules transmissions to minimize power consumption while maintaining reliable data delivery. Designed for fixed-site remote monitoring and emergency communication: urban emergency communication backup, unmanned power facility monitoring, mountain weather stations, and remote hydropower station data. Wide input voltage (6~38V) supports solar/battery or vehicle power. IP65 rated.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
