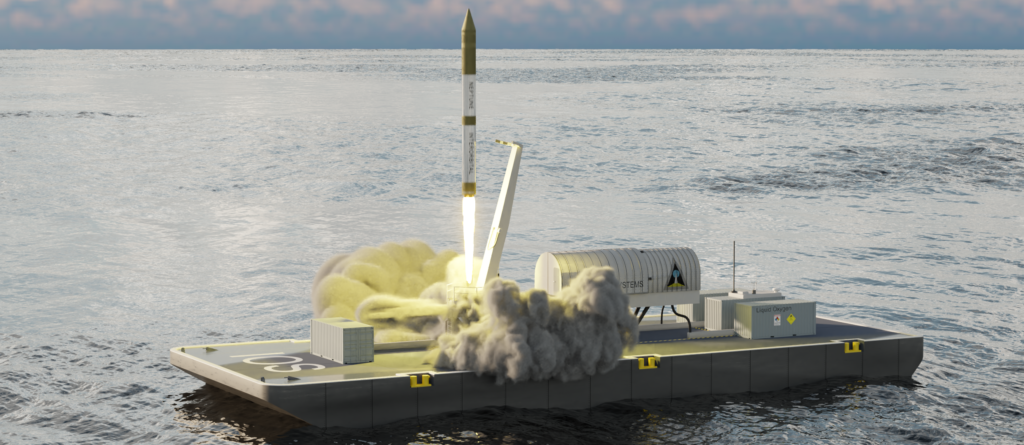

TRITON_4500 Launch Vehicle
Interorbital Systems
Medium-lift two-stage orbital launch vehicle delivering up to 4,500 kg to 500-km polar orbit at $12M per dedicated launch.
Technical specifications
- Vehicle class
- Medium-lift orbital
- Stages
- 2
- Payload to 500 km polar orbit
- 4,500 kg
- Dedicated launch price
- $12,000,000
- Price per kg to orbit
- $2,667/kg
- Primary orbit
- 500 km polar circular
- Propellant
- WFNA + turpentine
- Feed system
- Pressure-fed
- Engine type
- Ablatively-cooled filament-wound composite
- Launch platform
- Land or ocean platform
About
The TRITON_4500 is Interorbital Systems medium-lift orbital launch vehicle, scaling the NEPTUNE platform to significantly larger payloads via clustered Common Propulsion Modules. It uses WFNA and turpentine propellants with ablatively-cooled filament-wound composite engines, all storable and pressure-fed for simple ground operations.
The TRITON_4500 delivers up to 4,500 kg to a 500-km polar circular orbit and can accommodate larger payloads to near-equatorial orbits. It launches from both land and ocean platforms. At $12 million per dedicated launch ($2,667/kg), it targets medium small satellite constellation and government missions. A TRITON HEAVY cluster variant is also in development.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
