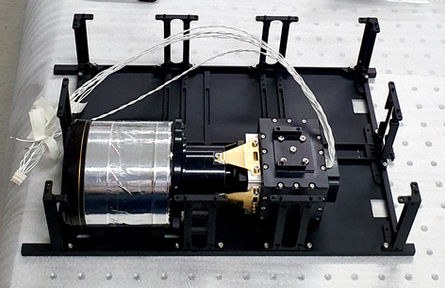

KSOI-90 Optical Imager (90 mm)
Kairo Space
90 mm aperture CubeSat optical imager providing high-resolution visible-band earth observation imagery.
Typed specifications57 values
Discloses 11 of 14 fields engineers filter by in this category (category median 4).
- Ground sample distance (GSD)
- 5 m PAN @600 km · datasheet p.1
- Mass
- 1 400 g datasheet p.1 1 400 g +/- 100 g
- Envelope (L×W×H)
- Ø101 x 243 mm datasheet p.1 D101 x 243 printed as O101 x 243 mm (diameter x length)
- Swath width
- 81.9 km @600 km · datasheet p.1 81.9 km 600 km
- Sensor resolution
- 4096 × 3072 pixels datasheet p.1 12.58 Mpx 4096 × 3072 px; as stated: «4096 × 3072 pixels»
- Spectral bands
- 6 Up to 6 (RGB, Red Edge, NIR, PAN) · datasheet p.1 6 max · up to 6: RGB, Red Edge, NIR, PAN
- Supply voltage
- 5 V nom. · datasheet p.1 5 V nom. · 5V DC +/- 150 mV
- Power consumption
- 8 W Peak · datasheet p.1
- Data interface
- RS-422 datasheet p.1 CAN control | RS-232 control interface | UART control interface (default) | CAN data and control interface +7
- Operating temperature
- -60–60 °C vacuum · datasheet p.1
- Radiation tolerance (TID)
- 25 krad datasheet p.1 25 krad tested beyond, without shielding, 60Co source
- Design lifetime
- 3 years datasheet p.1 3 years in LEO
- TRL
- 8 datasheet p.1
- Export status
- ITAR-free ITAR restriction / Export control: None · datasheet p.1
- Camera type
- RGB datasheet p.1 panchromatic PAN 400-900 nm | multispectral Up to 6 (RGB, Red Edge, NIR, PAN) | multispectral up to 6 bands: RGB, Red Edge, NIR, PAN | NIR
- Reference altitude
- 600 km GSD and swath reference altitude · datasheet p.1
- Field of view
- 1.6 ° across-track; along-track 1.2 deg · datasheet p.1
- Aperture
- 90 mm datasheet p.1
- Spectral range
- 400–900 nm PAN · datasheet p.1
- Focal length
- 500 mm datasheet p.1
- Flight heritage
- TRL 8 datasheet p.1
- Satellite class
- CubeSat any CubeSat class larger than 6U · datasheet p.1
- Detector
- CMOS CMOS matrix · datasheet p.1
- Bit depth
- 12 bit Maximum pixel depth · datasheet p.1 8 bit min · data format Mono/RGB 8/10/12 bit | 12 bit max · maximum pixel depth
- F-number
- 5.55 f / 5.55 · datasheet p.1
- Sensor format (pixels)
- 4096 x 3072 datasheet p.1
- Pixel pitch
- 2.8 µm datasheet p.1
- SNR
- 250 min · > 250 · datasheet p.1
- Data interface speed
- 2 Mbps CAN · datasheet p.1 5 Mbps max · RS, up to
- On-board compression
- lossless (CCSDS 122 / JPEG-LS) CCSDS 122.0-B-2 Lossless · datasheet p.1 other CCSDS 122.0-B-2 Lossy
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Aperture
- 90 mm
- Band
- Visible
- Compatible platform
- 6U CubeSat and larger
- Datasheet
- Available
- GSD
- 5 m PAN @600 km
- Storage capacity
- 512 Gigabyte
- Focal length
- 500 mm
- F number
- f / 5.55
- Field of view
- 1.6° (across-track); 1.2° (along-track)
- Mass
- 1.4 kg ± (100 g)
- Dimensions
- Ø101 x 243 mm
- Power consumption
- Peak: 8 W
- Data interface
- RS422 / RS485 / CAN
- Operating temperature
- -60 °C ~ +60 °C , vacuum
- Lifetime
- 3 years in LEO
- Resolution
- 4096 × 3072 pixels
- Maximum pixel depth
- 12 bit
About
The KSOI-90 is a 90 mm aperture optical imaging payload from Kairo Space, offering higher ground sampling distance than the KSOI-22 series. It targets medium-resolution earth observation applications including precision agriculture, infrastructure monitoring, disaster response, and maritime surveillance. The KSOI-90 is suitable for 6U and larger CubeSat platforms and features a technical datasheet with detailed optical, mechanical, and electrical specifications.
The imager is part of Kairo Space’s modular optical payload family, which allows satellite integrators to select the appropriate aperture for their ground sampling distance requirements while using common electrical and mechanical interfaces across the product line.
