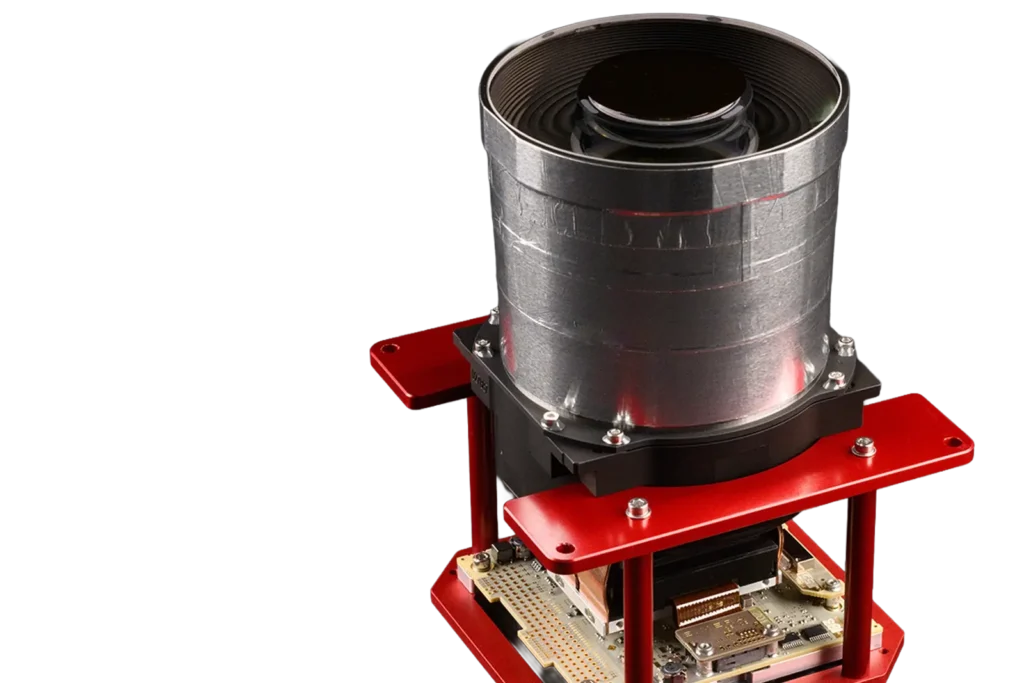

MultiScape100
Simera Sense
The MultiScape100 is a compact Earth Observation camera designed for small satellites, featuring 8 spectral bands in the VNIR range, high spatial resolution, and digital TDI capabilities.
Typed specifications3 values
Discloses 0 of 14 fields engineers filter by in this category (category median 4).
- Envelope (L×W×H)
- 5.5 µm product page
- Operating temperature
- -10 °C product page
- Focal length
- 580 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Focal length
- 580 mm
- Aperture
- 95 mm
- Full field of view
- 2.22° (across-track)
- Configuration
- Pushbroom
- Sensor technology
- CMOS global shutter
- Resolution
- 4096 pixels
- Pixel size
- 5.5 µm
- Pixel depth
- 12 bit
- Spectral filter
- - 1 Panchromatic band - 7 Band VNIR (450 nm to 900 nm)
- Digital tdi capabilities
- 1 to 32 stages, set individually per band
- Image reduction
- - Binning of RAW data - CCSDS 122.0-B-2 Lossy/Lossless (optional)
- Image preview
- Thumbnailing
- Control interface options
- - I²C - SPI - RS-422 - SpaceWire (ECSS-E-ST-50-12C)
- Data interface options
- - LVDS - SpaceWire (ECSS-E-ST-50-12C)
- Power supply
- 5VDC (±5%), 1.8 A
- Power consumption – idle mode
- 650 mA, 3.25 W
- Power consumption – imaging mode
- 1 400 mA, 7.00 W
- Volume
- 176.5 mm x 98.3 mm x 98.3 mm
- Mass
- 1.26 (±5%) kg
- Operating temperature
- -10°C to +50°C
- Radiation
- Fully functional to 15 kRad
About
The MultiScape100 is an Earth Observation camera specifically designed for space applications, offering high-resolution imaging within a compact 1.5U volume. It features 8 spectral bands in the Visible and Near-Infrared (VNIR) range, including one Panchromatic band and seven VNIR bands from 450 nm to 900 nm. The camera utilizes a pushbroom configuration with a CMOS global shutter sensor, providing 4096 pixels across track with a 5.5 µm pixel size and 12-bit pixel depth. A key feature is its digital TDI (Time Delay Integration) capabilities, allowing for 1 to 32 stages per band, which can be set individually. The system also supports image reduction through RAW data binning and optional CCSDS 122.0-B-2 Lossy/Lossless compression, as well as thumbnailing for image preview. It offers flexible control interface options including I²C, SPI, RS-422, and SpaceWire (ECSS-E-ST-50-12C), and data interface options such as LVDS and SpaceWire (ECSS-E-ST-50-12C). The MultiScape100 operates on a 5VDC power supply, consuming 3.25 W in idle mode and 7.00 W in imaging mode. It is designed to be fully functional up to 15 kRad radiation exposure and operates within a temperature range of -10°C to +50°C. Its compact size and robust design make it suitable for various Earth observation missions.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
