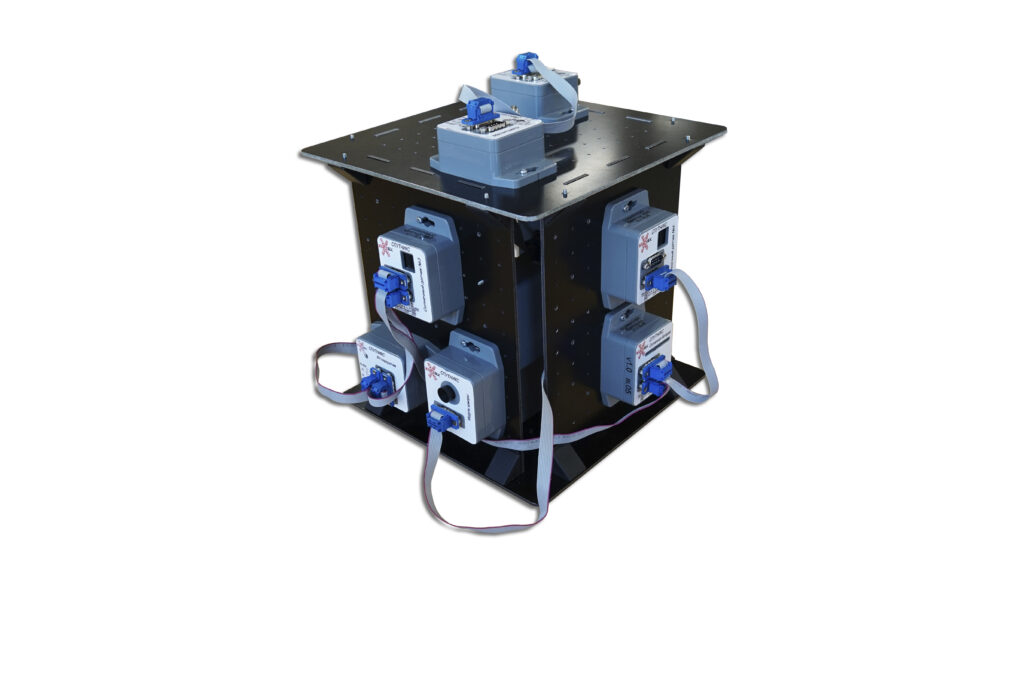

OrbiCraft-Pro Educational CubeSat Kit

Typed specifications32 values

Discloses 2 of 7 fields engineers filter by in this category (category median 3).

Data interface

CAN

doubled CAN2.0B satellite network, 1 Mbit/s, Unican 2.0 protocol · datasheet p.8 SPI extra payload interface traced directly to Raspberry module  |  Ethernet Raspberry interface available on PC/104 connector (SXC-MB-04)  |  I2C extra payload interface traced directly to Raspberry module  |  UART extra payload interface traced directly to Raspberry module  +1

Operating temperature

-40–85 °C

satellite temperature range of about -40..+85 degrees with PS… · datasheet p.18

Form factor

1U

basic 1U (SXC1 configurations) · datasheet p.6 3U enlarged 3U (SXC3 configurations)

Orbit

LEO

for use on low-Earth orbits · datasheet p.6

Payload envelope (L × W × H)

89x95x15 mm

1U: PC/104 compatible payload · datasheet p.9 89x95x200 mm 3U: up to

Regulated voltages for the payload

5 V

5V output up to 200 mA for simple payloads (SXC-MB-04) · datasheet p.15

Unregulated bus for the payload

8 V

system bus 8 V from solar/charger, 6.0-8.4 V from battery; PS… · datasheet p.18

Battery capacity

10 Wh

product page

Attitude control

3-axis stabilised

3U only: ADCS option (6 sun sensors, reaction wheels module w… · datasheet p.7 other B-DOT stabilisation with electromagnetic torquers (coils in s…

Payload data downlink rate

9.6 kbps

max · UHF transceiver SXC-UHF-02, GMSK, AX.25/FEC; 9600, 4800, 2400… · datasheet p.12

Radio band

UHF

SXC-UHF-02 transceiver, 434-438 MHz, 400-401 MHz · datasheet p.12

Subsystems included

ADCS

3-axis ADCS optional for 3U (ADCS option), included in Scient… · datasheet p.7 battery kit consists of PC/104 boards, cables, solar panels and batte…  |  harness kit includes cables  |  solar arrays kit includes solar panels (6 for 1U, 14 for 3U)  |  OBC main stack element: motherboard with Raspberry-Pi (SXC-MB-04)  +2

Rail standard

CDS rev.13

meets the requirements of CubeSat Design Specification (CDS) … · datasheet p.6

Payload board format

PC/104

set of separate PC/104 compliant PCB boards; PC/104 compatibl… · datasheet p.6

Deployables (as printed)

UHF antenna system; transceiver has auxiliary antenna deployment interface

datasheet p.11

Satellite class

CubeSat

CubeSat kit · datasheet p.6

Form factor, U (number)

1 U

basic 1U · datasheet p.6 3 U enlarged 3U
