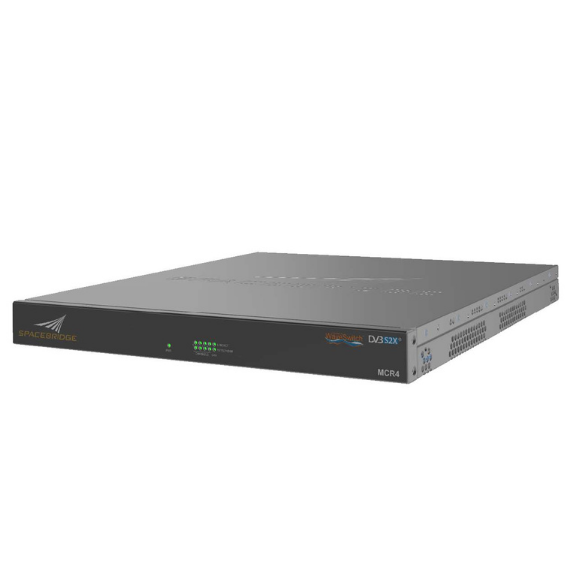

MCR4 High Performance SCPC Receiver
SpaceBridge Inc.
The MCR4 High Performance SCPC Receiver offers HUB side support for SpaceBridge ESTELLA WaveSwitchTM service, accommodating up to 4 simultaneous connections per unit.
Typed specifications63 values
Discloses 8 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- L RX · datasheet p.2 L single L-band input; terminal IFL input 950~2400 MHz
- Mass
- 5 440 g datasheet p.2 5 440 g 12 lb
- Frequency range
- 950 MHz min · satellite / band independent · datasheet p.2 2 400 MHz max · satellite / band independent | 950–2 400 MHz L-band input | 950–2 400 MHz RX satellite | 950–2 400 MHz terminal IFL input, satellite / band independent
- Envelope (L×W×H)
- 17” x 1.72” x 18” W x H x D (435 x 45 x 457) datasheet p.2 435 x 45 x 457 W x H x D; 17" x 1.72" x 18"; 19" rack mount
- Data rate
- 2 000 000 kbps RX, max · datasheet p.2 2 000 000 kbps max · RX, network interface, up to 2 Gbps
- RX sensitivity
- -5 dBm Max composite allowed over entire L-band · datasheet p.2 -20 dBm over 36MHz transponder, max | -65 dBm over 36MHz transponder, min | -65 dBm min · RX power over 36 MHz transponder | -5 dBm max · max composite allowed over entire L-band +2
- Modulation
- DVB-S2X, GSE encapsulation, QPSK up to 256APSK LDPC/BCH RX · datasheet p.2 QPSK QPSK up to 256APSK | 32APSK | 64APSK | 128APSK +10
- Supply voltage
- 100 V min · universal power supply · datasheet p.2 240 V max · universal power supply | 100–240 V universal power supply, 50~60 Hz, C14 inlet
- Power consumption
- 70 W Consumption · datasheet p.2
- Data interface
- Ethernet 2 x GbE user data ports · datasheet p.2 other CLI | other SNMP | other Telnet | Ethernet user data ports +1
- Operating temperature
- 0 °C min · datasheet p.2 50 °C max
- Function
- receiver 4 separate SCPC receivers over a single L-band input · datasheet p.2 receiver
- Link use
- ground terminal HUB side support for SpaceBridge ASAT WaveSwitch service · datasheet p.1
- Link protocol
- DVB-S2X DVB-S2X waveform, GSE encapsulation, ACM/VCM/CCM · datasheet p.2 DVB-S2X
- RF connector
- N N-type/50 Ohm option · datasheet p.2 F terminal IFL input F-type/75 Ohm | N
- Connector
- F-type/75 Ω IFL input · datasheet p.2 N-type/50 Ω IFL input, option | F-type/75 Ω Terminal IFL input | N-type/50 Ω Terminal IFL input (option)
- Duplex
- simplex receiver (DVB-S2X TX port only for active loopback testing) · datasheet p.1
- Channel coding (FEC)
- LDPC datasheet p.2 BCH
- Board format
- custom datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Return channels supported
- 4 x 125Msps
- Waveform
- DVB-S2X
- Transport
- Layer 2 or L3
- Channel rate
- 1Msps up to 125Msps
- Roll-off
- 5%, 10%, 20%, 25% or 35%
- Terminal IFL input
- F-type/75 Ω (N-type/50 Ω option)
- Frequency
- 950~2400 MHz
- Traffic interface
- 2 x GbE user data ports
- Data rate
- Up to 2 Gbps
- Form Factor
- 19” Rack mount
- Weight
- 12 lb (5.44 Kg)
- Supply voltage
- 100~240 V AC 50~60 Hz
- Power
- 70 W
- Operating temperature
- 32~122°F (0~50°C)
- Operating altitude
- Up to 9840 feet (3000 meters)
About
The MCR4 High Performance SCPC Receiver is designed to provide HUB side support for SpaceBridge’s ESTELLA WaveSwitchTM service, capable of handling up to 4 simultaneous connections per unit. This Multi-Channel Receiver (MCR)-4 from SpaceBridge features a rack mount for straightforward deployment and offers limitless user traffic support, making it suitable for mission-critical applications. It is engineered with powerful wire-speed packet processing capabilities and is designed for easy integration into any existing networking infrastructure.
