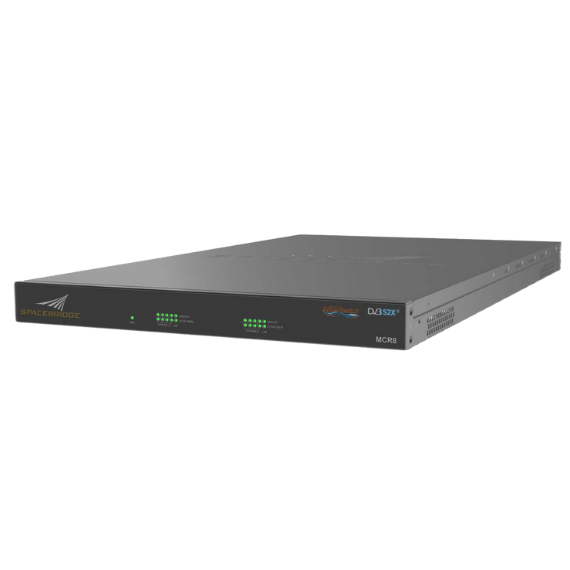

MCR8 High Performance SCPC Receiver
SpaceBridge Inc.
The MCR8 High Performance SCPC Receiver provides HUB side support for SpaceBridge ESTELLA WaveSwitchTM service, supporting up to 8 simultaneous connections per unit.
Typed specifications43 values
Discloses 8 of 13 fields engineers filter by in this category (category median 3).
- Frequency band
- L RX · datasheet p.2 L single L-band input; terminal IFL input 950~2400 MHz
- Mass
- 10 900 g datasheet p.2 10 900 g 24 lb
- Frequency range
- 950 MHz product page 950–2 400 MHz RX | 950–2 400 MHz terminal IFL input, satellite / band independent
- Envelope (L×W×H)
- 17” x 1.72” x 29” W x H x D (435 x 45 x 737 mm) datasheet p.2 435 x 45 x 737 W x H x D; 17" x 1.72" x 29"; 19" rack mount
- Data rate
- 2 000 000 kbps RX · datasheet p.2 2 000 000 kbps max · RX, network interface, up to 2 Gbps
- RX sensitivity
- -5 dBm Max composite allowed over entire L-band · datasheet p.2 -65 dBm min · RX power over 36 MHz transponder | -5 dBm max · max composite allowed over entire L-band | -20 dBm max · RX power over 36 MHz transponder
- Modulation
- DVB-S2X, GSE encapsulation, QPSK up to 256APSK LDPC/BCH datasheet p.2 QPSK QPSK up to 256APSK | 256APSK QPSK up to 256APSK | 16APSK | 32APSK +3
- Supply voltage
- 100–240 V universal power supply, 50~60 Hz, C14 inlet · datasheet p.2
- Power consumption
- 120 W Consumption · datasheet p.2
- Data interface
- Ethernet 2 x GbE user data ports · datasheet p.2 Ethernet GbE user data ports
- Operating temperature
- 0–50 °C operating conditions, 32~122 F · datasheet p.2
- Function
- receiver 8 separate SCPC receivers over a single L-band input · datasheet p.2
- Link use
- ground terminal HUB side support for SpaceBridge ASAT WaveSwitch service · datasheet p.1
- Link protocol
- DVB-S2X DVB-S2X waveform, GSE encapsulation, ACM/VCM/CCM · datasheet p.2
- RF connector
- other F-type · datasheet p.2 N N-type/50 Ohm option | F RX | N RX option | F terminal IFL input F-type/75 Ohm
- Connector
- F-type/75 Ω datasheet p.2 N-type/50 Ω option
- Duplex
- simplex receiver (DVB-S2X TX port only for active loopback testing) · datasheet p.1
- Channel coding (FEC)
- LDPC datasheet p.2 BCH
- Channel bandwidth
- 1 000 kHz up to · datasheet p.2 125 000 kHz up to
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Channel rate
- 1Msps up to 125Msps
- Roll-off
- 5%, 10%, 20%, 25% or 35%
- RX power
- -5 dBm
- Frequency
- 950~2400 MHz
- Data rate
- Up to 2 Gbps
- Dimensions
- 17” x 1.72” x 29” (435 x 45 x 737 mm)
- Mass
- 24 lb (10.9 Kg)
- Supply voltage
- 100~240 V AC
- Power
- 120 W
- Operating temperature
- 0~50°C
About
The MCR8 High Performance SCPC Receiver is designed to provide HUB side support for SpaceBridge’s ESTELLA WaveSwitchTM service. Each unit is capable of handling up to 8 simultaneous connections. This Multi-Channel Receiver (MCR)-8 features a rack mount for easy deployment and offers limitless user traffic support, making it suitable for mission-critical applications. It is engineered for powerful wire-speed packet processing and allows for easy integration into any existing networking infrastructure.
